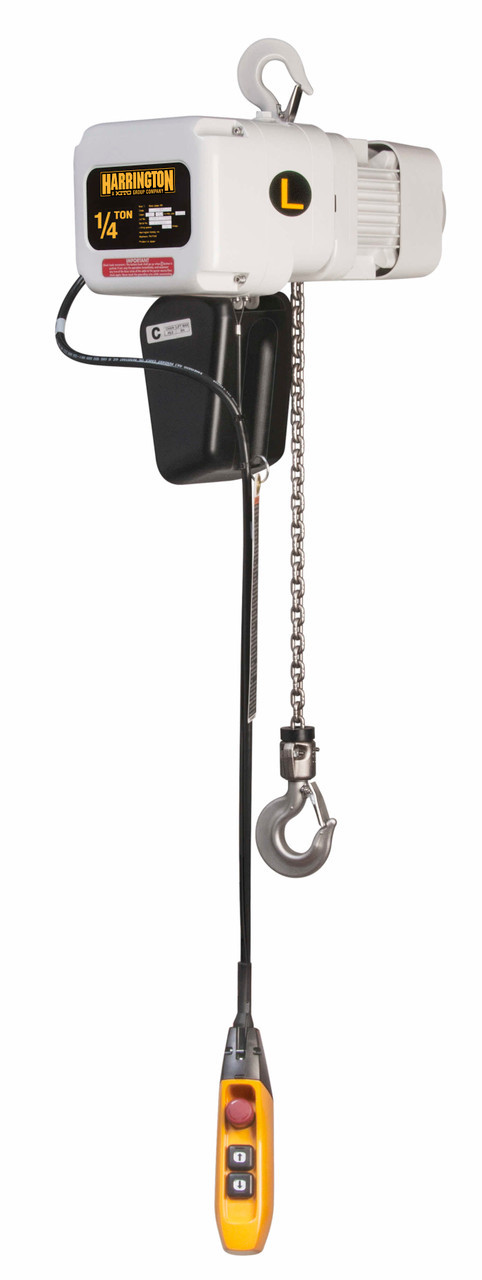

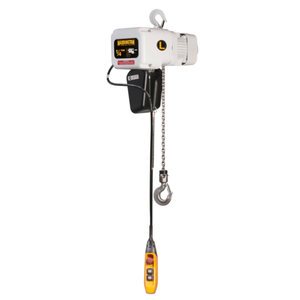

NER-FG Food Grade Electric Chain Hoist 20' Lift-Capacity 1/4 Tons NER003L-FG Electric Chain Trolley HARRINGTON

Product Overview

The NER-FG Food Grade Electric Chain Hoist, model NER003L-FG-20 from HARRINGTON, sets a new standard in the food processing and packaging industry. This innovative hoist combines advanced engineering with stringent food safety compliance, ensuring secure handling of loads while maintaining the purity of your products. With a lift capacity of up to 20 feet and a robust weight capacity ranging from 1/4 to 2 tons, it efficiently addresses the challenges of lifting heavy items in food-grade applications without the risk of contamination.

Designed for optimal performance, the NER003L-FG-20 operates seamlessly, providing smooth and quiet lifts. This feature not only enhances the working environment but also boosts productivity, allowing your team to focus on the task at hand without distraction. Say goodbye to the physical strain and hazards associated with manual lifting; this electric chain hoist effortlessly takes the load off your workforce.

Constructed with the highest quality materials, the NER003L-FG-20 guarantees durability and reliability, essential for any demanding production line. Its user-friendly design minimizes operational complexity, making it accessible for all staff members to use safely and effectively. The precision control enhances the ability to manage delicate tasks where care is paramount, ensuring that every product is handled with the utmost attention.

Investing in the NER003L-FG-20 means investing in a tool that will elevate your operational standards and efficiency. This top-tier electric chain hoist is more than just a piece of equipment; it‚ a vital addition that drives success in your food processing and packaging endeavors. Elevate your business and streamline your workflow with the unparalleled performance of the HARRINGTON NER-FG Food Grade Electric Chain Hoist.

Product Specifications

.

Part Number:

NER003L-FG-20

Color:

White

Hoist Lift:

20 ft

Product:

Electric Food Grade Chain Hoist, 500 lb, 20 ft, Hook Mounted-No Trolley, White=Hoist Mount=Hook Mounted-No Trolley

Includes:

Chain Container, Quick Disconnect Plugs On Pendant and Power Cord

Lift Speed:

15 fpm

Housing Width:

8 1/2 in

Manufacturers Warranty Length:

10 yr Brake Warranty, 3 yr

Housing Depth:

13 13/16 in

Housing Length:

13 13/16 in

For Minimum Beam Flange Width:

Not Applicable

For Maximum Beam Flange Width:

Not Applicable

For Maximum Beam Height:

Not Applicable

MFR Warranty Length:

1 yr

Body Width:

8 1/2 in

Body Depth:

13 13/16 in

For Minimum Beam Height:

Not Applicable

Body Length:

13 13/16 in

Minimum Radius Curve:

Not Applicable

Maximum Lifting Length:

20 ft

Controller Cord Length:

16 ft

Trolley Wheel Diameter:

Not Applicable

Lifting Hook Opening Width:

13 13/16 in

Minimum Retracted Length:

14 19/32 in

Load Capacity:

500 lb

Minimum Between Hooks:

13 13/16 in

Motor HP:

0.75 hp

Phase:

3

Standards:

ASME B30.16, ASME HST-1M, FDA Approved, RoHS Compliant

Voltage:

230/460V

Fits Brand:

Harrington Hoists Inc

Lubrication:

Food Grade Oil

Item:

Electric Food Grade Chain Hoist

Reeving:

1

Thermal Protection:

Yes

Control Cord:

16 ft

Finish:

Epoxy Paint

Amps @ Low Volts:

3.4 A

Number of Speeds:

1

Trolley Configuration:

Hook Mounted-No Trolley

Trolley Speed:

Not Applicable

Lifting Hook Material:

Carbon Steel

Includes Clutch:

Clutch Included

Overload Protection Included:

Yes

Brake Type:

DC Current

Maximum Lift Speed:

Not Applicable

Included Components:

Chain Container, Pendant, Quick Disconnect Plugs on Pendant, Safety Latch Hook

Fixed Lift Speed:

15 fpm

Clutch Type:

Friction

Minimum Lift Speed:

Not Applicable

Pendant IP Rating:

IP65

Chain Finish:

Epoxy Painted

Controls:

Push Button Pendant=Mount Type=Hook Mounted-No Trolley

Starts and Stops per Hour:

360

Duty Classification:

H4

Maximum Pulling Capacity:

Not Applicable

Number of Reeves:

1

Motor Horsepower:

3/4 hp

Headroom:

13 13/16 in

Includes Brake:

Brake Included

Lifting Hook Type:

Swivel Hook with Safety Latch

Maximum Lifting Capacity:

500 lb

Current at Minimum Voltage:

3.4 A

Trolley Wheel Material:

Not Applicable

Current at Maximum Voltage:

3.4 A

Body Finish:

Epoxy Painted

Number of Load Chains:

1

Trolley IP Rating:

Not Applicable

Programmable:

Non-Programmable
