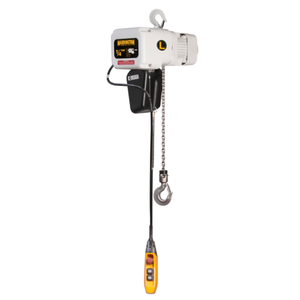

NER-FG Food Grade Electric Chain Hoist 15' Lift-Capacity 1/4 Tons NER003L-FG Electric Chain Trolley HARRINGTON

Product Overview

The NER003L-FG-15 HARRINGTON NER-FG Food Grade Electric Chain Hoist is a superior choice for any food processing or packaging operation. With its sturdy construction and strong lift Capacity 1/4 Tons, this hoist is designed to handle even the most demanding tasks in the food industry.One of the standout features of this electric chain hoist is its food grade construction. This means that all components are made from materials that meet stringent food safety regulations, ensuring cleanliness and hygiene. This makes it the ideal solution for use in food processing plants, where maintaining sanitary conditions is of utmost importance.When it comes to performance, the NER003L-FG-15 does not disappoint. Its durable and reliable design guarantees consistent and dependable operation. You can rely on this hoist to perform flawlessly every time you need it. Whether you are lifting heavy loads or delicate food products, this hoist is up to the task.The 15-foot lift height adds versatility to this hoist, allowing you to easily maneuver goods within your facility. With this generous lift capacity, you have the flexibility to lift objects to elevated heights, making it a valuable tool in your operations.Furthermore, investing in the NER003L-FG-15 hoist provides you with not only a top-of-the-line product but also peace of mind. You can trust that this hoist is built to last and will deliver the efficiency you need to keep your operations running smoothly. Its high-quality construction ensures minimal downtime and maximum productivity, saving you both time and money.In conclusion, the NER003L-FG-15 HARRINGTON NER-FG Food Grade Electric Chain Hoist is the perfect solution for anyone in the food processing or packaging industry. With its exceptional lift Capacity, food grade construction, and reliable performance, this hoist is guaranteed to meet and exceed your expectations. Invest in this top-of-the-line hoist and experience the efficiency and peace of mind it brings to your operations.

Product Specifications

.

Part Number:

NER003L-FG-15

Color:

White

Hoist Lift:

15 ft

Product:

Electric Food Grade Chain Hoist, 500 lb, 15 ft, Hook Mounted-No Trolley, White=Hoist Mount=Hook Mounted-No Trolley

Includes:

Chain Container, Quick Disconnect Plugs On Pendant and Power Cord

Lift Speed:

15 fpm

Housing Width:

8 1/2 in

Manufacturers Warranty Length:

10 yr Brake Warranty, 3 yr

Housing Depth:

13 13/16 in

Housing Length:

13 13/16 in

For Minimum Beam Flange Width:

Not Applicable

For Maximum Beam Flange Width:

Not Applicable

For Maximum Beam Height:

Not Applicable

MFR Warranty Length:

1 yr

Body Width:

8 1/2 in

Body Depth:

13 13/16 in

For Minimum Beam Height:

Not Applicable

Body Length:

13 13/16 in

Minimum Radius Curve:

Not Applicable

Maximum Lifting Length:

15 ft

Controller Cord Length:

11 ft

Trolley Wheel Diameter:

Not Applicable

Lifting Hook Opening Width:

13 13/16 in

Minimum Retracted Length:

14 19/32 in

Load Capacity:

500 lb

Minimum Between Hooks:

13 13/16 in

Motor HP:

0.75 hp

Phase:

3

Standards:

ASME B30.16, ASME HST-1M, FDA Approved, RoHS Compliant

Voltage:

230/460V

Fits Brand:

Harrington Hoists Inc

Lubrication:

Food Grade Oil

Reeving:

1

Thermal Protection:

Yes

Control Cord:

11 ft

Finish:

Epoxy Paint

Amps @ Low Volts:

3.4 A

Number of Speeds:

1

Trolley Configuration:

Hook Mounted-No Trolley

Trolley Speed:

Not Applicable

Lifting Hook Material:

Carbon Steel

Includes Clutch:

Clutch Included

Overload Protection Included:

Yes

Brake Type:

DC Current

Maximum Lift Speed:

Not Applicable

Included Components:

Chain Container, Pendant, Quick Disconnect Plugs on Pendant, Safety Latch Hook

Fixed Lift Speed:

15 fpm

Clutch Type:

Friction

Minimum Lift Speed:

Not Applicable

Pendant IP Rating:

IP65

Chain Finish:

Epoxy Painted

Controls:

Programmable by Internal Controls=Mount Type=Hook Mounted-No Trolley

Starts and Stops per Hour:

360

Duty Classification:

H4

Maximum Pulling Capacity:

Not Applicable

Number of Reeves:

1

Motor Horsepower:

3/4 hp

Headroom:

13 13/16 in

Includes Brake:

Brake Included

Lifting Hook Type:

Swivel Hook with Safety Latch

Maximum Lifting Capacity:

500 lb

Current at Minimum Voltage:

3.4 A

Trolley Wheel Material:

Not Applicable

Current at Maximum Voltage:

3.4 A

Body Finish:

Epoxy Painted

Number of Load Chains:

1

Trolley IP Rating:

Not Applicable

Programmable:

Non-Programmable
