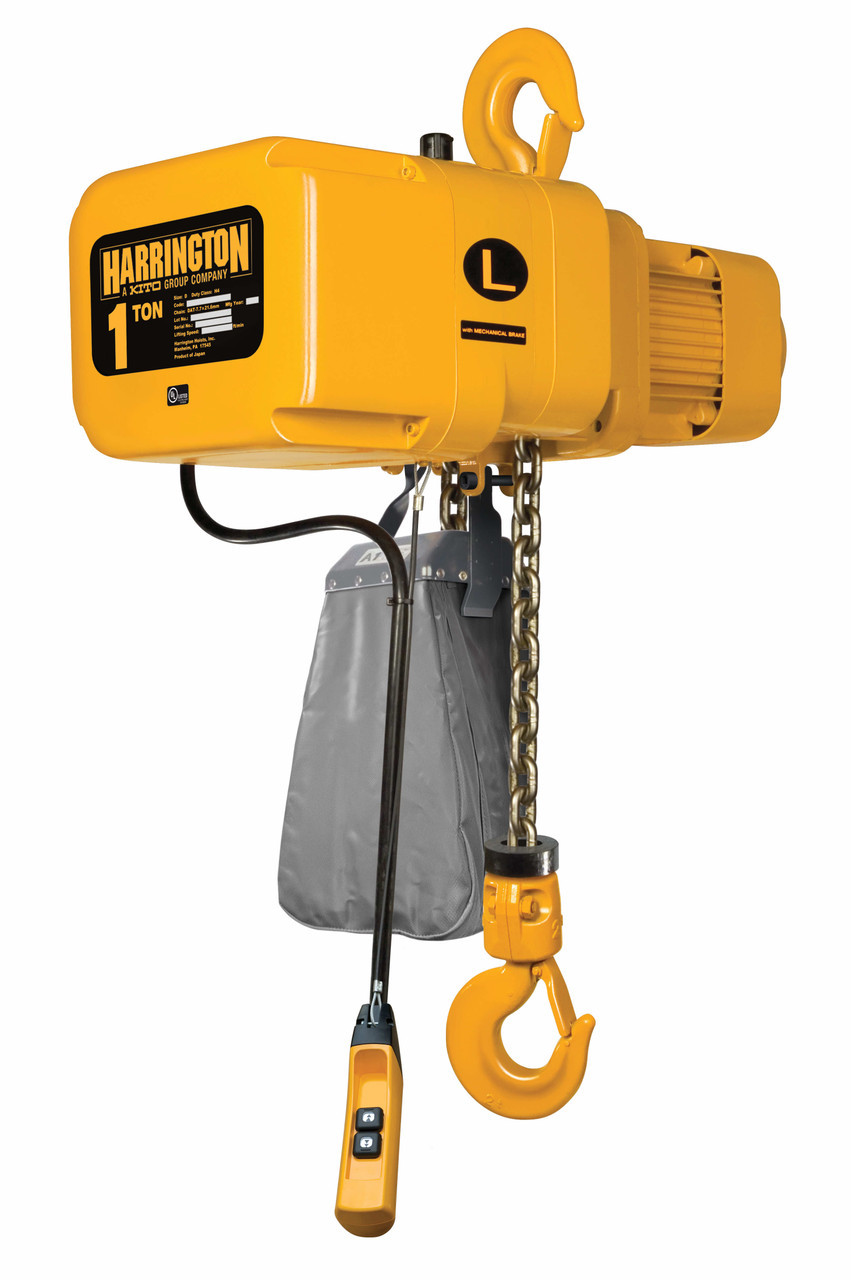

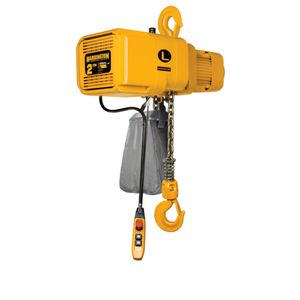

NER Electric Chain Hoist 20' Lift-Capacity 1/4 Tons NER003H Electric Chain Hoist HARRINGTON

Product Overview

Experience the utmost power and performance with the NER003H-20 HARRINGTON NER Electric Chain Hoist. Designed to withstand even the harshest conditions, this reliable and durable hoist is built to tackle the toughest jobs with ease. With a lifting capacity ranging from 1/8 to 20 tons, it offers the versatility to handle a wide range of industrial applications. Featuring a 20-foot lift, this electric chain hoist ensures ample reach, allowing you to effortlessly handle heavy loads in various work environments. Whether you're working in construction, manufacturing, or other industrial settings, the NER003H-20 is equipped to elevate your productivity to new heights.Harrington is renowned for its exceptional quality and performance, and the NER003H Electric Chain Hoist is no exception. With its unrivaled strength and efficiency, this hoist will surpass your expectations and deliver unparalleled results. No matter the weight or difficulty of the job at hand, you can rely on the NER003H to get it done efficiently and reliably.Investing in the NER003H Electric Chain Hoist means investing in productivity and peace of mind. Its robust construction ensures long-lasting durability, reducing downtime and maintenance costs. The high-quality materials used in its production make it resistant to wear and tear, allowing for uninterrupted performance.In addition to its exceptional power and reliability, the NER003H-20 is also designed with user-friendliness in mind. It features easy-to-use controls and a compact design that allows for easy installation and operation. This hoist is also equipped with safety features such as overload protection and a friction clutch, ensuring the safety of both the operator and the load.Experience the difference with the NER003H-20 HARRINGTON NER Electric Chain Hoist. Harness the strength and efficiency that comes with the Harrington name and take your industrial operations to new heights. With its unmatched performance, durability, and versatility, this hoist is a must-have for any heavy-duty lifting job.

Product Specifications

.

Part Number:

NER003H-20

Color:

Yellow

Hoist Lift:

20 ft

Product:

Electric Chain Hoist, 500 lb, 20 ft, Hook Mounted-No Trolley, Yellow=Hoist Mount=Hook Mounted-No Trolley

Includes:

Chain Container, Quick Disconnect Plugs On Pendant and Power Cords, 10 yr Brake Warranty

Lift Speed:

53 fpm

Housing Width:

12 19/32 in

Manufacturers Warranty Length:

10 yr Brake Warranty, 3 yr

Housing Depth:

6 5/8 in

Housing Length:

18 13/16 in

For Minimum Beam Flange Width:

Not Applicable

For Maximum Beam Flange Width:

Not Applicable

For Maximum Beam Height:

Not Applicable

MFR Warranty Length:

1 yr

Body Width:

12 19/32 in

Body Depth:

6 5/8 in

For Minimum Beam Height:

Not Applicable

Body Length:

18 13/16 in

Minimum Radius Curve:

Not Applicable

Maximum Lifting Length:

20 ft

Controller Cord Length:

8 3/16 ft

Trolley Wheel Diameter:

Not Applicable

Lifting Hook Opening Width:

1 3/32 in

Minimum Retracted Length:

14 19/32 in

Load Capacity:

500 lb

Minimum Between Hooks:

13 13/16 in

Motor HP:

1.2 hp

Phase:

3

Standards:

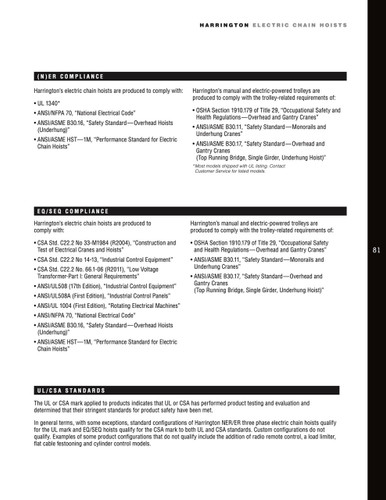

ANSI/ASME B30.16, ANSI/ASME HST-1M, ANSI/NFPA 70, UL 1340

Voltage:

208/230/460V

Fits Brand:

Harrington Hoists Inc

Lubrication:

Oil Bath

Reeving:

1

Thermal Protection:

Yes

Control:

110V Push Button Control Pendant

Control Cord:

16 ft

Amps @ Low Volts:

4.8 A

Number of Speeds:

1

Trolley Configuration:

Hook Mounted

Trolley Speed:

Not Applicable

Features:

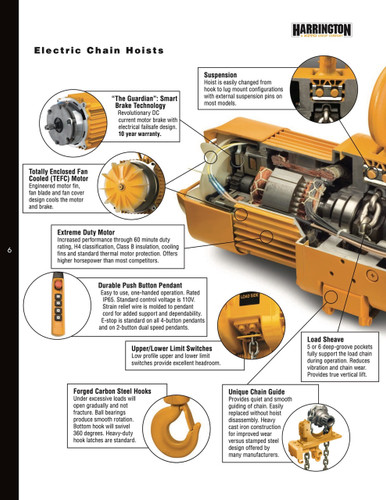

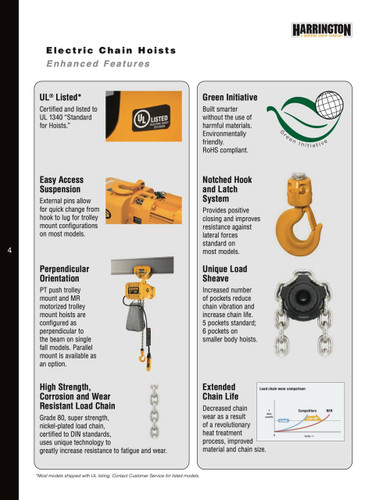

Count Hour Meter, Dual Speed VFD, Easy Access Suspension, Extreme Duty Motor, Secondary Brake, Smart Brake Technology, State-Of-The-Art Chain Technology, Unique Smart Limit Option

Lifting Hook Material:

Carbon Steel

Includes Clutch:

Clutch Included

Overload Protection Included:

Yes

Brake Type:

DC Current

Chain Grade:

Grade 80

Maximum Lift Speed:

Not Applicable

Included Components:

Chain Container, Pendant, Quick Disconnect Plugs on Pendant, Safety Latch Hook

Fixed Lift Speed:

53 fpm

Clutch Type:

Friction Clutch

Minimum Lift Speed:

Not Applicable

Pendant IP Rating:

IP65

Chain Finish:

Nickel Plated

Controls:

Push Button Pendant=Mount Type=Hook Mounted-No Trolley

Starts and Stops per Hour:

360

Duty Classification:

H4

Maximum Pulling Capacity:

Not Applicable

Number of Reeves:

1

Motor Horsepower:

1 1/4 hp

Headroom:

14 19/32 in

Includes Brake:

Brake Included

For Outdoor Use:

Yes

Hoist IP Rating:

IP55

Lifting Hook Type:

Swivel Hook with Safety Latch

Maximum Lifting Capacity:

500 lb

Current at Minimum Voltage:

4.8 A

Trolley Wheel Material:

Not Applicable

Current at Maximum Voltage:

2.5 A

Body Finish:

Painted

Number of Load Chains:

1

Body Material:

Aluminum

Trolley IP Rating:

Not Applicable

Programmable:

Non-Programmable
