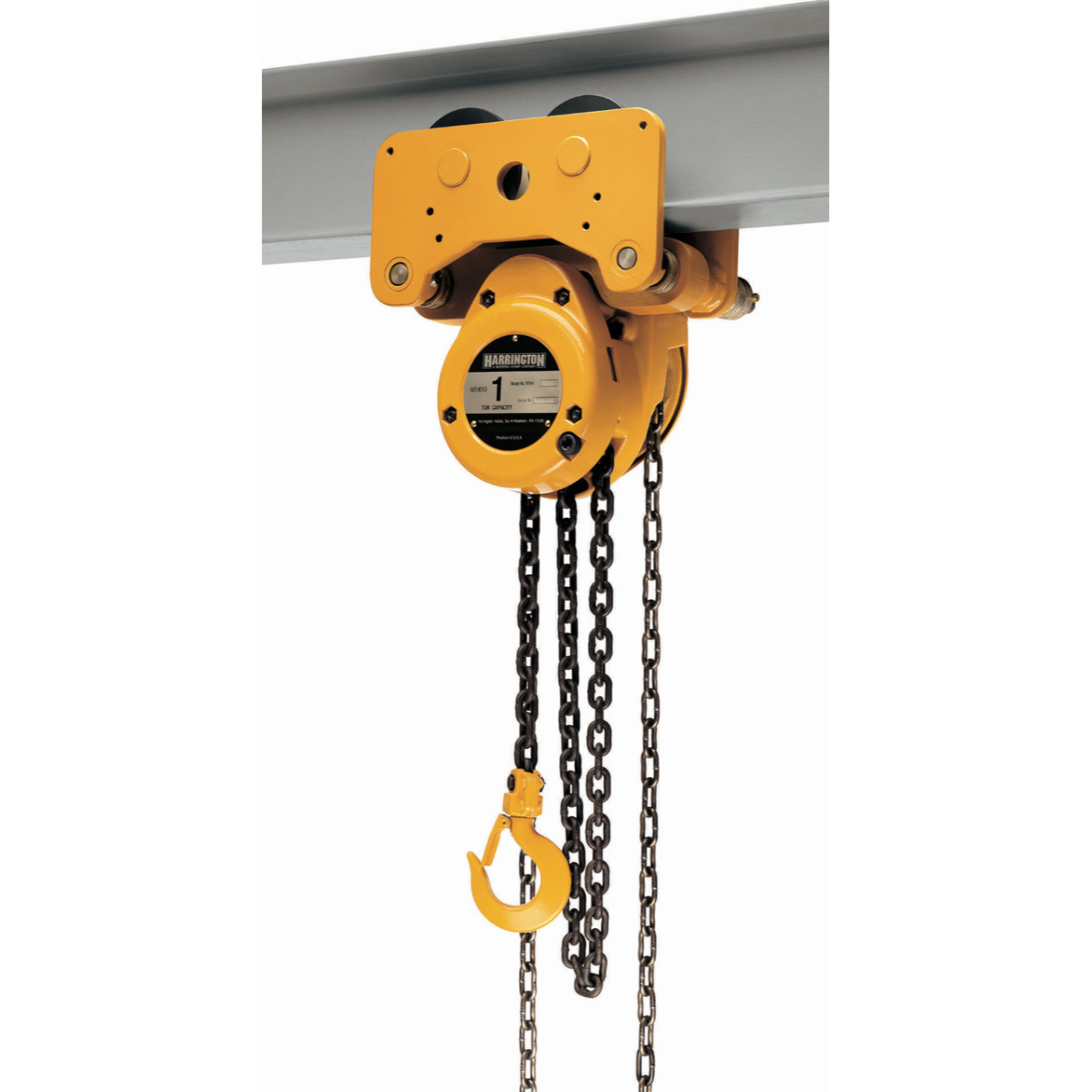

GNTH Navy Trolley Hoist ' Lift-Capacity 2 Ton Manual Hoist with Geared HARRINGTON

Product Overview

The GNTH Navy Trolley Hoist, model G-NTH020, is the ultimate lifting solution designed specifically for environments with limited headroom. With a robust lift capacity of 2 tons, this manual hoist expertly combines strength with compact engineering, making it an ideal choice for both professionals and DIY enthusiasts. The unique feature of a permanently attached trolley enhances mobility and makes it remarkably easy to maneuver, ensuring that heavy objects can be lifted and transported with precision.

This hoist's geared trolley mechanism ensures smooth operation, allowing for precise control over the load being lifted. Users will appreciate the effortless lifting and lowering capabilities that enhance productivity and safety in any workspace. Constructed from high-quality materials, the G-NTH020 is built to withstand the rigors of demanding tasks, ensuring reliability and longevity. Its durability makes it a worthwhile investment, designed to perform efficiently through years of service.

The clever compact design means that the G-NTH020 fits seamlessly into small workshops or areas where space is a premium, freeing users from the constraints of traditional bulky hoists. This versatility allows for effective utilization in various applications, from construction sites to home projects, catering to diverse lifting needs.

Experience the ease of operation and reliable performance that the GNTH Navy Trolley Hoist brings to the table. Whether lifting machinery, transporting building materials, or engaging in intricate DIY projects, the G-NTH020 stands out as a trustworthy partner. Elevate your lifting capabilities and embrace the innovation that this premium hoist offers, making every lifting task straightforward and efficient. Choose the G-NTH020 HARRINGTON GNTH Navy Trolley Hoist, and redefine your approach to lifting challenges.

Product Specifications

.

Load Capacity:

4,000 lb

Hoist Lift:

10 ft

Hoist Mount:

Geared Trolley

Hoist Overload Protection:

No

Pull to Lift Rated Load:

80 lb

Manufacturers Warranty Length:

1 yr

For Min Beam Flange Height:

4 11/16 in

Lifting Hook Opening Width:

1 13/32 in

Body Depth:

14 in

Body Width:

13 13/16 in

Chain Length:

11 ft

For Max Beam Flange Width:

5 31/32 in

Minimum Retracted Length:

16 1/2 in

For Min Beam Flange Width:

3 23/32 in

For Max Beam Flange Height:

Not Applicable

Maximum Lifting Length:

10 ft

Lever Length:

Not Applicable

Min Between Hooks:

16 1/2 in

Item:

Chain Hoist

Trolley Configuration:

Geared Trolley

Brake:

Weston Style Brake

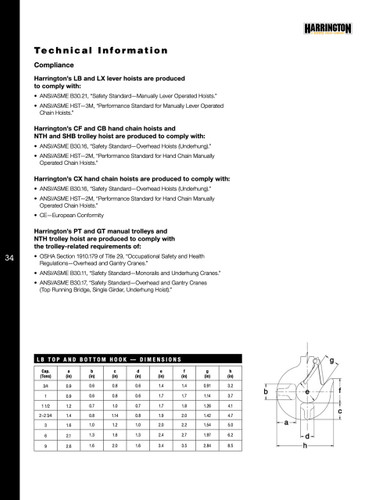

Standards:

ANSI/ASME B30.16, ANSI/ASME HST-2M

Color:

Yellow

Features:

Integral Trolley

Overload Protection Included:

No

Resistance Properties:

Abrasion Resistant, Corrosion Resistant, Moisture Resistant, Wear Resistant

Body Material:

Die-Cast Aluminum

Brake Type:

Weston Style

Chain Material:

Manganese Alloy

Chain Grade:

Grade 100

Mount Type:

Geared Trolley

Included Components:

Safety Latch Hooks

Operating Position:

Vertical

Lifting Hook Material:

Carbon Steel

Lifting Hook Type:

Hook with Safety Latch

Includes Brake:

Brake Included

Maximum Pulling Capacity:

Not Applicable

Power Source:

Manual

Headroom:

16 1/2 in

Number of Load Chains:

1

Number of Reeves:

2

Maximum Lifting Capacity:

4,000 lb

Includes Clutch:

Clutch Not Included
