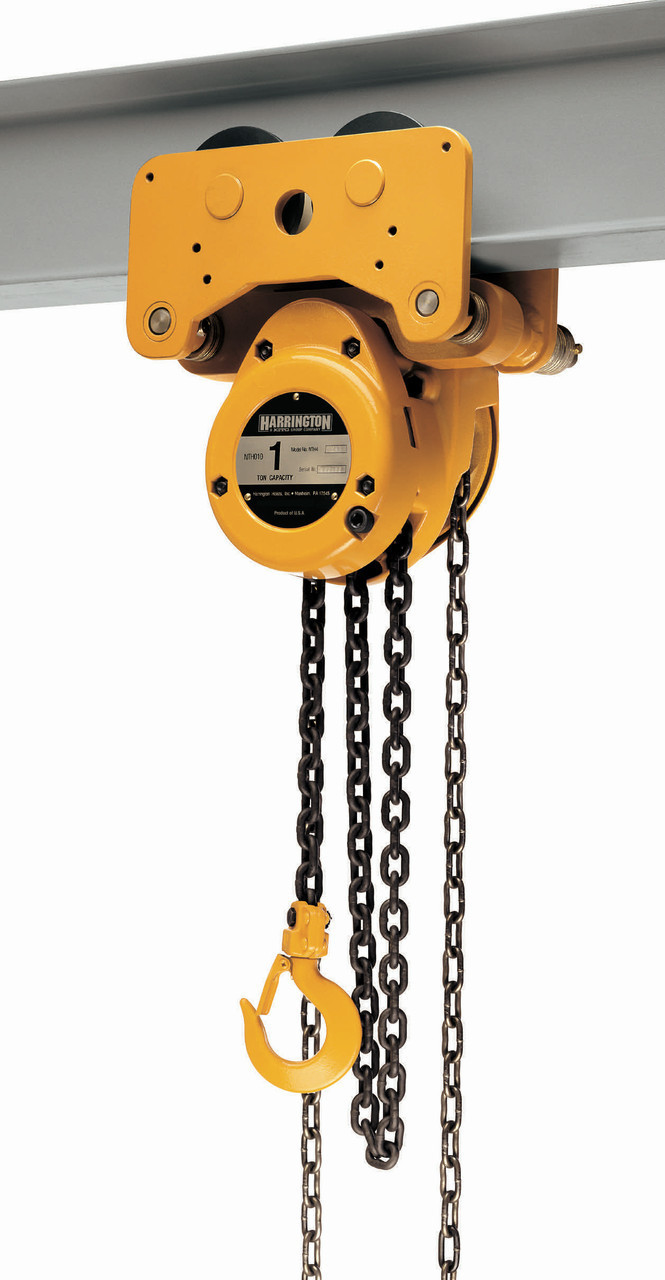

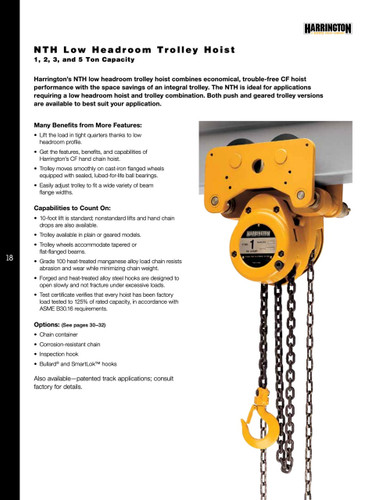

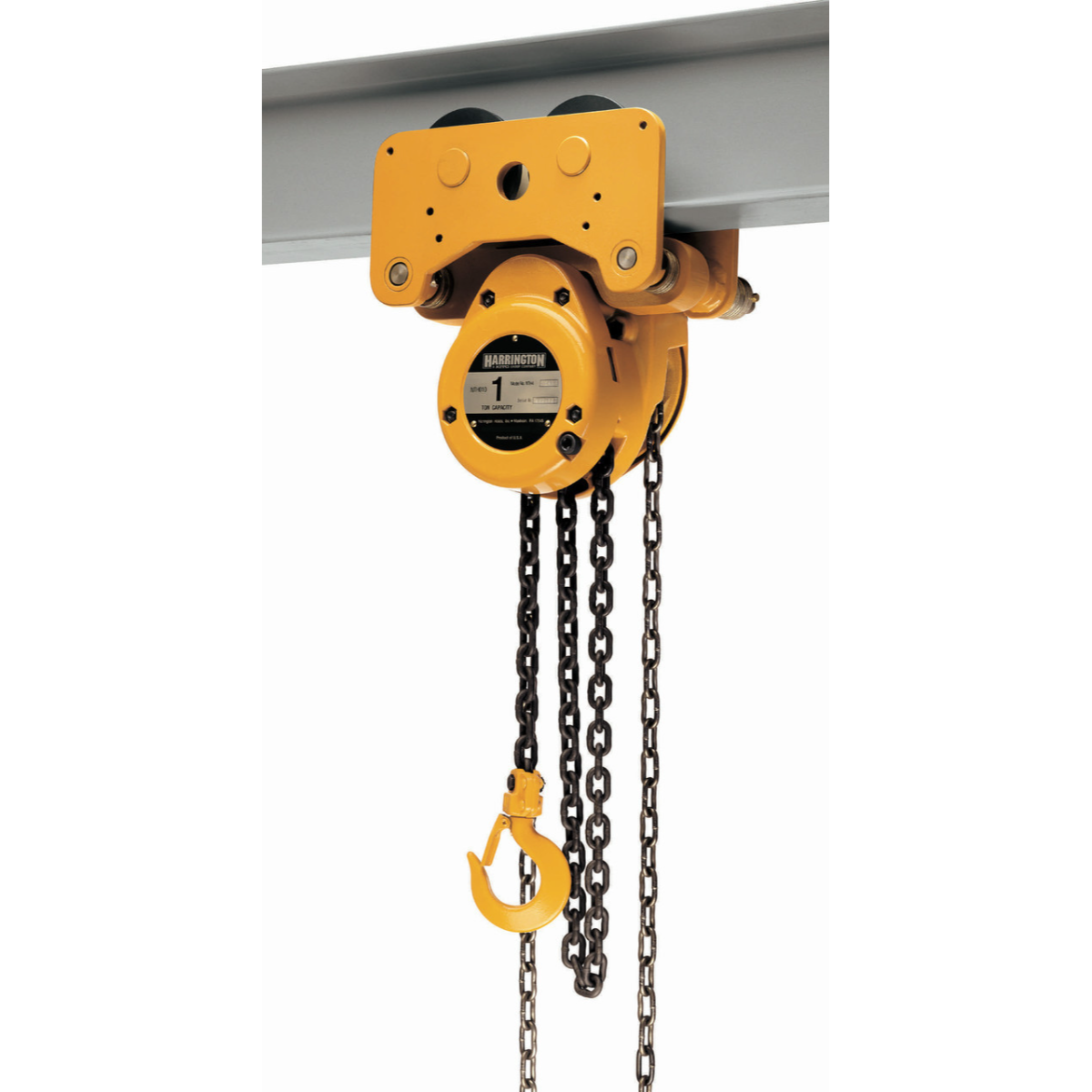

Harrington G-NTH Series Low-Headroom Trolley Hoist - 3 Ton - Geared Type

Write a Review
$3,660.92
$3,203.31
(You save $457.61 )
SKU: G-NTH030
Condition: New
Availability: Subject to Availability
Weight: 136.00 LBS
Shipping: Calculated at Checkout
Load Capacity: 5,000 - 9,999 lbs
Hoist Lift: 10 ft
Hoist Mount: Geared Trolley
Hoist Overload Protection: No
Pull to Lift Rated Load: 92 lb
Housing Length: 19 in
Housing Width: 15 1/2 in
Housing Depth: 14 1/2 in
Manufacturers Warranty Length: 1 yr
For Min Beam Flange Height: 5 in
Lifting Hook Opening Width: 1 11/16 in
Body Depth: 14 1/2 in
Body Width: 15 19/32 in
Chain Length: 11 ft
For Max Beam Flange Width: 6 1/4 in
Minimum Retracted Length: 19 in
For Min Beam Flange Width: 3 5/8 in
For Max Beam Flange Height: Not Applicable
Maximum Lifting Length: 10 ft
Lever Length: Not Applicable
Min Between Hooks: 23 1/4 in
Hook Opening: 1 45/64 in
Trolley Configuration: Geared Trolley

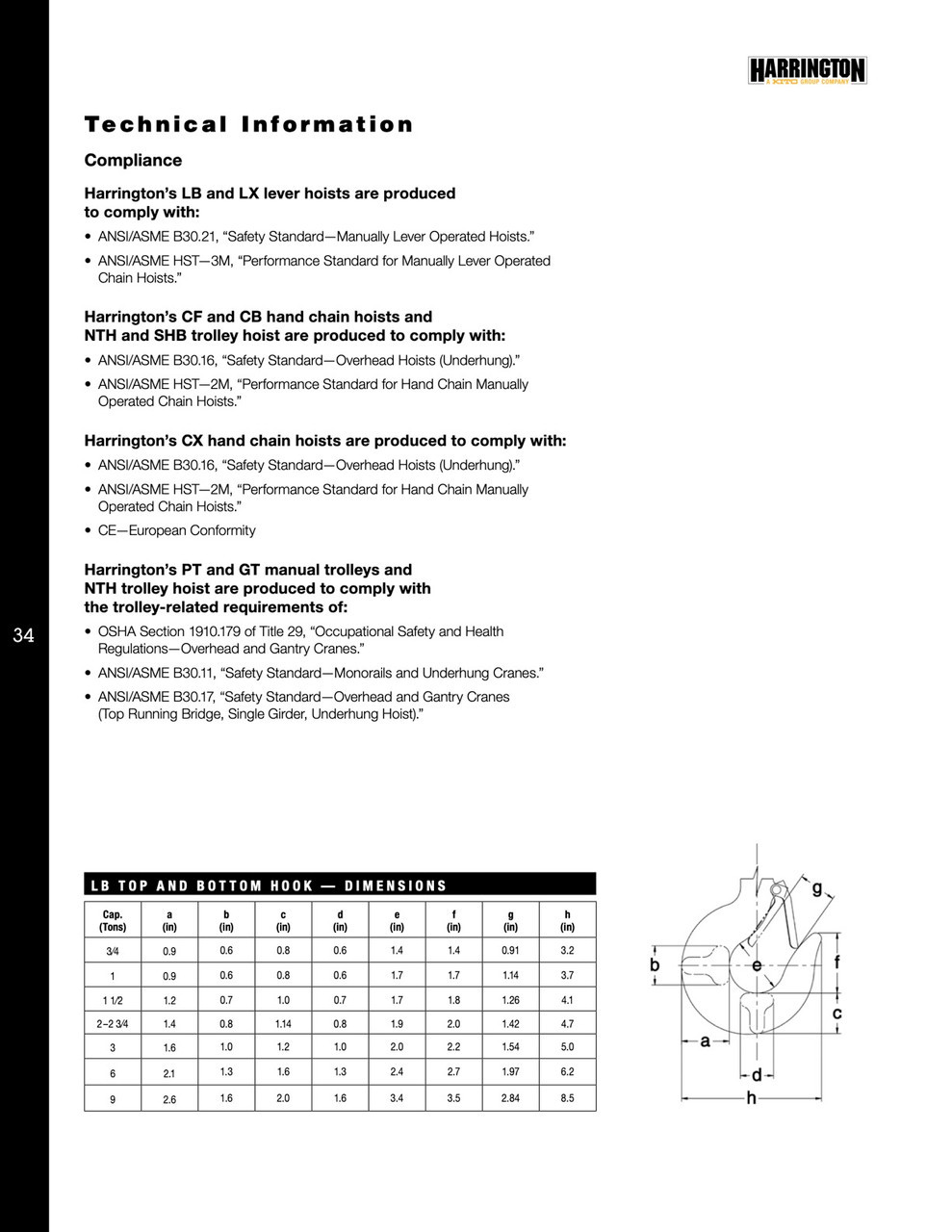

Standards: ANSI/ASME B30.16, ANSI/ASME HST-2M
Color: Yellow
Features: Integral Trolley
Overload Protection Included: No
Resistance Properties: Abrasion Resistant, Corrosion Resistant, Moisture Resistant, Wear Resistant
Body Material: Die-Cast Aluminum
Brake Type: Weston Style
Chain Material: Manganese Alloy
Chain Grade: Grade 100
Mount Type: Geared Trolley
Included Components: Safety Latch Hooks
Operating Position: Vertical
Lifting Hook Material: Carbon Steel
Lifting Hook Type: Hook with Safety Latch
Includes Brake: Brake Included
Maximum Pulling Capacity: Not Applicable
Power Source: Manual
Headroom: 19 in
Number of Load Chains: 1
Number of Reeves: 2
Maximum Lifting Capacity: 6,000 lb
Includes Clutch: Clutch Not Included
image-src: https://www.zoro.com/static/cms/product/large/Z1tCHylcpEx_.JPG
Capacity: 5,000 - 9,999 lbs
Lift: 10 ft
Adding to cart… The item has been added
Harrington G-NTH Series Low-Headroom Trolley Hoist - 3 Ton - Geared Type

Harrington G-NTH Series Low-Headroom Trolley Hoist - 3 Ton - Geared Type

$3,660.92
$3,203.31
(You save $457.61 )
The GNTH Navy Trolley Hoist offers exceptional lifting performance with its robust 3-ton capacity, perfect for heavy-duty tasks in various environments. Designed with efficiency and reliability in mind, this manual hoist features a permanently attached trolley that streamlines the installation process and enhances maneuverability in tight spaces. Its compact design makes it suitable for use in warehouses, manufacturing facilities, and any location where headroom is limited.

Built for durability, the GNTH hoist is constructed from high-quality materials that are resistant to wear and corrosion, ensuring it can handle the challenges of daily operations without compromising on performance. The economic CF hand chain hoist provides precise lifting control, allowing for smooth operation of heavy loads with minimal effort. This design not only promotes operational efficiency but also prioritizes the safety of your workers and the integrity of the materials being handled.

The trolley system is engineered to facilitate smooth movement along the hoist beam, making it simple to navigate loads from one point to another with ease. Whether you need to lift construction materials, machinery, or other heavy objects, the GNTH Navy Trolley Hoist is your dependable partner that simplifies those challenging tasks.

Incorporating the GNTH030 into your workflow means investing in a tool that promises longevity and consistent performance. Its rugged construction and thoughtful design features position it as an indispensable asset for your lifting operations. Elevate your productivity and achieve reliable results with the GNTH Navy Trolley Hoist‚Äö engineered for those who demand the best in performance and durability. Experience the difference that a superior hoist can make in your day-to-day operations.
All products sold by Harrington Hoists, Inc. (HHI) are warranted to be free from defects in material and workmanship from the date of shipment, with coverage periods varying by product type - 1 year for electric and air powered hoists (excluding (N)ER2 and EQ/SEQ hoists), powered trolleys, powered Tiger Track jibs and gantries, crane components, below-the-hook devices, and spare/replacement parts; 2 years for manual hoists and trolleys and beam clamps; 3 years for (N)ER2 hoists, EQ/SEQ hoists, (T)EM/(T)SEM hoists, and RY hoists; 5 years for manual Tiger Track jibs and gantries and hoist motor brakes for EQ/SEQ, (T)EM/(T)SEM, and RY; and 10 years for the (N)ER2 brake and TNER hoist motor brake - provided the buyer notifies HHI in writing within sixty (60) days of discovering any alleged defect and the product has been used according to manufacturer recommendations without abuse, lack of maintenance, misuse, negligence, or unauthorized repairs or alterations. If HHI's inspection confirms a defect in material or workmanship within the applicable warranty period, HHI will, at its discretion, repair or replace the part or product free of charge (not including installation), with delivery made F.O.B. HHI's place of business for U.S. customers or FCA HHI's U.S. location for international customers under Incoterms 2010; no warranty claim will be honored without valid proof of purchase, the customer must obtain a Return Goods Authorization before shipping the product freight-prepaid along with an explanation of the complaint, repaired products remain covered for the rest of the original warranty period, replacement parts installed after the original warranty period carry only a one-year replacement warranty (not including installation) from installation, and if no defect is found or the defect falls outside the warranty's scope, the customer is responsible for return shipping costs. HHI disclaims all other express or implied warranties, including merchantability or fitness for a particular purpose, and will not be liable for death, personal injury, property damage, or incidental, contingent, special, or consequential damages, losses, or expenses arising from the use or misuse of its products, regardless of whether such damage results from any act or failure to act by HHI, whether negligent, willful, or otherwise.
