Harrington G-NTH Series Low-Headroom Trolley Hoist - 1 Ton - Geared Type

Write a Review
$1,851.60
$1,620.15
(You save $231.45 )
SKU: G-NTH010
Condition: New
Availability: Subject to Availability
Weight: 73.00 LBS
Shipping: Calculated at Checkout
Load Capacity: 1,000 - 2,499 lbs
Hoist Lift: 10 ft
Hoist Mount: Geared Trolley
Hoist Overload Protection: No
Pull to Lift Rated Load: 72 lb
Housing Length: 12 1/2 in
Housing Width: 11 in
Housing Depth: 13 in
Manufacturers Warranty Length: 1 yr
For Min Beam Flange Height: 4 13/32 in
Lifting Hook Opening Width: 1 3/32 in
Body Depth: 12 29/32 in
Body Width: 10 29/32 in
Chain Length: 11 ft
For Max Beam Flange Width: 5 5/32 in
Minimum Retracted Length: 12 1/2 in
For Min Beam Flange Width: 2 5/16 in
For Max Beam Flange Height: Not Applicable
Maximum Lifting Length: 10 ft
Lever Length: Not Applicable
Min Between Hooks: 14 3/4 in
Hook Opening: 1 7/64 in
Item: Chain Hoist
Trolley Configuration: Geared Trolley
Brake: Weston Style Brake

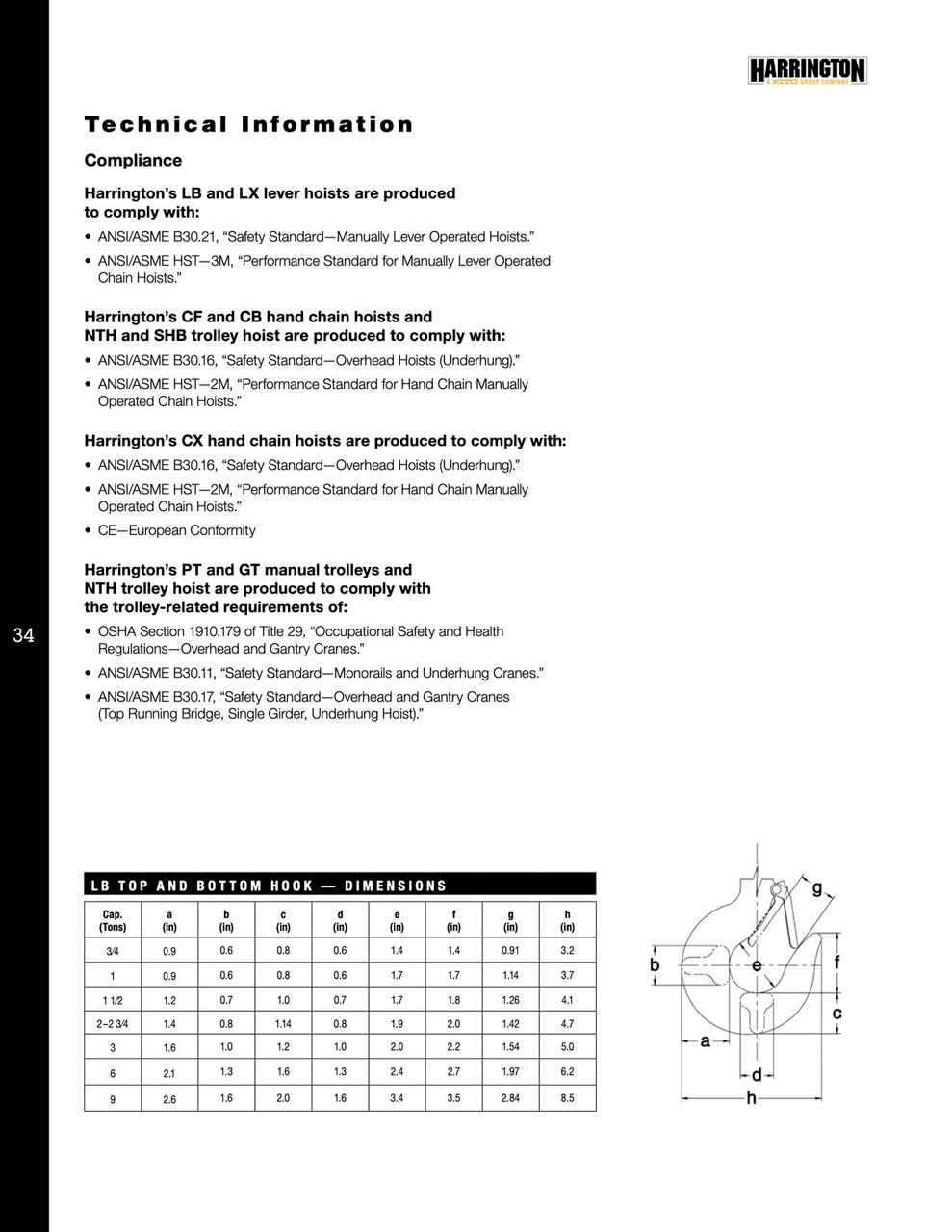

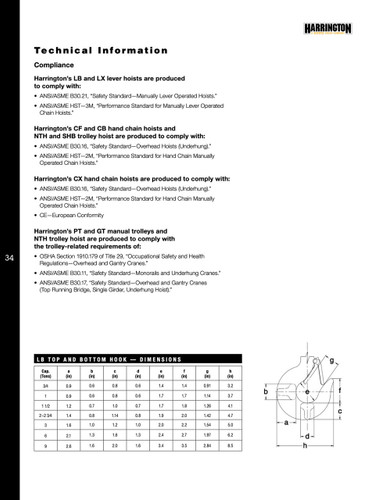

Standards: ANSI/ASME B30.16, ANSI/ASME HST-2M
Color: Yellow
Features: Integral Trolley
Overload Protection Included: No
Resistance Properties: Abrasion Resistant, Corrosion Resistant, Moisture Resistant, Wear Resistant
Body Material: Die-Cast Aluminum
Brake Type: Weston Style
Chain Material: Manganese Alloy
Chain Grade: Grade 100
Mount Type: Geared Trolley
Included Components: Safety Latch Hooks
Operating Position: Vertical
Lifting Hook Material: Carbon Steel
Lifting Hook Type: Hook with Safety Latch
Includes Brake: Brake Included
Maximum Pulling Capacity: Not Applicable
Power Source: Manual
Headroom: 12 1/2 in
Number of Load Chains: 1
Number of Reeves: 1
Maximum Lifting Capacity: 2,000 lb
Includes Clutch: Clutch Not Included
image-src: https://www.zoro.com/static/cms/product/large/Z1tCHylcpEx_.JPG
Capacity: 1,000 - 2,499 lbs
Lift: 10 ft
Adding to cart… The item has been added

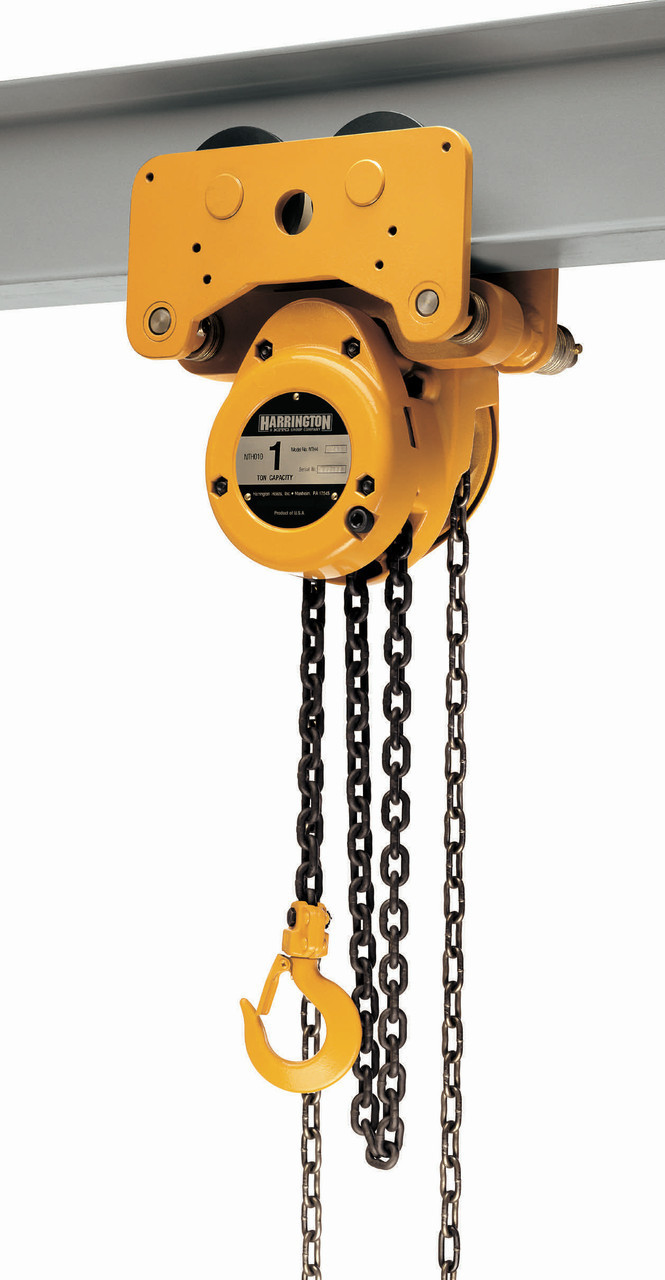

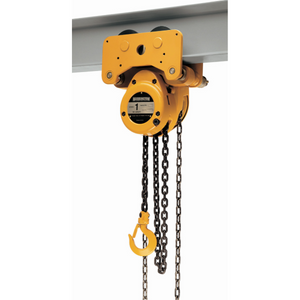

Harrington G-NTH Series Low-Headroom Trolley Hoist - 1 Ton - Geared Type

Harrington G-NTH Series Low-Headroom Trolley Hoist - 1 Ton - Geared Type

$1,851.60
$1,620.15
(You save $231.45 )
The G-NTH010 HARRINGTON Navy Trolley Hoist brings innovation and efficiency to the manual lifting sector, boasting a remarkable lift capacity of 1 ton. Crafted for versatility, this trolley hoist is an indispensable tool for professionals tackling varied lifting scenarios, from manufacturing facilities to construction sites. Its compact design is specifically tailored for environments with limited headroom, making it an excellent choice for navigating tight spaces and crowded work areas.

Simplicity and practicality are at the forefront of the G-NTH010's design. By combining a cost-effective CF hand chain hoist with a permanently attached trolley, users can enjoy the convenience of a single-system solution. This eliminates the hassle of managing separate hoist and trolley setups, streamlining your workflow and boosting productivity. User-friendly features make it easy to operate, reducing downtime and allowing you to concentrate on your projects.

Durability is a hallmark of the HARRINGTON brand, and the G-NTH010 exemplifies this commitment. Meticulously engineered with high-quality materials, this hoist is built to endure the rigors of daily use, ensuring reliability and longevity. Whether you're lifting heavy machinery, managing inventory, or conducting maintenance operations, you can trust in the G-NTH010 to perform consistently under pressure.

Elevate your lifting capabilities with the G-NTH010 HARRINGTON Navy Trolley Hoist. Its intelligent design, robust construction, and efficiency are tailored to enhance your operations, overcoming the challenges presented by limited headroom and confined spaces. Choose a hoist that embodies quality and commitment to excellence, ensuring that your lifting tasks are performed with ease and precision. Enhance your workflow and invest in the G-NTH010, where convenience meets reliability for all your lifting requirements.
All products sold by Harrington Hoists, Inc. (HHI) are warranted to be free from defects in material and workmanship from the date of shipment, with coverage periods varying by product type - 1 year for electric and air powered hoists (excluding (N)ER2 and EQ/SEQ hoists), powered trolleys, powered Tiger Track jibs and gantries, crane components, below-the-hook devices, and spare/replacement parts; 2 years for manual hoists and trolleys and beam clamps; 3 years for (N)ER2 hoists, EQ/SEQ hoists, (T)EM/(T)SEM hoists, and RY hoists; 5 years for manual Tiger Track jibs and gantries and hoist motor brakes for EQ/SEQ, (T)EM/(T)SEM, and RY; and 10 years for the (N)ER2 brake and TNER hoist motor brake - provided the buyer notifies HHI in writing within sixty (60) days of discovering any alleged defect and the product has been used according to manufacturer recommendations without abuse, lack of maintenance, misuse, negligence, or unauthorized repairs or alterations. If HHI's inspection confirms a defect in material or workmanship within the applicable warranty period, HHI will, at its discretion, repair or replace the part or product free of charge (not including installation), with delivery made F.O.B. HHI's place of business for U.S. customers or FCA HHI's U.S. location for international customers under Incoterms 2010; no warranty claim will be honored without valid proof of purchase, the customer must obtain a Return Goods Authorization before shipping the product freight-prepaid along with an explanation of the complaint, repaired products remain covered for the rest of the original warranty period, replacement parts installed after the original warranty period carry only a one-year replacement warranty (not including installation) from installation, and if no defect is found or the defect falls outside the warranty's scope, the customer is responsible for return shipping costs. HHI disclaims all other express or implied warranties, including merchantability or fitness for a particular purpose, and will not be liable for death, personal injury, property damage, or incidental, contingent, special, or consequential damages, losses, or expenses arising from the use or misuse of its products, regardless of whether such damage results from any act or failure to act by HHI, whether negligent, willful, or otherwise.
