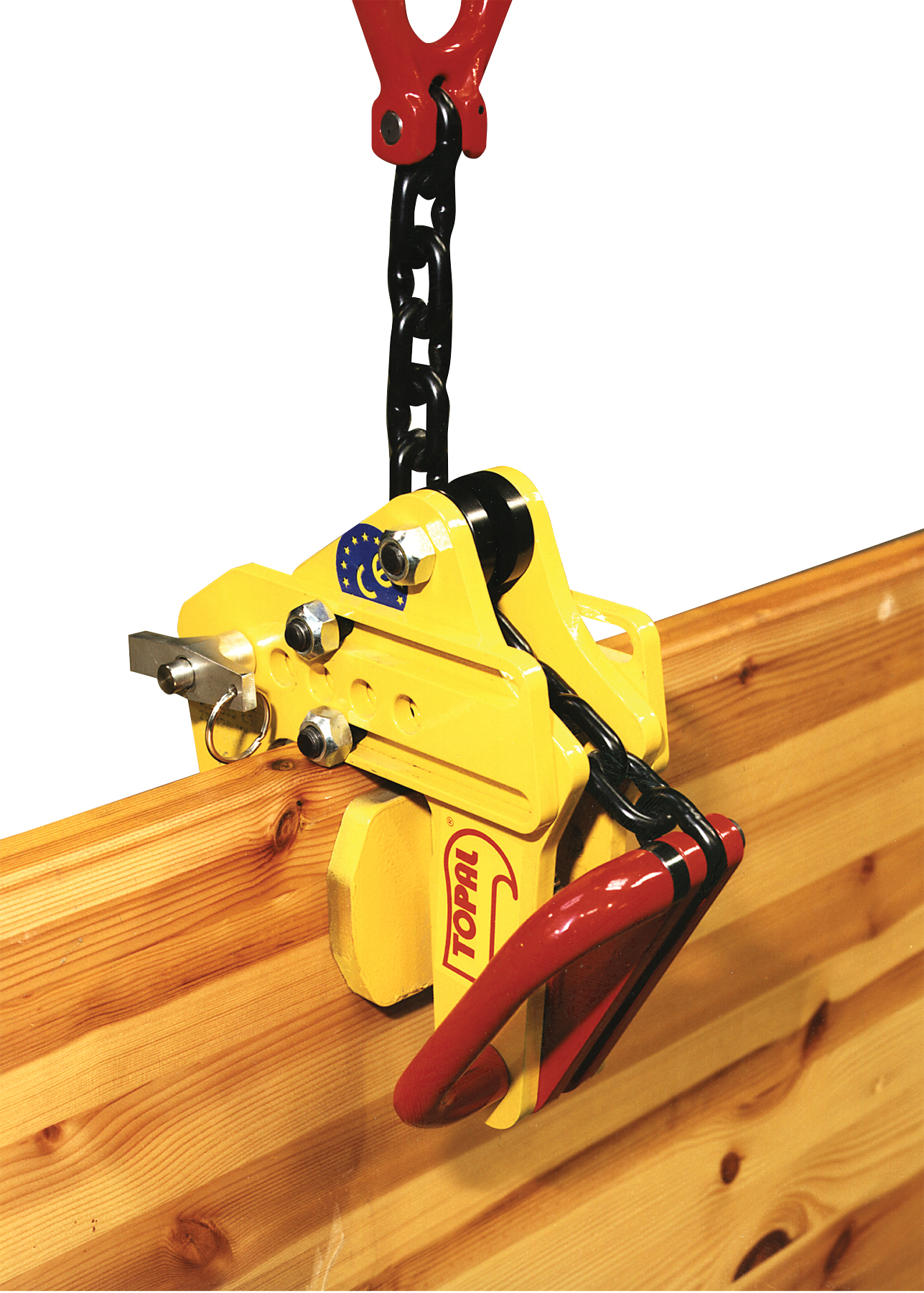

Tractel Topal NXR05 20-120 Non-Marring Multiposition Self-Locking Plate Clamp – 1,100 lbs Capacity

The Tractel Topal NXR05 20-120 Non-Marring Multiposition Self-Locking Plate Clamp is designed for lifting and positioning steel plates while protecting their surfaces. Clamp has a working load limit of 1,100 lbs (500 kg) and an adjustable jaw opening range of 13/16–4 1/4 inches (20–120 mm), this clamp accommodates a wide variety of plate thicknesses while maintaining a secure and reliable grip.

Equipped with an automatic self-locking mechanism, the NXR05 20-120 ensures the load is held safely and securely from the moment it is applied. Its multiposition design allows for vertical and horizontal lifting as well as rotation up to 180°, providing flexibility for precise positioning in fabrication shops, construction sites, or manufacturing environments.

Constructed from high-strength steel and finished with a durable protective coating, this clamp offers excellent resistance to wear and corrosion. The non-marring cam surface provides firm traction without marking the material, making it ideal for finished, coated, or delicate steel plates. Designed to meet strict safety standards, the NXR05 20-120 delivers dependable performance and confidence on every lift.

Specifications:

• Model: NXR05 20-120
• Working Load Limit (WLL): 1,100 lbs (500 kg)
• Jaw Opening: 13/16–4 1/4 in. (20–120 mm), adjustable
• Weight: 9.5 kg
• Material: High-strength steel with protective coating
• Locking Mechanism: Automatic self-locking cam
• Lifting Orientation: Vertical and horizontal; rotation up to 180°
• Safety Factor: 3:1 (EN 13155:2003 compliant)
• Standards Compliance: ANSI B30.20
• Minimum Load: 5% of WLL (approx. 55 lbs)
• Maximum Load Surface Hardness: 300 HB
• Temperature Range: -20°C to +100°C
• Recommended Use: Lifting and positioning finished, coated, or delicate steel plates

The Topal NXR05 20-120 Non-Marring Multiposition Self-Locking Plate Clamp combines adjustable capacity, reliable safety, and surface protection—making it an ideal solution for handling a wide range of steel plate sizes without compromising material integrity.
