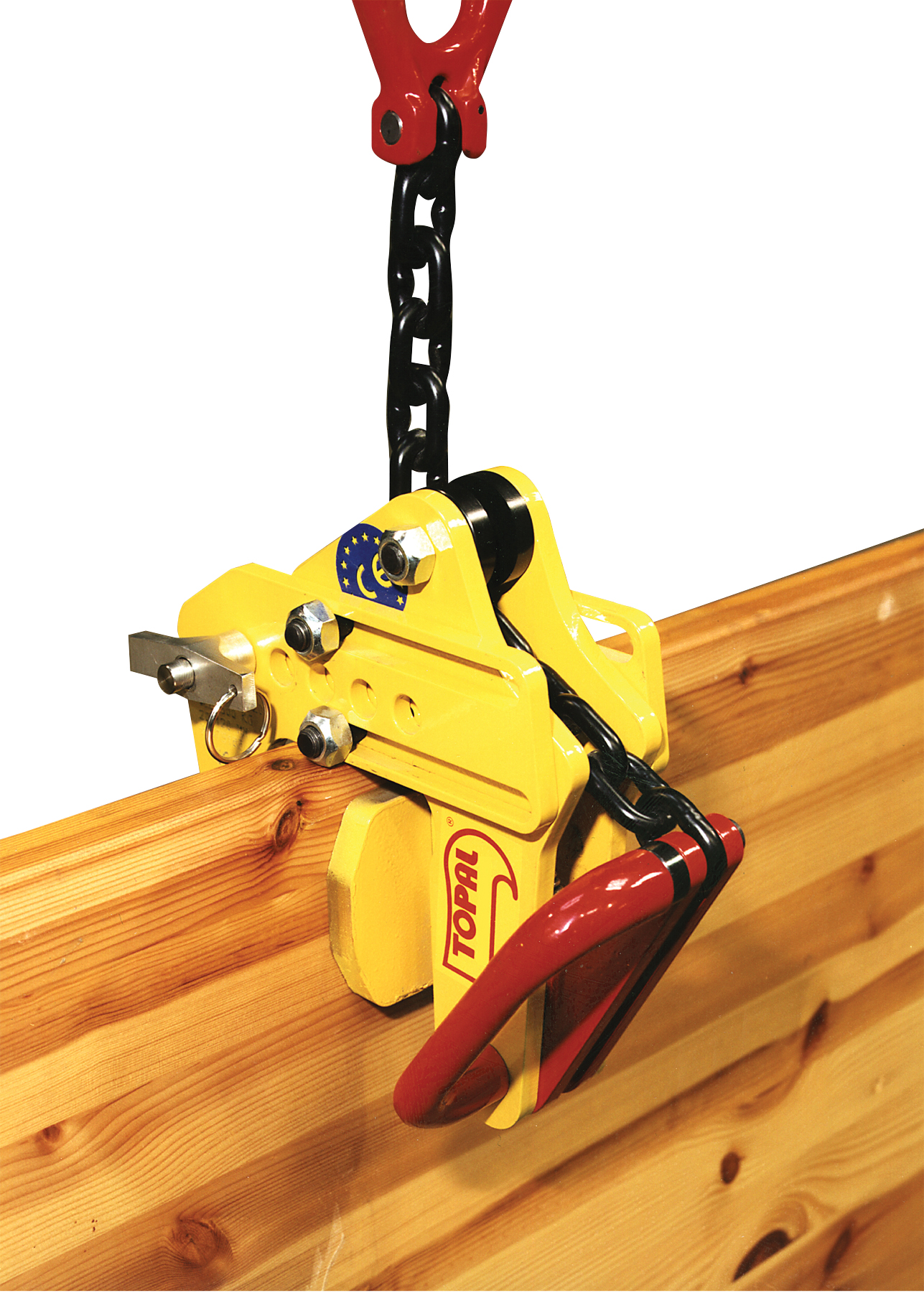

Tractel Topal NXR05 0-100 Non-Marring Multiposition Self-Locking Plate Clamp – 1,100 lbs Capacity

The Topal NXR05 0-100 Non-Marring Multiposition Self-Locking Plate Clamp is designed for lifting and positioning steel plates and assemblies while protecting the surface from scratches or damage. Clamp has a working load limit of 1,100 lbs (500 kg) and an adjustable jaw opening of 0–3 15/16 inches (0–100 mm), this clamp provides flexibility for a wide range of plate thicknesses while maintaining a secure grip.

The clamp features an automatic self-locking mechanism that engages immediately when the load is applied, ensuring a stable and safe hold during both vertical and horizontal lifts. Its multiposition design allows rotation up to 180°, giving operators the versatility to accurately position materials in workshops, fabrication shops, or construction sites.

Constructed from high-strength steel and finished with a durable protective coating, the NXR05 0-100 is built for long-lasting performance even under demanding conditions. The non-marring cam surface provides grip without leaving marks on the material. This makes it great for handling finished, coated, or steel plates. Tested to meet international safety standards, this clamp delivers reliable performance on every lift.

Specifications:

• Model: NXR05 0-100
• Working Load Limit (WLL): 1,100 lbs (500 kg)
• Jaw Opening: 0–3 15/16 in. (0–100 mm), adjustable
• Weight: 8.2 kg
• Material: High-strength steel with protective coating
• Locking Mechanism: Automatic self-locking cam
• Lifting Orientation: Vertical and horizontal; rotation up to 180°
• Safety Factor: 3:1 (EN 13155:2003 compliant)
• Standards Compliance: ANSI B30.20
• Minimum Load: 5% of WLL (approx. 55 lbs)
• Maximum Load Surface Hardness: 300 HB
• Temperature Range: -20°C to +100°C
• Recommended Use: Lifting and positioning finished, coated, or delicate steel plates

The Topal NXR05 0-100 Non-Marring Multiposition Self-Locking Plate Clamp combines capacity, reliable safety, and surface protection, making it the best choice for operators who need precision handling without damaging materials.
