Tractel Topal NK5-0-50 Multiposition Self-Locking Plate Clamp – 16,500 lbs Capacity

Write a Review
$12,197.99
SKU: 50378
Weight: 93.06 LBS
Width: 5.75 (in)
Height: 43.62 (in)
Depth: 15.75 (in)
Shipping: Calculated at Checkout
Adding to cart… The item has been added
Tractel Topal NK5-0-50 Multiposition Self-Locking Plate Clamp – 16,500 lbs Capacity

Tractel Topal NK5-0-50 Multiposition Self-Locking Plate Clamp – 16,500 lbs Capacity

$12,197.99
Description

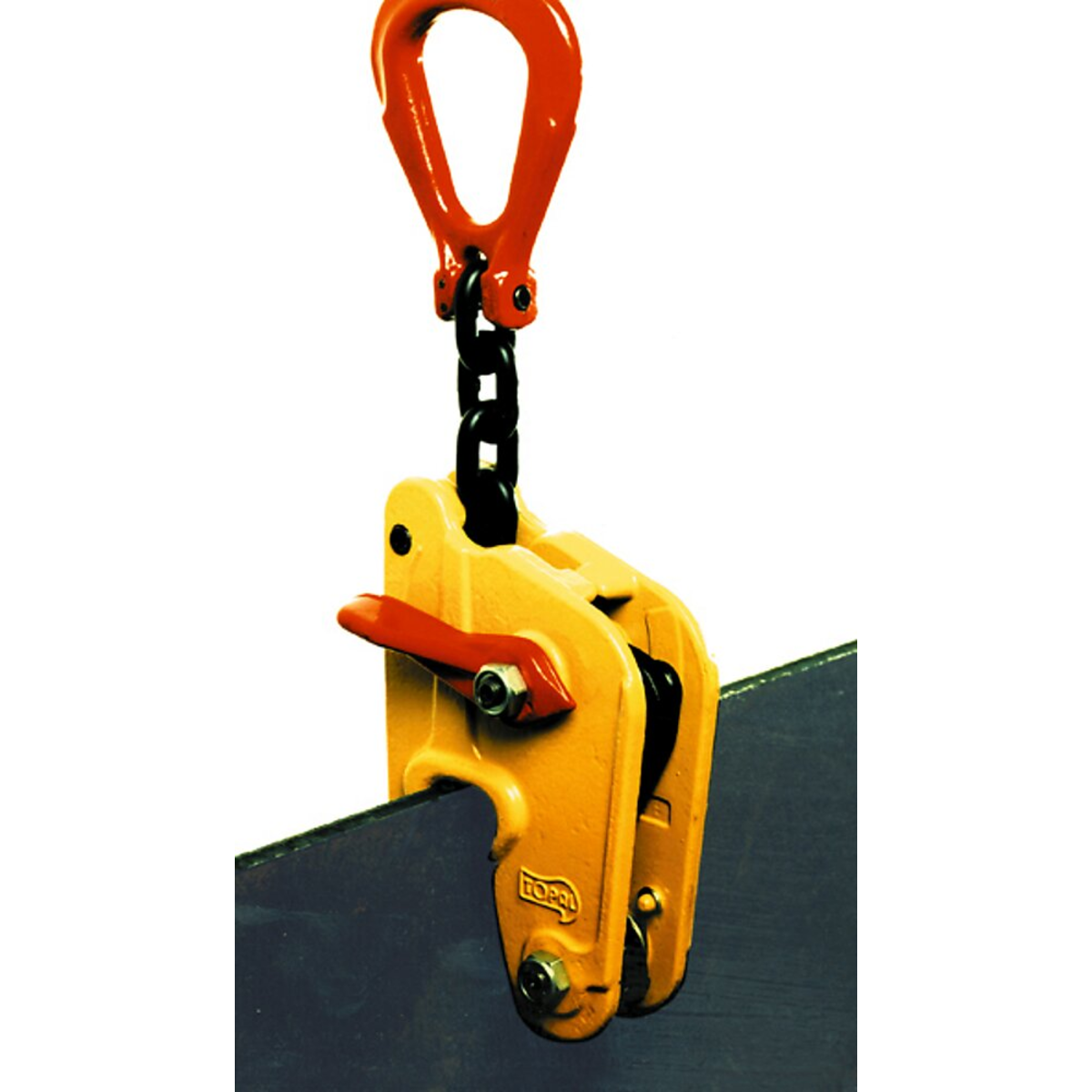

Tractel Topal NK5-0-50 Multiposition Self-Locking Plate Clamp – 16,500 lbs Capacity

The Topal NK5-0-50 Multiposition Self-Locking Plate Clamp delivers powerful, secure lifting for the heaviest steel plates and structural materials. Clamp has a working load limit of 16,500 lbs, and a jaw opening range of 0 to 2 inches, this clamp is built for demanding industrial applications where strength, stability, and safety cannot be compromised.

Engineered for both vertical and horizontal lifting, the NK5-0-50 features a self-locking mechanism that automatically engages when the load is applied. This system ensures a solid grip during the entire lifting process, reducing the risk of slippage or load shift. The multiposition design also allows for smooth rotation up to 180°, making it easy to align or reposition plates during handling—ideal for workshops, shipyards, steel fabrication plants, and heavy construction environments.

Built from high quality steel and protected by a durable epoxy coating. This clamp is built to give you long service life in various working conditions. Its serrated cam provides excellent traction without damaging the load surface, giving you safety and precision when lifting various materials. Every component of the NK5-0-50 reflects Topal’s commitment to quality, safety, and reliability.

Specifications:

  • Model: NK5-0-50
  • Working Load Limit (WLL): 16,500 lbs (7,500 kg)
  • Jaw Opening: 0–2 in. (0–50 mm)
  • Weight: 38 kg
  • Material: High-strength steel with hot epoxy finish
  • Locking Type: Automatic self-locking cam system
  • Lifting Orientation: Vertical and horizontal, rotation up to 180°
  • Safety Factor: 3:1 (EN 13155:2003 compliant)
  • Standards Compliance: ANSI B30.20
  • Minimum Load: 5% of WLL (approx. 825 lbs)
  • Maximum Load Surface Hardness: 300 HB
  • Temperature Range: -20°C to +100°C
  • Recommended Use: Handling thick steel plates, beams, and structural components

The Topal NK5-0-50 Multiposition Self-Locking Plate Clamp offers the strength and safety professionals rely on when handling heavy materials. So if you are in a fabrication shop or on a construction site, this clamp provides consistent performance and peace of mind on every lift.

Warranty Information
Tractel offers various warranties depending on the product, with a general warranty of 24 months on products manufactured by the seller for defects in materials and workmanship. Some specific products, like the tralift™ TT Electric chain hoist, may have a longer 3-year warranty. The warranty typically excludes issues from improper storage, assembly, maintenance, use, or unauthorized modifications and does not cover normal wear or paints.  Key Aspects of a Tractel Warranty:  Duration: The standard warranty period is 24 months (two years) from the date on the order invoice. Coverage: The warranty covers defects in materials and workmanship. Exclusions: The warranty generally does not cover: Improper storage or assembly. Insufficient maintenance or failure to follow operating instructions. Abnormal working conditions. Normal wear and tear. Willful or negligent damage. Modifications or repairs by personnel not certified by Tractel. Paints and coatings. How to Get More Information:  Check Product-Specific Details:  Always refer to the product's documentation or visit the Tractel US website for the exact warranty terms for your specific item. Contact Tractel:  For clarification on a specific warranty or to inquire about a potential claim, contact Tractel directly.
