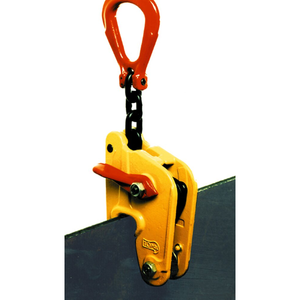

Tractel Topal NK5-50-100 Multiposition Self-Locking Plate Clamp – 16,500 lbs Capacity

The Topal NK5-50-100 Multiposition Self-Locking Plate Clamp is engineered for lifting and handling the heaviest steel plates, beams, and fabricated structures with confidence and precision. Clamp has a working load limit of 16,500 lbs, and a jaw opening range of 2–4 inches, this clamp is ideal for large-scale industrial applications where strength, and safety are critical.

The clamp features an automatic self-locking mechanism that engages as soon as the load is applied, ensuring a secure and stable grip during lifting operations. Its multiposition design gives you vertical and horizontal lifting, as well as rotation up to 180°. This gives operators flexibility for accurate positioning and alignment of heavy materials. This makes it perfect for use in steel fabrication shops, shipyards, manufacturing facilities, and construction sites.

Made from steel with a durable hot epoxy coating. The NK5-50-100 is built to withstand everyday use while resisting corrosion and wear. The serrated cam design provides firm traction while minimizing marks on the load surface, protecting the finish of the materials being handled. Every aspect of the clamp reflects Topal’s commitment to safety, performance, and longevity.

Specifications:

• Model: NK5-50-100
• Working Load Limit (WLL): 16,500 lbs (7,500 kg)
• Jaw Opening: 2–4 in. (50–100 mm)
• Weight: 42 kg
• Material: High-strength steel with hot epoxy coating
• Locking Mechanism: Automatic self-locking cam

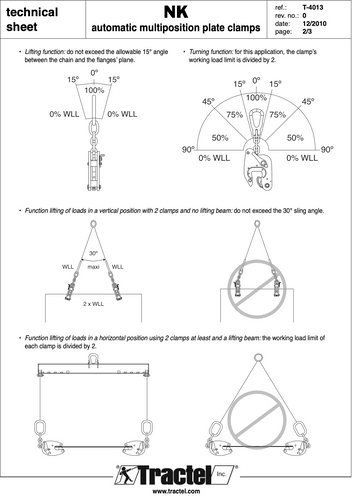

• Lifting Orientation: Vertical and horizontal; rotation up to 180°
• Safety Factor: 3:1 (EN 13155:2003 compliant)
• Standards Compliance: ANSI B30.20
• Minimum Load: 5% of WLL (approx. 825 lbs)
• Maximum Load Surface Hardness: 300 HB
• Temperature Range: -20°C to +100°C
• Recommended Use: Lifting and positioning large steel plates, beams, and structural components

The Topal NK5-50-100 Multiposition Self-Locking Plate Clamp combines exceptional lifting capacity, robust construction, and precise handling—making it an essential tool for professionals who work with heavy steel materials every day.
