Product Overview
Description

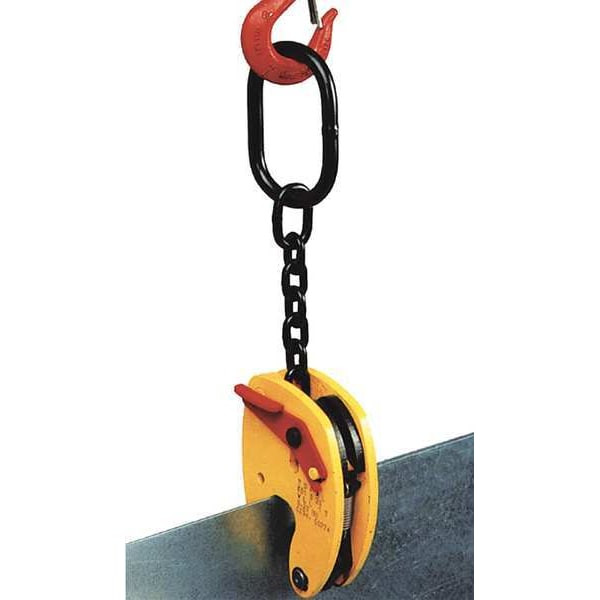

Plate Clamp, Working Load Limit 2,205 lb, Attachment Type Load Ring with Chain, Open Type Automatic, Close Type Automatic, Minimum Material Thickness 0 in, Maximum Material Thickness 3/4 in, Minimum Jaw Opening 0 in, Maximum Jaw Opening 3/4 in, Material Steel, Clamp Type Plate Clamp, Operation Horizontal Lift, Vertical Lift, Attachment Diameter Not Applicable, Grip Type Teeth, Overall Height 6 3/4 in, Overall Width 5 in, Overall Depth 2 5/8 in, Standards ANSI B30.20
A clamp range combining simplicity and flexibility, designed for lifting and revolving of plates, profiles, fabricated assemblies and steel frames during daily use.
Lifting and revolving load with one clamp.
Clamping is secured by a stainless steel spring mechanism.
The chain sling gives easy manipulation and positioning of the load.
Flexible clamping range fully usable without presetting.
Large oval suspension lifting ring.
Lift from horizontal to vertical and back (90 degrees), or lift from horizontal through vertical (180 degrees).
Fewer parts than others available.
''Bites' only on one side of work.
Dimensions
| Overall Width | 5 in |
| Overall Height | 6 3/4 in |
| Minimum Material Thickness | 0 in |
| Maximum Material Thickness | 3/4 in |
| Overall Depth | 2 5/8 in |
Details
| Item | Plate Clamp |
| Operation | Horizontal Lift, Vertical Lift |
| Material | Steel |
| Safe Working Load | 2,200 lb |
| Jaw Capacity | 3/4 in |
| Lifting Point | Chain with Load Ring |
| Jaw Material | Steel |
| Locking Type | Automatic Self Locking |
| Standards | ANSI B30.20 |
| Maximum Jaw Opening | 3/4 in |
| Grip Type | Teeth |
| Clamp Type | Plate Clamp |
| Attachment Type | Load Ring with Chain |
| Working Load Limit | 2,205 lb |
| Open Type | Automatic |
| Close Type | Automatic |
| Minimum Jaw Opening | 0 in |
