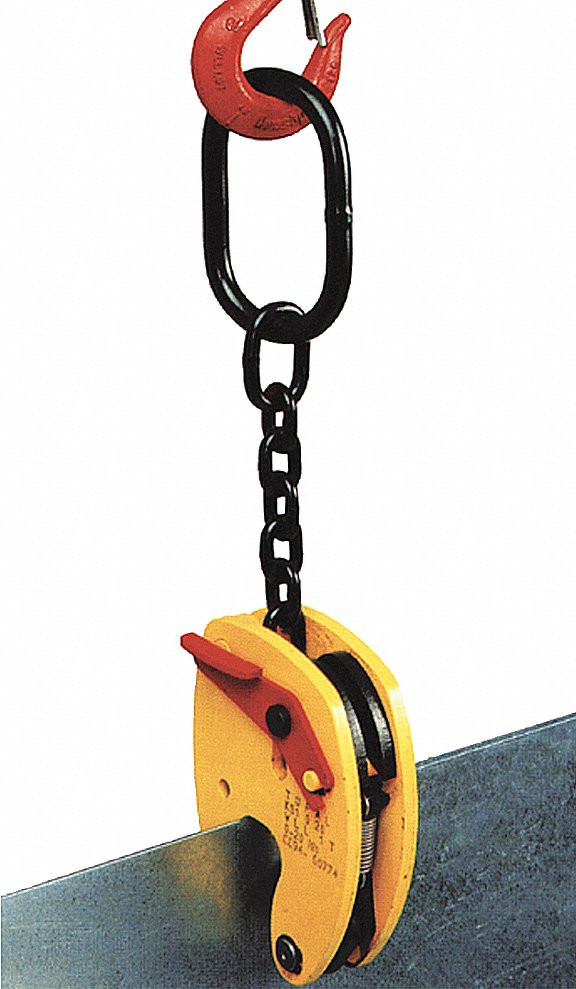

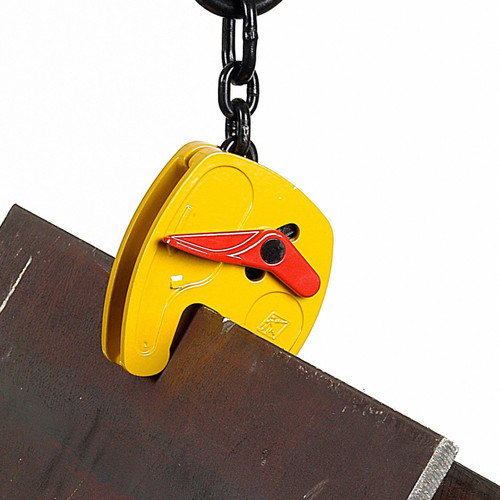

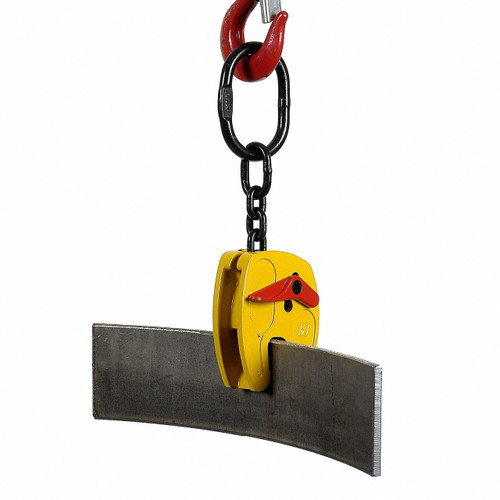

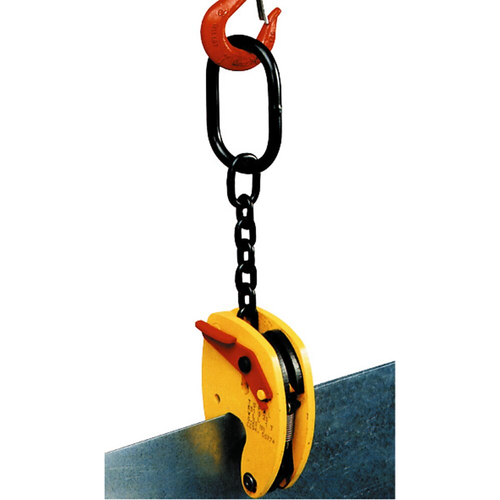

Product Overview

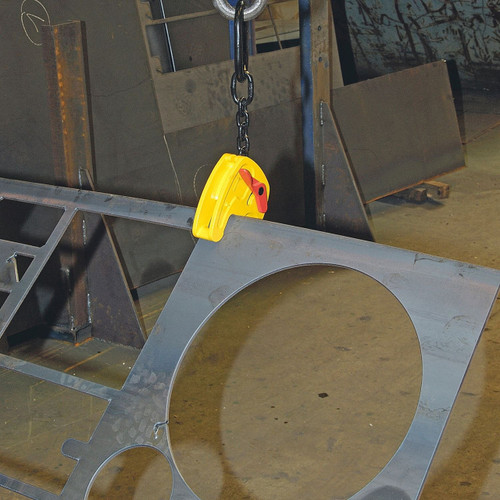

A clamp range combining simplicity and flexibility, designed for lifting and revolving plates, profiles, fabricated assemblies and steel frames during daily use.
The KS clamp has a safety spring and, depending on the weight of the load, will only leave a mark on one side.
FEATURES
- Working load limit (WLL): from 3/4 Ton / 1,650 lbs. to 3 Ton / 6,600 lbs.
- Wide range of jaw openings
- Lifting and revolving load with one clamp
- Clamping is secured by a stainless steel spring mechanism
- Chain sling gives easy manipulation and positioning of the load
- Flexible clamping range fully usable without presetting
- Large oval suspension lifting ring
- Horizontal and vertical use
- Manual release
- One-sided mark
- Hot epoxy coating
- Hardness up to 300 HB (Brinell hardness)
Product Details
- Brand : TRACTEL
- Clamp Type : Plate Clamp
- Working Load Limit :1,653 lb
- Lifting Operation : Vertical & Horizontal
- Operation Horizontal Lift; Vertical Lift
- Attachment Type : Load Ring with Chain
- Open Type : Automatic
- Close Type : Automatic
- Grip Type : Teeth
- Minimum Material Thickness : 0 in
- Maximum Material Thickness : 5/8 in
- Overall Height : 5-1/8 in
- Overall Width : 3-3/4 in
- Overall Depth : 2-1/8 in
- Minimum Jaw Opening : 0 in
- Maximum Jaw Opening : 5/8 in
- Material : Steel
- Standards : ANSI B30.20
- Manufacturer Part Number : 50238
- Sub-brandTopal(R) : Lifting Clamps
- UNSPSC : 31162905
- Country of Origin : France (subject to change)
