Tractel Topal KS2 0-25 Multiposition Plate Clamp – 4,400 lbs Capacity

Product Description

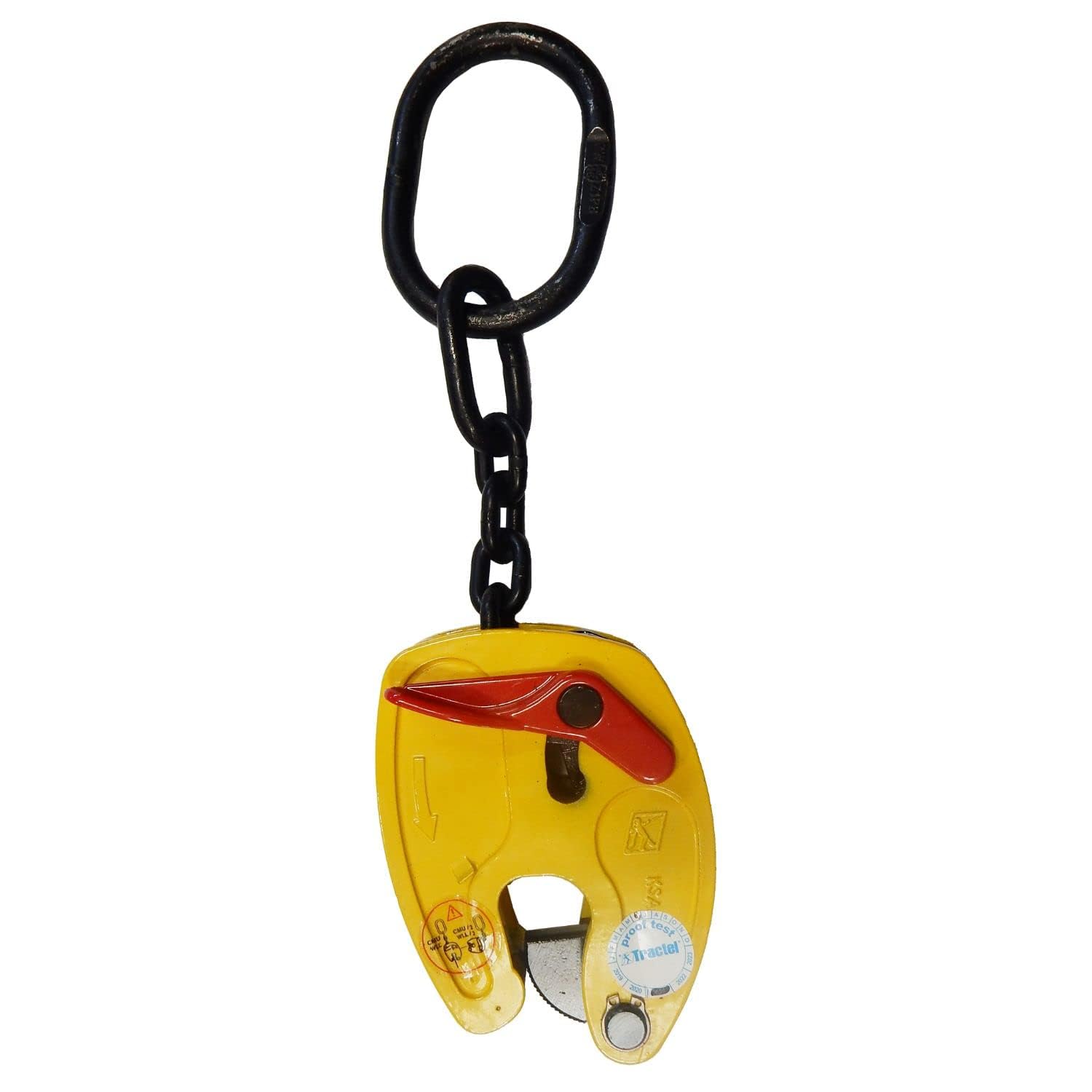

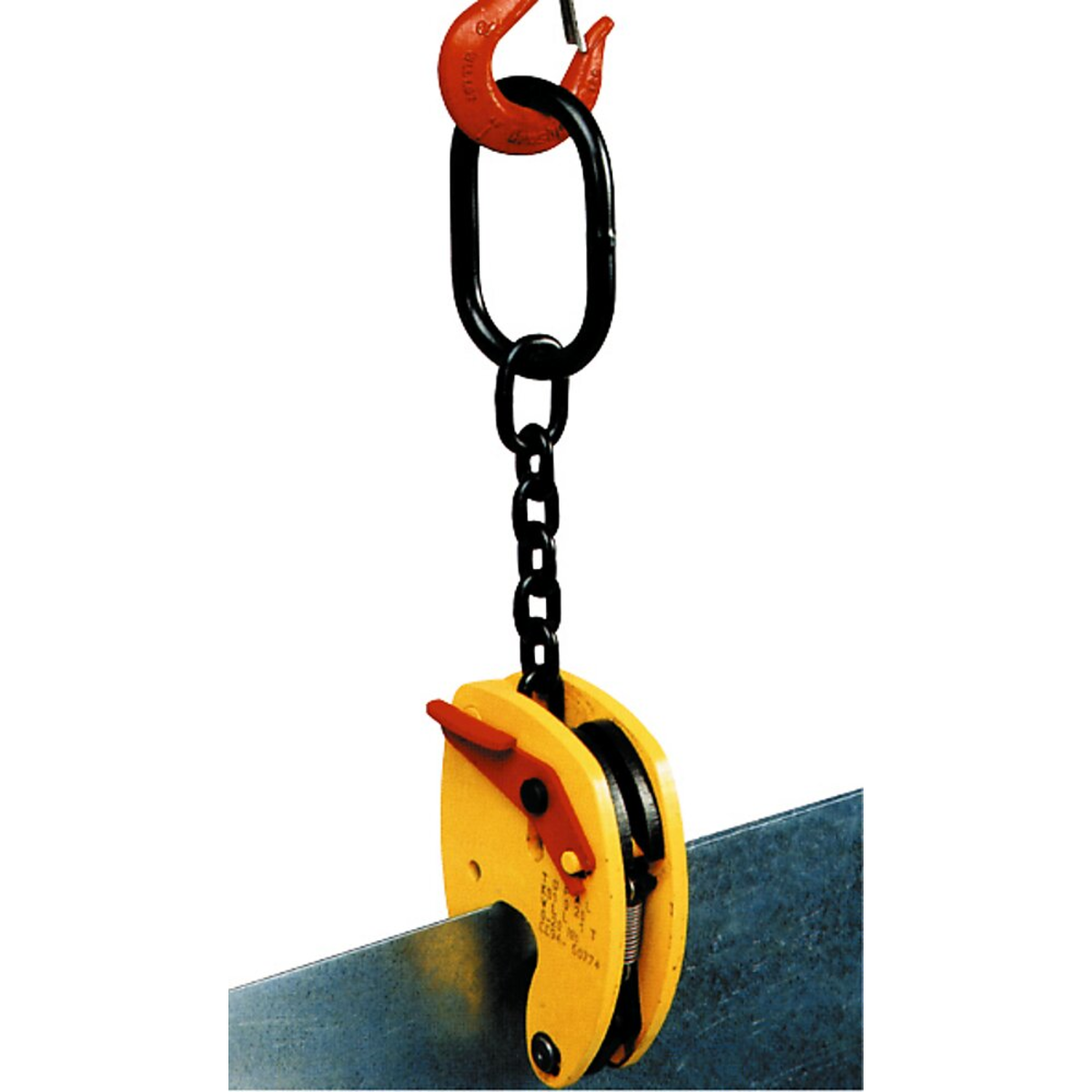

The Topal KS2 0-25 Multiposition Plate Clamp delivers a safe, versatile, and efficient solution for lifting steel plates, profiles, and fabricated assemblies. With a load limit of 4,400 lbs (2,000 kg), and a jaw opening range of 0–1 inch (0–25 mm), this clamp is engineered to meet the necessities of various industrial applications. Its self-locking mechanism gives users secure engagement and reliable performance during every lift and reduces the risk of accidents.

Can be used for either vertical or horizontal lifting. The KS2 0-25 allows rotation of loads up to 180°, making it perfect for precise positioning tasks. This clamp features a corrugated cam that minimizes surface markings, and preserves the integrity of your materials. Built using durable steel with a protective hot epoxy coating. Clamp withstands heavy use while maintaining long-lasting performance. Can be used for handling steel in workshops, fabrication shops, or construction sites. The Topal KS2 0-25 offers the safety, and versatility that professionals require.

Specifications:

• Model: KS2 0-25
• SKU: 50258
• Working Load Limit: 4,400 lbs (2,000 kg)
• Jaw Opening: 0–1 inch (0–25 mm)
• Weight: 6.26 kg
• Material: Steel with hot epoxy coating
• Locking Mechanism: Automatic self-locking cam
• Safety Factor: 3:1 (EN 13155:2003 compliant)
• Standards Compliance: ANSI B30.20
• Temperature Range: -20°C to +100°C
• Minimum Load Weight: 5% of WLL (approx. 220 lbs)
• Maximum Load Surface Hardness: 300 HB
• Minimum Load Tensile Strength: 20 daN/mm²

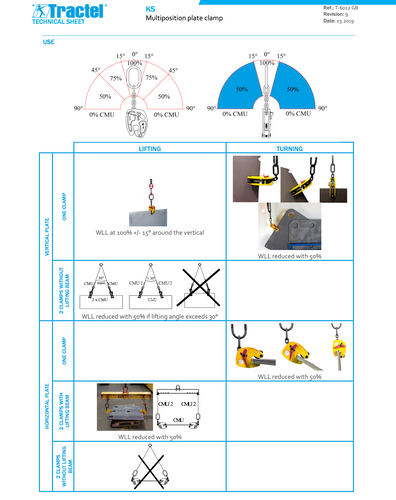

• Lifting Capability: Vertical and horizontal, with 90° or 180° rotation
• Usage Notes: Not suitable for lifting fragile or brittle materials

The Topal KS2 0-25 Multiposition Plate Clamp is a dependable, safe lifting tool that combines durability, and precision, making it a much needed addition to any material handling toolkit.
