Tractel Topal NK1-20-40 Multiposition Self-Locking Plate Clamp – 3,300 lbs Capacity

Write a Review
$3,085.99
SKU: 50298
Weight: 12.76 LBS
Width: 8.75 (in)
Height: 19.38 (in)
Depth: 5.89 (in)
Shipping: Calculated at Checkout
Adding to cart… The item has been added
Tractel Topal NK1-20-40 Multiposition Self-Locking Plate Clamp – 3,300 lbs Capacity

Tractel Topal NK1-20-40 Multiposition Self-Locking Plate Clamp – 3,300 lbs Capacity

$3,085.99
Description

Tractel Topal NK1-20-40 Multiposition Self-Locking Plate Clamp – 3,300 lbs Capacity

The Topal NK1-20-40 Multiposition Self-Locking Plate Clamp is designed for safe and reliable lifting of steel plates, beams, and fabricated components. Clamp has a working load limit of 3,300 lbs (1,500 kg) and a jaw opening range of 7/8 to 1 1/2 inches (20–40 mm), this model handles thicker materials with ease while maintaining a secure, stable grip.

Built with safety in mind, the NK1-20-40 features an automatic self-locking mechanism that engages as soon as the load is applied. This gives consistent clamping force throughout the lift and minimizes the risk of slippage or operator error. It’s a dependable choice for both vertical and horizontal lifting applications and allows rotation of loads up to 180°, making positioning and alignment simple and efficient.

The clamp has a sturdy steel body and hot epoxy coating that provide excellent protection against wear, corrosion, and harsh jobsite conditions. Its serrated cam surface grips firmly while reducing marking on the load, preserving the finish of the materials being lifted.

Doesn't matter if you’re working in a steel fabrication shop, manufacturing plant, or construction environment. The Topal NK1-20-40 offers the perfect balance of strength, safety, and versatility for everyday lifting tasks.

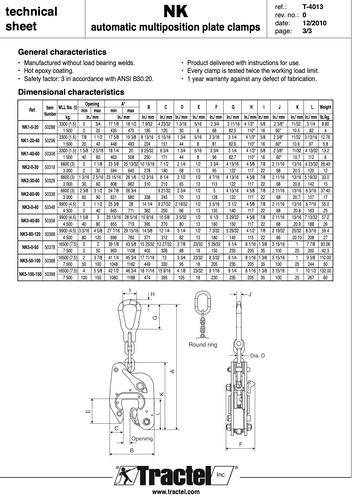

Specifications:

  • Model: NK1-20-40
  • SKU: 50298
  • Working Load Limit: 3,300 lbs (1,500 kg)
  • Jaw Opening: 7/8–1 1/2 in. (20–40 mm)
  • Weight: 6.8 kg
  • Material: High-strength steel with hot epoxy coating
  • Locking Mechanism: Automatic self-locking cam
  • Safety Factor: 3:1 (EN 13155:2003 compliant)
  • Standards Compliance: ANSI B30.20
  • Temperature Range: -20°C to +100°C
  • Minimum Load: 5% of WLL (approx. 165 lbs)
  • Maximum Load Surface Hardness: 300 HB
  • Lifting Capability: Vertical and horizontal lifting; rotation up to 180°
  • Usage Note: Not suitable for fragile or brittle materials

The Topal NK1-20-40 clamp delivers strength and safety for lifting thicker steel plates which makes it the trusted choice for the professionals who demand consistent performance on the job.

Warranty Information
Tractel offers various warranties depending on the product, with a general warranty of 24 months on products manufactured by the seller for defects in materials and workmanship. Some specific products, like the tralift™ TT Electric chain hoist, may have a longer 3-year warranty. The warranty typically excludes issues from improper storage, assembly, maintenance, use, or unauthorized modifications and does not cover normal wear or paints.  Key Aspects of a Tractel Warranty:  Duration: The standard warranty period is 24 months (two years) from the date on the order invoice. Coverage: The warranty covers defects in materials and workmanship. Exclusions: The warranty generally does not cover: Improper storage or assembly. Insufficient maintenance or failure to follow operating instructions. Abnormal working conditions. Normal wear and tear. Willful or negligent damage. Modifications or repairs by personnel not certified by Tractel. Paints and coatings. How to Get More Information:  Check Product-Specific Details:  Always refer to the product's documentation or visit the Tractel US website for the exact warranty terms for your specific item. Contact Tractel:  For clarification on a specific warranty or to inquire about a potential claim, contact Tractel directly.
