Tractel Topal NK1-0-20 Multiposition Self-Locking Plate Clamp – 3,300 lbs Capacity

Write a Review
$1,950.99
SKU: 50288
Weight: 8.80 LBS
Width: 2.75 (in)
Height: 18.50 (in)
Depth: 7.50 (in)
Shipping: Calculated at Checkout
Adding to cart… The item has been added
Tractel Topal NK1-0-20 Multiposition Self-Locking Plate Clamp – 3,300 lbs Capacity

Tractel Topal NK1-0-20 Multiposition Self-Locking Plate Clamp – 3,300 lbs Capacity

$1,950.99
Description

Tractel Topal NK1-0-20 Multiposition Self-Locking Plate Clamp – 3,300 lbs Capacity

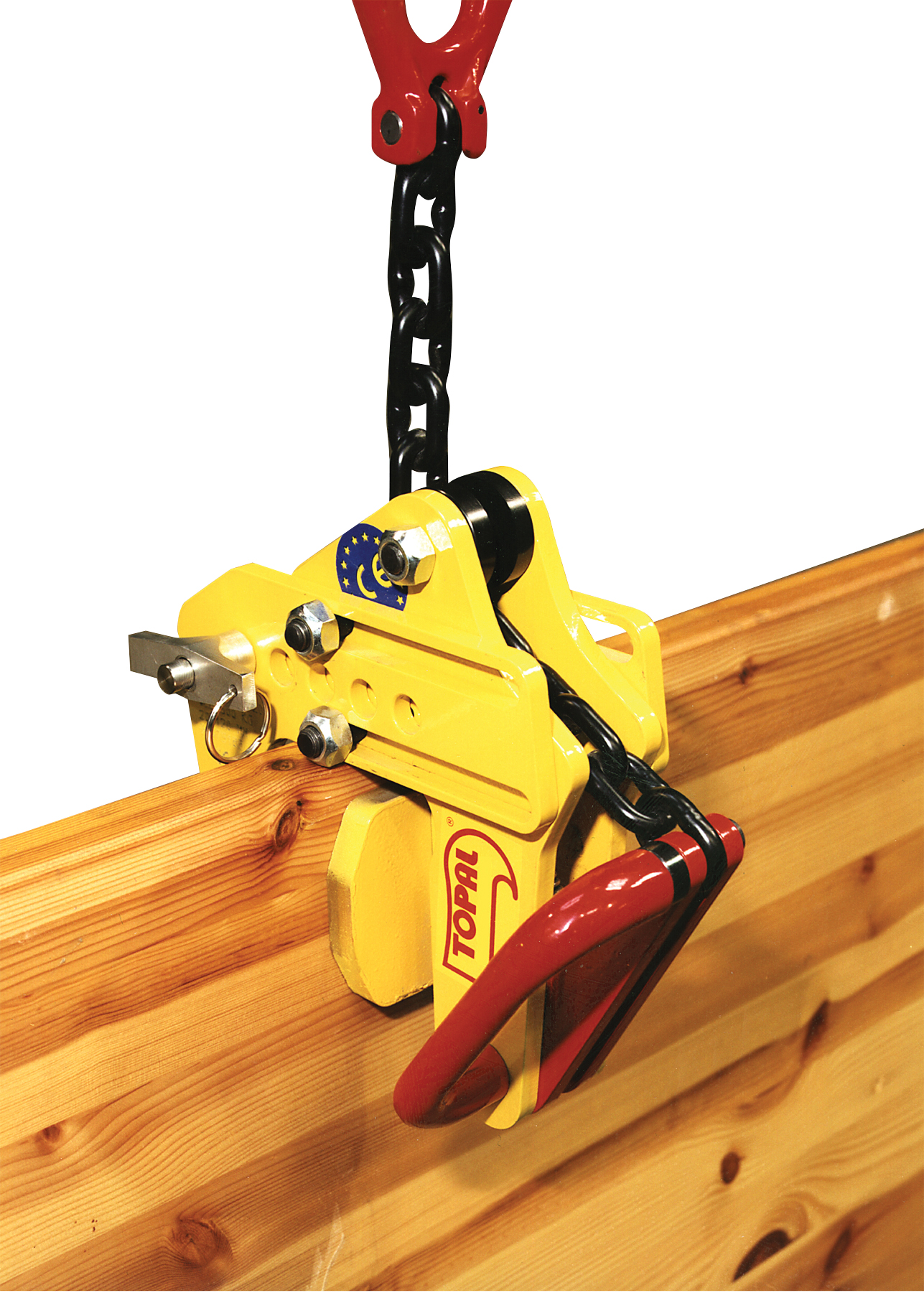

The Topal NK1-0-20 Multiposition Self-Locking Plate Clamp is built for dependable performance when lifting and positioning steel plates, beams, and fabricated sections. Clamp has a load limit of 3,300 lbs (1,500 kg) and a jaw opening of 0–3/4 inch (0–20 mm). This clamp delivers the strength and precision needed for daily industrial use.

Its self-locking mechanism automatically engages when the load is applied giving you a secure grip throughout the lift. This safety feature eliminates the need for manual locking and helps reduce handling time, making it a practical choice for busy worksites. The NK1-0-20 also allows for multiposition lifting — both vertical and horizontal — as well as controlled rotation, giving operators flexibility when positioning plates or assemblies.

The clamp’s body is made from durable, high-quality steel and coated with a protective hot epoxy finish to resist corrosion and wear. The cam surface is designed to hold materials firmly with minimal marking, making it suitable for a variety of lifting applications where surface integrity matters.

Whether in a fabrication shop, warehouse, or construction setting, the Topal NK1-0-20 offers reliable performance, simple operation, and long service life — a tool you can count on when safety and efficiency are top priorities.

Specifications:

  • Model: NK1-0-20
  • SKU: 50288
  • Working Load Limit (WLL): 3,300 lbs (1,500 kg)
  • Jaw Opening: 0–3/4 in. (0–20 mm)
  • Weight: 5.7 kg
  • Material: High-strength steel with hot epoxy coating
  • Locking Mechanism: Automatic self-locking cam
  • Safety Factor: 3:1 (EN 13155:2003 compliant)
  • Standards Compliance: ANSI B30.20
  • Temperature Range: -20°C to +100°C
  • Minimum Load: 5% of WLL (approx. 165 lbs)
  • Maximum Load Surface Hardness: 300 HB

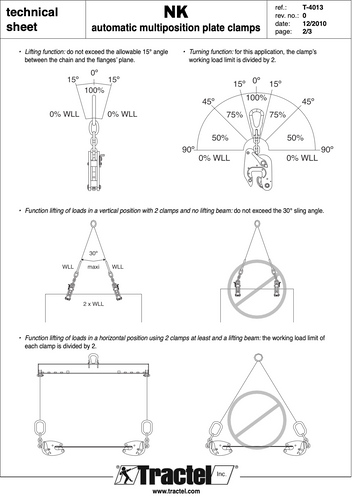

  • Lifting Capability: Vertical and horizontal lifting with rotation up to 180°
  • Usage Note: Not for use with fragile or brittle materials

The Topal NK1-0-20 clamp combines safety, strength, and versatility in one compact, easy-to-handle design — the perfect addition to any professional lifting setup.

Warranty Information
Tractel offers various warranties depending on the product, with a general warranty of 24 months on products manufactured by the seller for defects in materials and workmanship. Some specific products, like the tralift™ TT Electric chain hoist, may have a longer 3-year warranty. The warranty typically excludes issues from improper storage, assembly, maintenance, use, or unauthorized modifications and does not cover normal wear or paints.  Key Aspects of a Tractel Warranty:  Duration: The standard warranty period is 24 months (two years) from the date on the order invoice. Coverage: The warranty covers defects in materials and workmanship. Exclusions: The warranty generally does not cover: Improper storage or assembly. Insufficient maintenance or failure to follow operating instructions. Abnormal working conditions. Normal wear and tear. Willful or negligent damage. Modifications or repairs by personnel not certified by Tractel. Paints and coatings. How to Get More Information:  Check Product-Specific Details:  Always refer to the product's documentation or visit the Tractel US website for the exact warranty terms for your specific item. Contact Tractel:  For clarification on a specific warranty or to inquire about a potential claim, contact Tractel directly.
