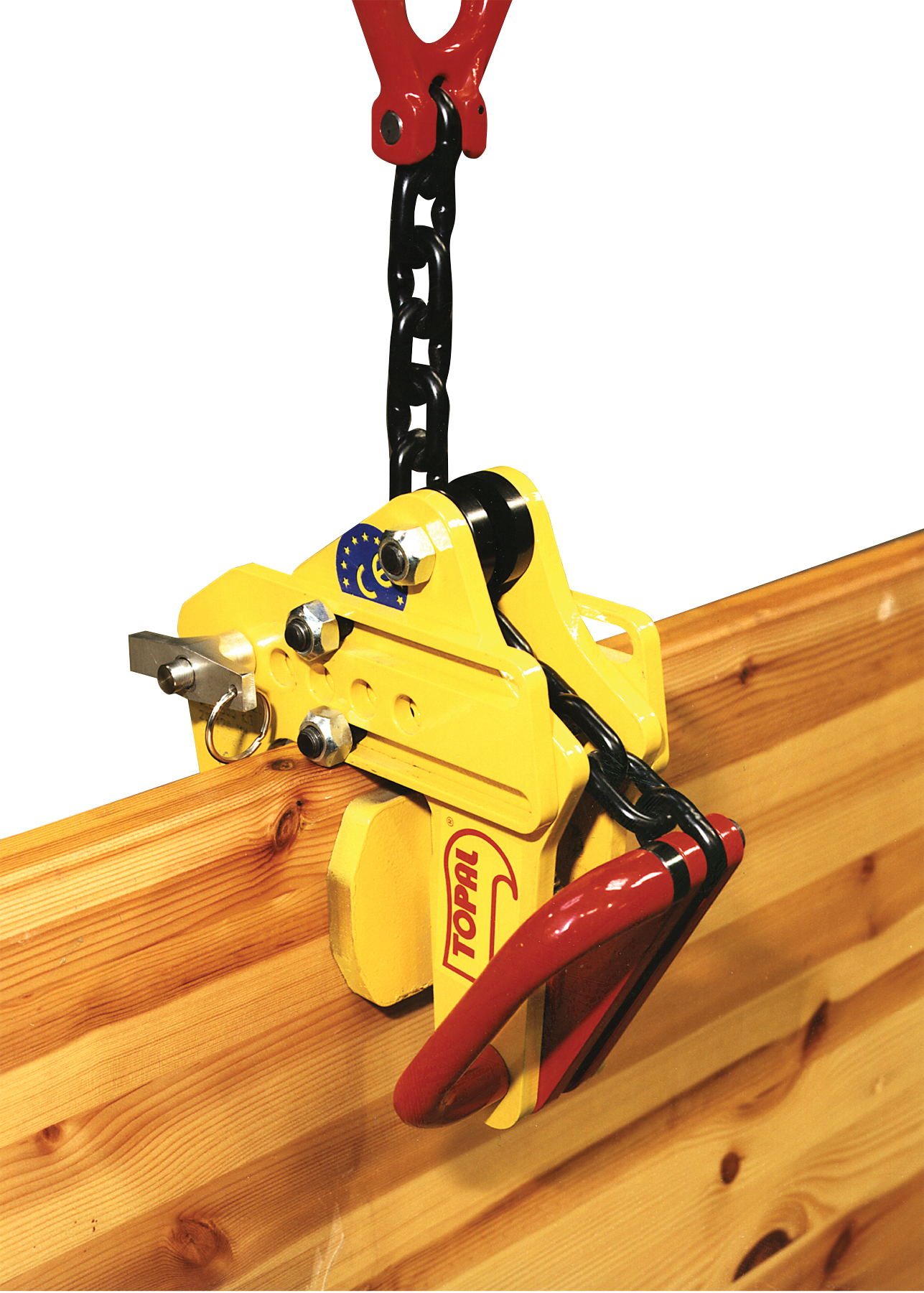

Tractel Topal NK1-40-60 Multiposition Self-Locking Plate Clamp – 3,300 lbs Capacity

The Topal NK1-40-60 Multiposition Self-Locking Plate Clamp is built to provide dependable lifting performance for thicker steel plates, beams, and fabricated assemblies. Clamp has a working load limit of 3,300 lbs (1,500 kg) and a jaw opening range of 1 5/8 to 2 5/16 inches (40–60 mm), this clamp is ideal for securely handling larger materials while maintaining precision and control.

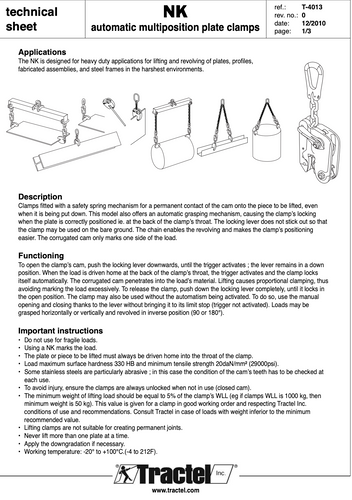

Its automatic self-locking mechanism engages instantly when the load is applied, ensuring a secure grip from start to finish. This feature provides users safety and simplifies use in fast moving environments. This clamp supports either vertical and horizontal lifting, and allows rotation of up to 180°. This gives operators flexibility to position heavy components exactly where they’re needed.

Built for industry, this clamp features a steel body with a protective hot epoxy coating that resists corrosion and surface wear. The serrated cam design provides a firm hold while minimizing marks on the load surfaces. This helps preserve the materials being lifted.

Perfect for steel fabrication shops, manufacturing plants, and construction sites. The Topal NK1-40-60 offers the combination of safety, strength, and versatility that professionals rely on day after day.

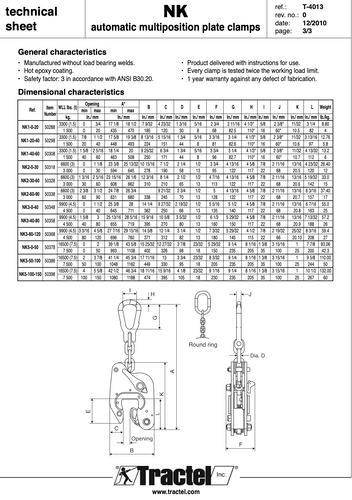

Specifications:

• Model: NK1-40-60
• Working Load Limit: 3,300 lbs (1,500 kg)
• Jaw Opening: 1 5/8–2 5/16 in. (40–60 mm)
• Weight: 7.9 kg
• Material: High-strength steel with hot epoxy coating
• Locking Mechanism: Automatic self-locking cam
• Safety Factor: 3:1 (EN 13155:2003 compliant)
• Standards Compliance: ANSI B30.20
• Temperature Range: -20°C to +100°C
• Minimum Load: 5% of WLL (approx. 165 lbs)
• Maximum Load Surface Hardness: 300 HB
• Lifting Capability: Vertical and horizontal lifting; rotation up to 180°
• Usage Note: Not recommended for fragile or brittle materials

The Topal NK1-40-60 Multiposition Self-Locking Plate Clamp provides reliable grip, and smooth handling that makes it an essential lifting tool for professionals working with heavy steel materials.
