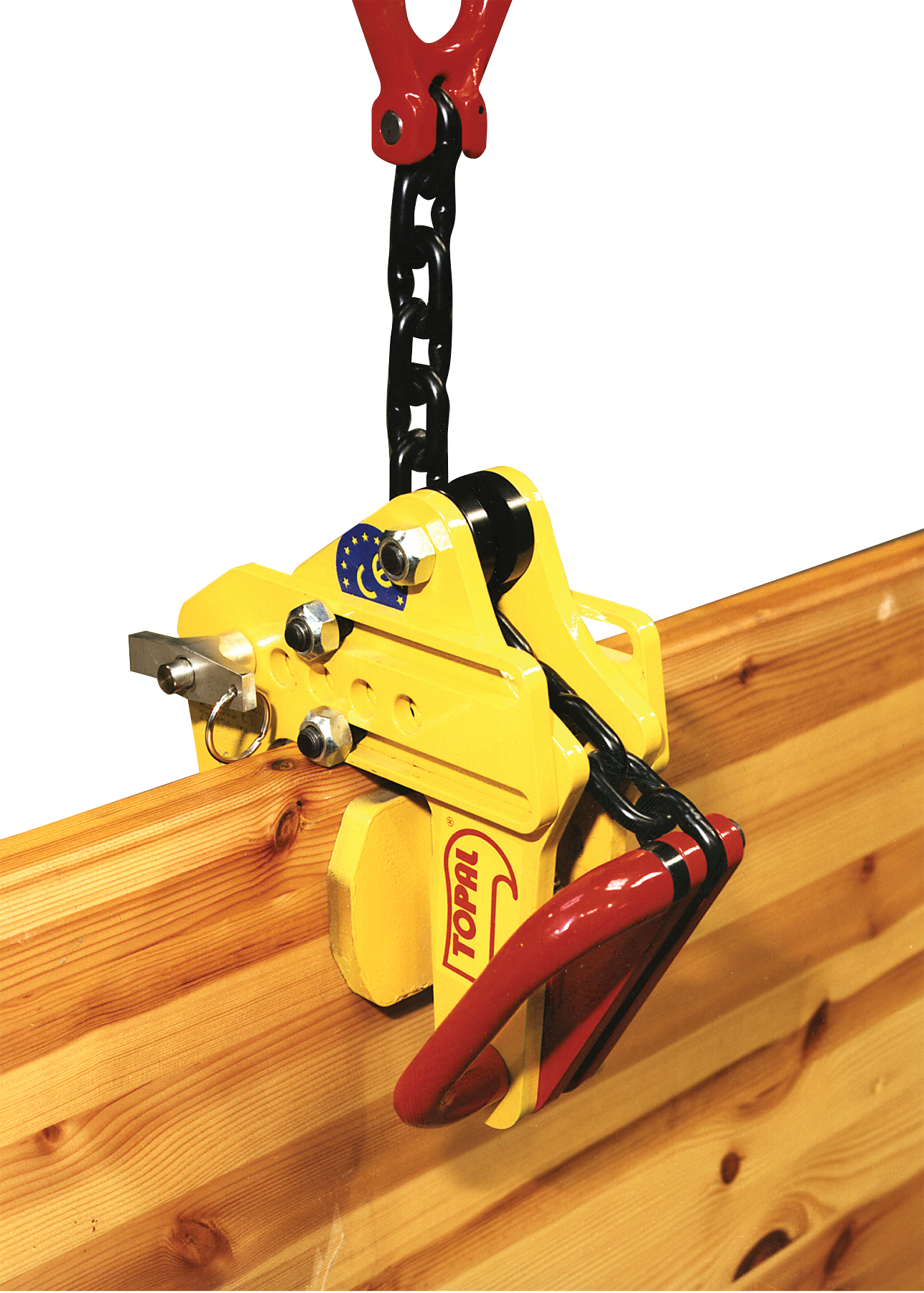

Tractel Topal NK2-30-60 Multiposition Self-Locking Plate Clamp – 6,600 lbs Capacity

The Topal NK2-30-60 Multiposition Self-Locking Plate Clamp is designed for lifting and handling thicker steel plates and fabricated assemblies with complete confidence. Clamp has a working load limit of 6,600 lbs (3,000 kg) and a jaw opening range of 1 3/16 to 2 5/16 inches (30–60 mm). This heavy-duty clamp provides grip and stability during every lift.

Its automatic self-locking mechanism engages as soon as pressure is applied, allowing the load to stay securely in place throughout the operation. This feature not only enhances safety but also saves time, allowing operators to work more efficiently. Suitable for both vertical and horizontal lifting, the NK2-30-60 also allows rotation of up to 180°, offering excellent flexibility for positioning materials in fabrication shops, warehouses, or on construction sites.

The clamp’s high-strength steel body and durable hot epoxy coating provide long-lasting resistance to corrosion and wear, even in demanding environments. Its serrated cam grips firmly while reducing marking on the load surface, helping to maintain the material’s finish. Built to meet strict safety standards, the NK2-30-60 delivers dependable performance you can trust on every job.

Specifications:

• Model: NK2-30-60
• Working Load Limit (WLL): 6,600 lbs (3,000 kg)
• Jaw Opening: 1 3/16–2 5/16 in. (30–60 mm)
• Weight: 11.7 kg
• Material: High-strength steel with hot epoxy coating
• Locking Mechanism: Automatic self-locking cam
• Safety Factor: 3:1 (EN 13155:2003 compliant)
• Standards Compliance: ANSI B30.20
• Temperature Range: -20°C to +100°C
• Minimum Load: 5% of WLL (approx. 330 lbs)
• Maximum Load Surface Hardness: 300 HB
• Lifting Capability: Vertical and horizontal lifting; rotation up to 180°
• Usage Note: Not suited for fragile or brittle materials

The Topal Multiposition Self-Locking Plate Clamp offers the strength, safety, and versatility that true professionals need for reliable lifting and precise positioning of heavy components.
