Tractel Tirak® X1020 Wire Rope Hoist — 1,000 kg (2,200 lb) Capacity, Three-Phase

Write a Review
$22,865.99
SKU: X1020
Weight: 91.00 LBS
Width: 16.90 (in)
Height: 33.50 (in)
Depth: 14.00 (in)
Shipping: Calculated at Checkout
Adding to cart… The item has been added
Tractel Tirak® X1020 Wire Rope Hoist — 1,000 kg (2,200 lb) Capacity, Three-Phase

Tractel Tirak® X1020 Wire Rope Hoist — 1,000 kg (2,200 lb) Capacity, Three-Phase

$22,865.99

Tractel Tirak® X1020 Wire Rope Hoist — 1,000 kg (2,200 lb) Capacity, Three-Phase

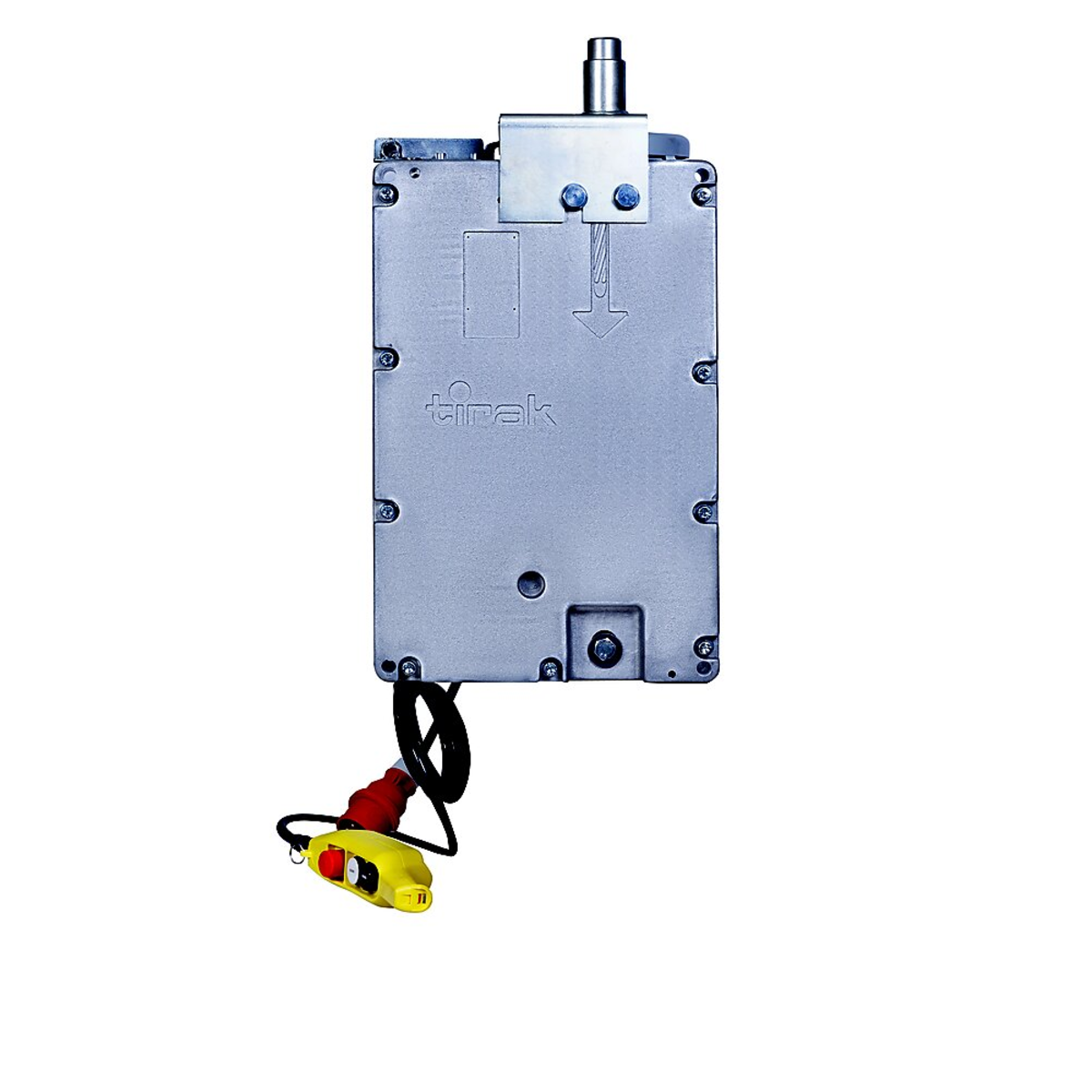

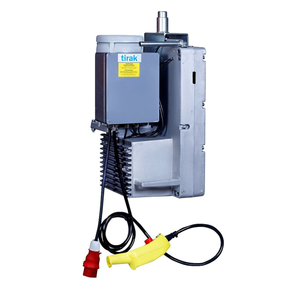

For industrial lifting tasks that demand both strength and reliability, the Tirak X1020 from Tractel delivers. Designed for heavy-duty material handling, this hoist combines powerful performance, precise control, and long-term durability for construction, maintenance, and suspended access applications.

Product Description:

The Tirak X1020 offers premium lifting capabilities with a three-phase motor rated at 18 amps, moving loads at a consistent speed of 35 feet per minute (11 m/min). Its pass-through wire rope design ensures the rope is never stored inside the hoist, giving you virtually unlimited lifting height — ideal for tall structures, scaffold systems, or multi-level projects.

The hoist uses a traction drive system with internal rollers, maintaining constant speed regardless of load position, for smooth, stable lifting even when handling uneven or shifting loads. Its rugged construction, including a reliable gearbox and electromagnetic braking system, ensures long service life with minimal maintenance.

Safety is built-in with features such as an automatic electromagnetic brake, emergency stop controls, and phase sequence monitoring. The X1020 can be used for vertical lifts, horizontal pulls, or suspended platform applications, making it a perfect solution for a variety of lifting needs.

Key Specifications

  • Rated Capacity: 1,000 kg (2,200 lb)
  • Motor Type: Three-phase electric motor, 18 A
  • Lifting Speed: 35 ft/min (11 m/min)
  • Rope System: Pass-through traction design for unlimited lift height
  • Drive System: Constant-speed traction with internal roller sheave
  • Braking: Electromagnetic primary brake engages on power loss or control release
  • Controls: Pendant with up/down operation and emergency stop
  • Safety Features: Phase sequence monitoring, emergency stop, optional load-limit configuration
  • Applications: Vertical lifts, horizontal pulls, scaffold and suspended platform operations
  • Maintenance: Low-maintenance design for extended service life

Why Choose the Tirak X1020?

  • Unlimited lift height thanks to the pass-through rope system
  • High-speed, consistent lifting at 35 fpm (11 m/min)
  • Durable and reliable for continuous industrial use
  • Versatile applications — one hoist for lifting, pulling, or platform control
  • Built-in safety systems to protect operators and loads
  • Low-maintenance design ensures long-term performance
Tractel offers various warranties depending on the product, with a general warranty of 24 months on products manufactured by the seller for defects in materials and workmanship. Some specific products, like the tralift™ TT Electric chain hoist, may have a longer 3-year warranty. The warranty typically excludes issues from improper storage, assembly, maintenance, use, or unauthorized modifications and does not cover normal wear or paints.  Key Aspects of a Tractel Warranty:  Duration: The standard warranty period is 24 months (two years) from the date on the order invoice. Coverage: The warranty covers defects in materials and workmanship. Exclusions: The warranty generally does not cover: Improper storage or assembly. Insufficient maintenance or failure to follow operating instructions. Abnormal working conditions. Normal wear and tear. Willful or negligent damage. Modifications or repairs by personnel not certified by Tractel. Paints and coatings. How to Get More Information:  Check Product-Specific Details:  Always refer to the product's documentation or visit the Tractel US website for the exact warranty terms for your specific item. Contact Tractel:  For clarification on a specific warranty or to inquire about a potential claim, contact Tractel directly.
