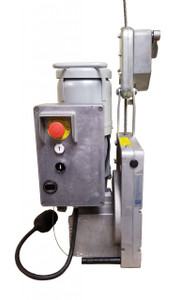

Tractel Tirak™ X-Series Man-Riding Electric Hoist XE2553P1 – 5,500 lb Capacity, 480V Three-Phase - 269479K

Product Description

The Tractel Tirak™ X-Series Man-Riding Electric Hoist XE2553P1 is a high-performance hoist that was engineered for special-application man-riding and heavy-duty material lifting, where flexibility, precision, and safety are critical. Designed for certified personnel lifting. This model is equipped with the BSO 2550 overspeed safety device that automatically activates when any unsafe descent speeds are detected. This helps by providing dependable fall protection in demanding environments.

Built to handle substantial loads, the XE2553P1 offers an impressive 5,500 lb (2,500 kg) lifting capacity. Its dual lifting speeds of 22 and 44 fpm, gives operators the ability to choose between controlled precision for positioning, or faster travel for efficiency. This makes it ideal for complex or variable jobsite requirements. Powered by 480V three-phase electricity, this hoist delivers strong, efficient motor performance with reduced current draw, ensuring reliable operation in industrial power systems.

The hoist operates using a 5/16 in. wire rope and Tractel’s proven friction-drive lifting technology, allowing for unlimited lifting height, limited only by rope length. This system provides consistent traction, smooth load control, and reduced rope wear, even during continuous operation or frequent starts and stops.

The XE2553P1 is made for special industrial applications, including maintenance platforms, construction access, offshore or plant environments, and engineered vertical access systems requiring both high capacity and certified man-riding safety.

Specifications

• Capacity: 5,500 lbs (2,500 kg)

• Hoist Type: Man-riding electric wire rope hoist

• Model: XE2553P1

• Power Supply: 480V, three phase

• Current Draw: 13.1 A

• Lifting Speeds: 22 / 44 ft/min (dual speed)

• Wire Rope Diameter: 5/16 in.

• Safety Device: BSO 2550 overspeed device included

• Drive System: Friction drive for unlimited lifting height

• Application Type: Special applications, heavy industrial man-riding
