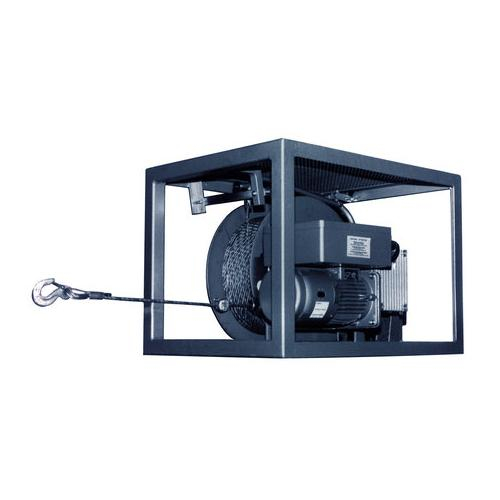

Tractel Mobile GripWinch® MG1020-50 Wire Rope Hoist — 1,000 kg (2,200 lb) Capacity, Three-Phase, 33 fpm (10 m/min)

The Mobile GripWinch MG1020-50 is a robust hoist built for lifting and pulling tasks that demand reliability and consistent performance. A simple design and durable construction make it ideal for construction, maintenance, and industrial applications.

Product Description

Powered by a three-phase motor rated at 9.4 amps, the MG1020-50 lifts loads up to 1,000 kg (2,200 lb) at a steady speed of 33 ft/min (10 m/min). It accommodates up to 160 ft (50 m) of 5/16 in. (8.4 mm) wire rope, giving operators flexibility for longer lifts or different jobsite requirements.

The traction-based drive ensures smooth, consistent lifting. The hoist is compact and rugged, making it easy to transport and set up. Simple controls allow safe operation, while automatic braking and load control enhance operator safety.

Designed for reliability and low maintenance, the MG1020-50 keeps downtime to a minimum, making it a dependable choice for a variety of lifting applications.

Key Specifications

• Rated Capacity: 1,000 kg (2,200 lb)
• Motor Type: Three-phase electric motor, 9.4 A
• Lifting Speed: 33 ft/min (10 m/min)
• Maximum Wire Rope Length: 160 ft (50 m)
• Wire Rope Diameter: 5/16 in. (8.4 mm)
• Drive System: Traction-based for smooth lifting and pulling
• Controls: Easy up/down operation
• Safety Features: Automatic brake, load control
• Applications: Mobile lifting, pulling, scaffold or material handling
• Maintenance: Low-maintenance design for long-term reliability

Why Choose the Mobile GripWinch MG1020-50?

• Smooth, consistent lifting for mid-range loads
• Portable and rugged design for versatile jobsite use
• Built-in safety features protect operators and loads
• Low-maintenance design ensures long-term performance
