Tractel Tirak™ X-Series Man-Riding Electric Hoist XE1020P2 – 2,200 lb Capacity, 220V Three-Phase - 33779K2

Product Description

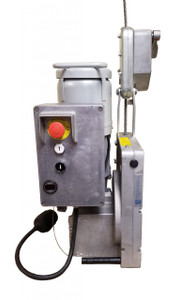

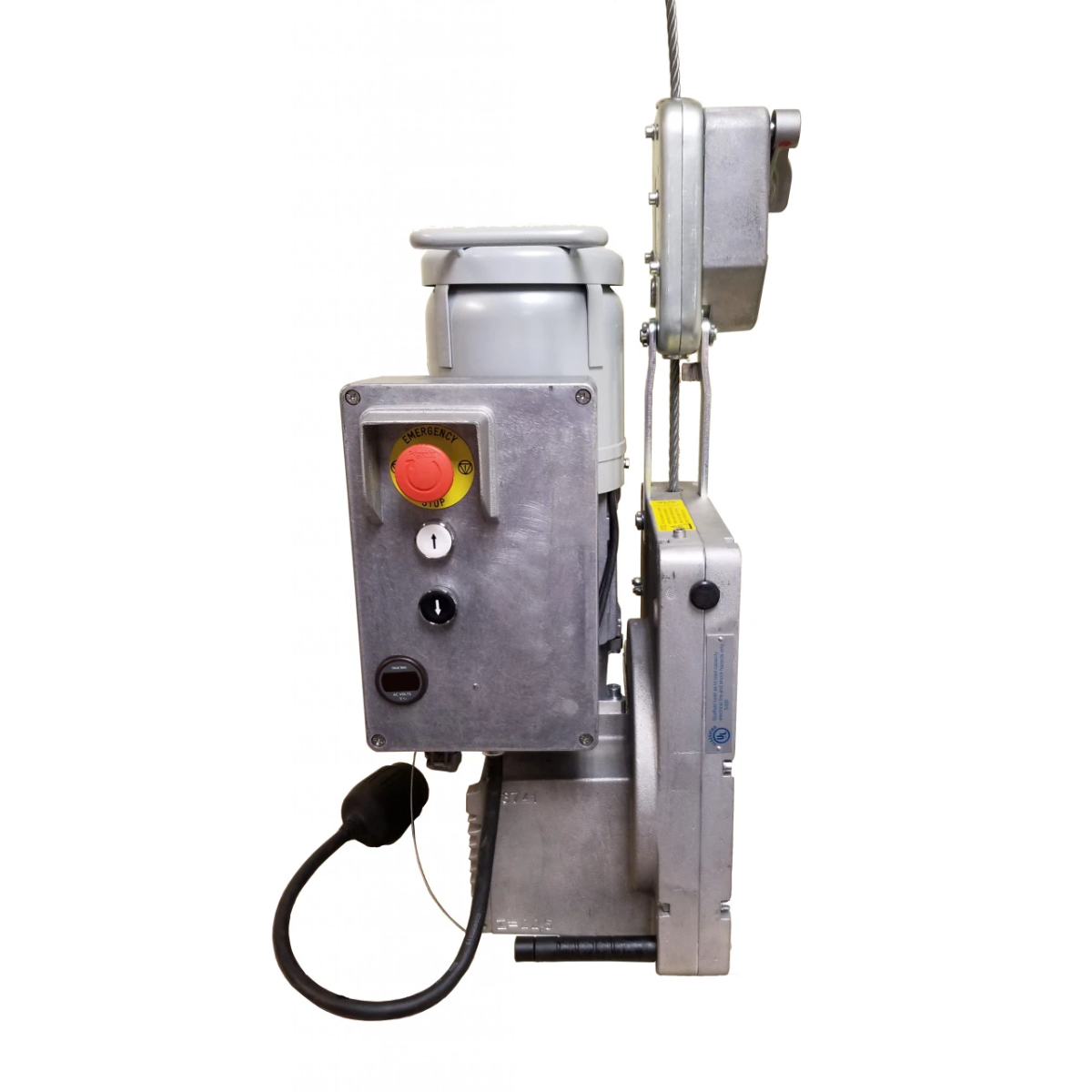

The Tractel Tirak™ X-Series Man-Riding Electric Hoist XE1020P2 is a high-capacity vertical access solution engineered for safe personnel lifting and demanding material handling in industrial, construction, and maintenance applications. Certified for man-riding use. This hoist is equipped with the BS/BSO 500 overspeed safety device that automatically engages if excessive descent speed is detected. This delivers dependable fall protection for operators working at height.

With a 2,200 lb (998 kg) lifting capacity and a 35 feet per minute lifting speed, the XE1020P2 provides smooth, controlled vertical movement that supports both productivity and safety. Powered by 220V three-phase electricity, this model offers efficient motor performance, reduced current draw, and reliable operation for continuous-use industrial environments.

The hoist utilizes a 3/8 in. wire rope and a friction-drive lifting system that allows for unlimited lifting height, limited only by rope length. This proven design ensures consistent traction, precise load control, and reduced rope wear, even during frequent positioning and heavy-duty operation.

Built with a compact yet rugged design, the XE1020P2 supports both temporary and permanent installations. It is an ideal choice for various vertical access systems that need certified man-riding safety and higher lifting capacity.

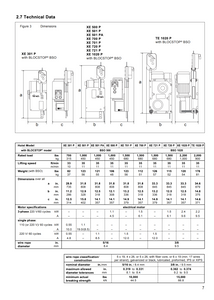

Specifications

• Capacity: 2,200 lbs (998 kg)

• Hoist Type: Man-riding electric wire rope hoist

• Model: XE1020P2

• Power Supply: 220V, three phase

• Current Draw: 10 A

• Lifting Speed: 35 ft/min

• Wire Rope Diameter: 3/8 in.

• Safety Device: BS/BSO 500 overspeed device included

• Drive System: Friction drive for unlimited lifting height

• Typical Applications: Man-riding access, heavy-duty maintenance, inspection, construction, industrial vertical access
