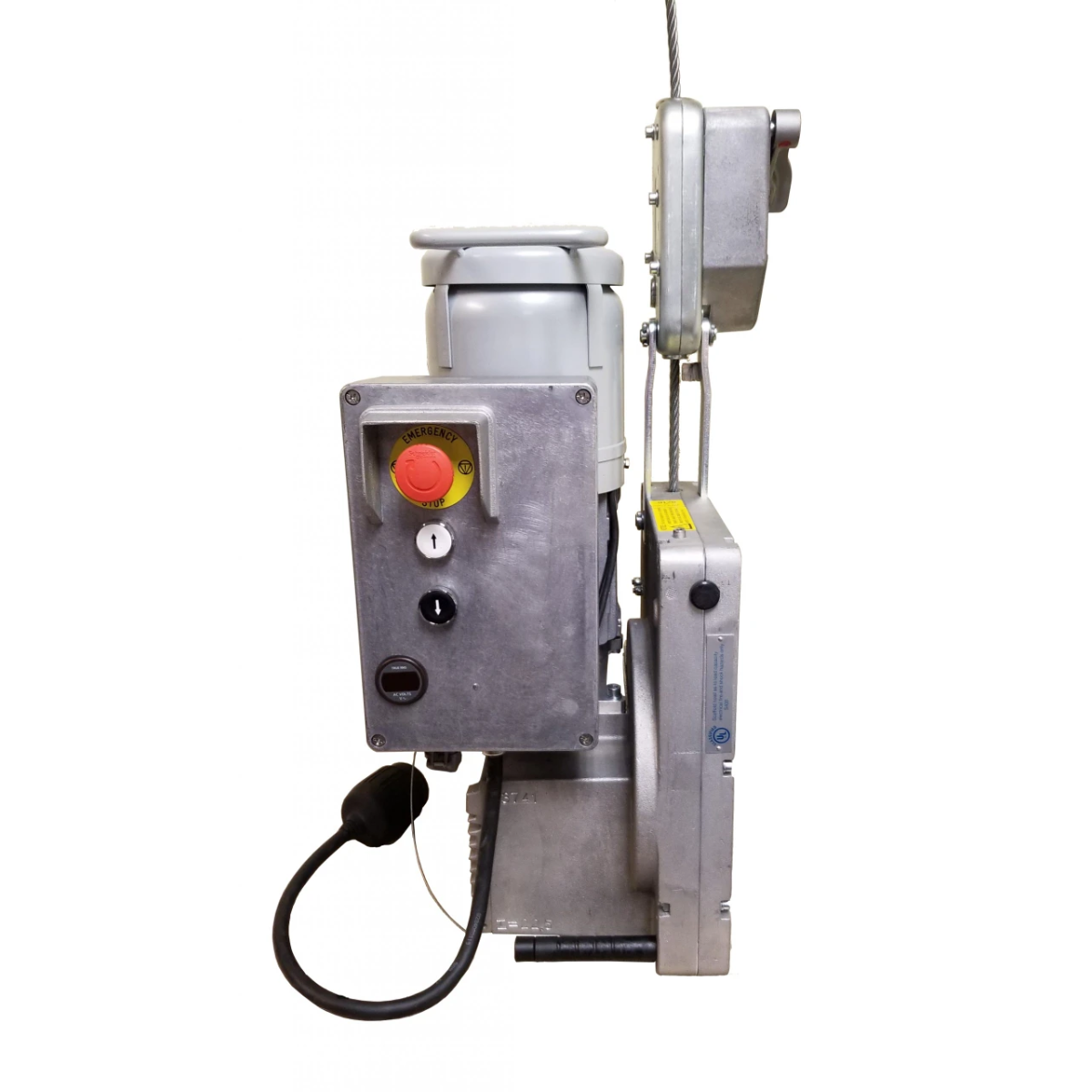

Tractel Tirak™ X-Series Man-Riding Electric Hoist XE1020P1 – 2,200 lb Capacity, 220V Three-Phase - 33779K

Product Description

The Tractel Tirak™ X-Series Man-Riding Electric Hoist XE1020P1 is a heavy-duty vertical access solution engineered for safe personnel lifting and high-capacity material handling in demanding industrial and construction environments. Designed for certified man-riding applications. This hoist is equipped with the BSO 1020 overspeed safety device that automatically engages if excessive descent speed is detected, giving you reliable fall protection for your operators.

With a 2,200 lb (998 kg) lifting capacity and a smooth 35 feet per minute lifting speed. The XE1020P1 gives users controlled vertical movement for elevated work tasks. Powered by 220V three-phase electric motor. This model gives users strong motor performance, reduced current draw, and consistent operation, and makes it perfect for industrial power systems.

The hoist operates using a 3/8 in. wire rope and a friction-drive lifting system that gives you unlimited lifting height, limited only by the rope length. This design gives operators dependable traction, load control, and reduced rope wear. This makes it perfect for various industrial access applications where reliability and safety are needed.

The XE1020P1 supports both temporary and permanent installations and gives users long-term performance in harsh working conditions.

Specifications

• Capacity: 2,200 lbs (998 kg)

• Hoist Type: Man-riding electric wire rope hoist

• Model: XE1020P1

• Power Supply: 220V, three phase

• Current Draw: 10 A

• Lifting Speed: 35 ft/min

• Wire Rope Diameter: 3/8 in.

• Safety Device: BSO 1020 overspeed device included

• Drive System: Friction drive for unlimited lifting height

• Typical Applications: Man-riding access, heavy-duty maintenance, inspection, construction, industrial vertical access systems
