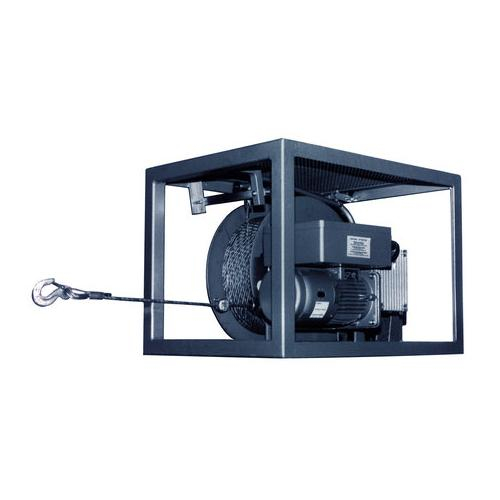

Tractel Mobile GripWinch® MG506-50 Wire Rope Hoist — 500 kg (1,100 lb) Capacity, Two-Speed, Three-Phase
Tractel Mobile GripWinch® MG506-50 Wire Rope Hoist — 500 kg (1,100 lb) Capacity, Two-Speed, Three-Phase

  • Guaranteed Fitment

    Always the correct part

  • In-House Experts

    We know our products

  • Added Value

    FREE in house engineering and design assistance

  • Wordwide Delivery

    Free shipping on all Harrington orders over 500LBS

Tractel Mobile GripWinch® MG506-50 Wire Rope Hoist — 500 kg (1,100 lb) Capacity, Two-Speed, Three-Phase

Write a Review
$33,648.99
SKU: MG506-50
Weight: 160.00 LBS
Width: 22.00 (in)
Height: 29.10 (in)
Depth: 18.90 (in)
Shipping: Calculated at Checkout
Adding to cart… The item has been added
Tractel Mobile GripWinch® MG506-50 Wire Rope Hoist — 500 kg (1,100 lb) Capacity, Two-Speed, Three-Phase

Tractel Mobile GripWinch® MG506-50 Wire Rope Hoist — 500 kg (1,100 lb) Capacity, Two-Speed, Three-Phase

$33,648.99
Description

Tractel Mobile GripWinch® MG506-50 Wire Rope Hoist — 500 kg (1,100 lb) Capacity, Two-Speed, Three-Phase, 17/70 fpm (5/21 m/min)

The Mobile GripWinch MG506-50 is designed for heavy-duty lifting and pulling applications that require versatility and speed control. Its dual-speed operation and portable design make it ideal for construction, maintenance, and industrial material handling tasks where flexibility is key.

Product Description

The MG506-50 features a three-phase electric motor rated at 3.7/9 amps, capable of lifting loads up to 500 kg (1,100 lb) at two selectable speeds: 17 ft/min (5 m/min) for precision and 70 ft/min (21 m/min) for faster lifts. It accommodates up to 160 ft (50 m) of 5/16 in. (8.4 mm) wire rope, giving you flexibility for longer lifts or varying jobsite requirements.

The traction-based drive ensures smooth, consistent operation across both speeds, while the hoist’s compact, rugged design makes it easy to transport and install. Simple controls let operators lift or lower loads safely and efficiently.

Hoist has safety features that include an automatic braking system and load control, allowing operators to work confidently. The MG506-50 is designed for minimal maintenance, keeping downtime low and reliability high.

Key Specifications

  • Rated Capacity: 500 kg (1,100 lb)
  • Motor Type: Two-speed, three-phase electric motor, 3.7/9 A
  • Lifting Speeds: 17 / 70 ft/min (5 / 21 m/min)
  • Maximum Wire Rope Length: 160 ft (50 m)
  • Wire Rope Diameter: 5/16 in. (8.4 mm)
  • Drive System: Traction-based for smooth lifting and pulling
  • Controls: Easy up/down operation
  • Safety Features: Automatic brake, load control
  • Applications: Mobile lifting, pulling, scaffold or material handling
  • Maintenance: Low-maintenance design for long-term use

Why Choose the Mobile GripWinch MG506-50?

  • Dual-speed operation for both precision and fast lifts
  • Smooth, controlled lifting at any rope length
  • Portable and durable design for versatile jobsite use
  • Built-in safety features for operator protection
  • Low-maintenance design ensures long-lasting performance
Warranty Information
Tractel offers various warranties depending on the product, with a general warranty of 24 months on products manufactured by the seller for defects in materials and workmanship. Some specific products, like the tralift™ TT Electric chain hoist, may have a longer 3-year warranty. The warranty typically excludes issues from improper storage, assembly, maintenance, use, or unauthorized modifications and does not cover normal wear or paints.  Key Aspects of a Tractel Warranty:  Duration: The standard warranty period is 24 months (two years) from the date on the order invoice. Coverage: The warranty covers defects in materials and workmanship. Exclusions: The warranty generally does not cover: Improper storage or assembly. Insufficient maintenance or failure to follow operating instructions. Abnormal working conditions. Normal wear and tear. Willful or negligent damage. Modifications or repairs by personnel not certified by Tractel. Paints and coatings. How to Get More Information:  Check Product-Specific Details:  Always refer to the product's documentation or visit the Tractel US website for the exact warranty terms for your specific item. Contact Tractel:  For clarification on a specific warranty or to inquire about a potential claim, contact Tractel directly.
