Tractel MG506-500 Mobile Gripwinch Wire Rope Hoists
Tractel MG506-500 Mobile Gripwinch Wire Rope Hoists

  • Guaranteed Fitment

    Always the correct part

  • In-House Experts

    We know our products

  • Added Value

    FREE in house engineering and design assistance

  • Wordwide Delivery

    Free shipping on all Harrington orders over 500LBS

Tractel MG506-500 Mobile Gripwinch Wire Rope Hoists

Write a Review
$43,020.00
$34,953.75
(You save $8,066.25 )
SKU: MG506-500
Weight: 160.00 LBS
Width: 29.10 (in)
Height: 22.00 (in)
Depth: 18.90 (in)
Shipping: Calculated at Checkout
Adding to cart… The item has been added
Tractel MG506-500 Mobile Gripwinch Wire Rope Hoists

Tractel MG506-500 Mobile Gripwinch Wire Rope Hoists

$43,020.00
$34,953.75
(You save $8,066.25 )
Description

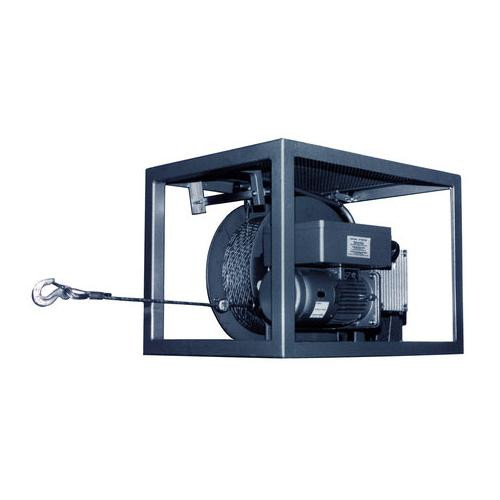

Tractel Mobile GripWinch® MG506-500 Wire Rope Hoist — 500 kg (1,100 lb) Capacity, Two-Speed, Three-Phase, 17/70 fpm (5/21 m/min)

The Mobile GripWinch MG506-500 is a powerful, versatile hoist designed for lifting and pulling applications where both precision and speed are required. Its dual-speed capability and extended rope capacity make it ideal for construction, industrial, and maintenance projects with long-reach requirements.

Product Description

Equipped with a three-phase motor rated at 3.7/9 amps, the MG506-500 lifts up to 500 kg (1,100 lb) at two selectable speeds: 17 ft/min (5 m/min) for controlled, precise lifting and 70 ft/min (21 m/min) for faster operation. The hoist accommodates up to 1,640 ft (500 m) of 5/16 in. (8.4 mm) wire rope or 1,312 ft (400 m) of 3/8 in. (9.5 mm) wire rope, providing flexibility for long lifts or variable jobsite setups.

Its traction-based drive ensures smooth, consistent operation at both speeds. Compact and rugged, the MG506-500 is easy to transport and install. Simple up/down controls, automatic braking, and load control allow safe and efficient operation even for extended lifts.

Built for reliability and minimal maintenance, this hoist reduces downtime while delivering dependable long-reach performance.

Key Specifications

  • Rated Capacity: 500 kg (1,100 lb)
  • Motor Type: Two-speed, three-phase electric motor, 3.7/9 A
  • Lifting Speeds: 17 / 70 ft/min (5 / 21 m/min)
  • Maximum Wire Rope Length: 1,640 ft (500 m) with 5/16 in. (8.4 mm) wire rope
  • Maximum Wire Rope Length: 1,312 ft (400 m) with 3/8 in. (9.5 mm) wire rope
  • Drive System: Traction-based for smooth lifting and pulling
  • Controls: Easy up/down operation
  • Safety Features: Automatic brake, load control
  • Applications: Long-reach mobile lifting, pulling, scaffold or material handling
  • Maintenance: Low-maintenance design for reliable long-term use

Why Choose the Mobile GripWinch MG506-500?

  • Dual-speed operation for precision or fast lifts
  • Long-reach lifting capability for extended applications
  • Smooth, controlled performance at all rope lengths
  • Portable and rugged design for versatile jobsite use
  • Built-in safety features ensure operator protection
  • Low-maintenance design delivers reliable performance
Warranty Information
All products manufactured by the Seller are covered against defects in materials and workmanship for a period of twenty-four (24) months from the date appearing on the order invoice. The warranty does not cover defects arising because of improper storage, damages resulting from improper assembly after delivery, insufficient maintenance, and failure to follow operating instructions, abnormal working conditions, normal wear or willful or negligent damage. It does not apply to paints and coatings. The warranty does not apply to any product which is modified, altered, repaired or maintained by personnel not certified by the Seller. The Seller's liability is expressly limited to the above-mentioned warranty. Any products or parts shipped as the result of a warranty claim will be invoiced according to the terms and conditions set forth above. That invoice will be due and payable as described in payment terms described above. A credit will be issued only after 1) Fabenco Inc determines the warranty claim is valid, 2) the defective part or product is returned to Fabenco Inc and 3) the equipment is returned within twenty-four (24) months of date sold to the original purchaser. Freight to and from the Fabenco Inc warehouse is the responsibility of the Buyer. Any shipments not prepaid will be refused.
