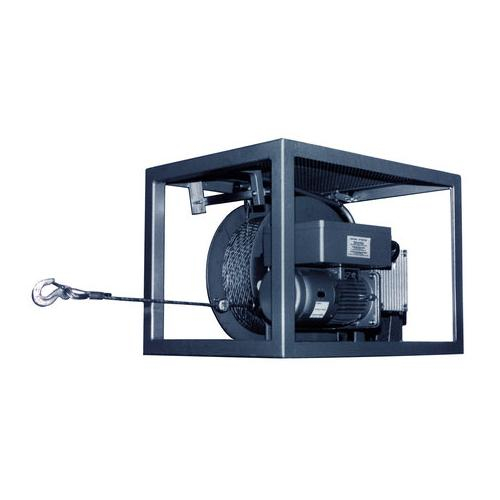

Tractel Mobile GripWinch® MG500-500 Wire Rope Hoist — 500 kg (1,100 lb) Capacity, Single-Phase

Write a Review
$34,864.99
SKU: MG500-500
Weight: 160.00 LBS
Width: 29.10 (in)
Height: 22.00 (in)
Depth: 18.90 (in)
Shipping: Calculated at Checkout
Adding to cart… The item has been added
Tractel Mobile GripWinch® MG500-500 Wire Rope Hoist — 500 kg (1,100 lb) Capacity, Single-Phase

Tractel Mobile GripWinch® MG500-500 Wire Rope Hoist — 500 kg (1,100 lb) Capacity, Single-Phase

$34,864.99

Tractel Mobile GripWinch® MG500-500 Wire Rope Hoist — 500 kg (1,100 lb) Capacity, Single-Phase, 33 fpm (10 m/min)

The Mobile GripWinch MG500-500 is a heavy-duty, high-capacity hoist designed for long-reach lifting and pulling applications. Its single-phase motor, portable design, and versatile wire rope options make it ideal for construction, industrial, and maintenance projects requiring extended lifting distances.

Product Description

Powered by a single-phase motor rated at 8.7 amps, the MG500-500 lifts up to 500 kg (1,100 lb) at a steady speed of 33 ft/min (10 m/min). It accommodates up to 1,640 ft (500 m) of 5/16 in. (8.4 mm) wire rope or 1,312 ft (400 m) of 3/8 in. (9.5 mm) wire rope, giving operators flexibility for long lifts or varying jobsite needs.

The traction-based drive ensures smooth, consistent lifting and pulling. Compact yet rugged, the MG500-500 is portable and easy to set up. Simple up/down controls, along with automatic braking and load control, allow safe and efficient operation even for extended lifts.

Built for reliability and low maintenance, this hoist minimizes downtime while delivering dependable performance for demanding long-distance applications.

Key Specifications

  • Rated Capacity: 500 kg (1,100 lb)
  • Motor Type: Single-phase electric motor, 8.7 A
  • Lifting Speed: 33 ft/min (10 m/min)
  • Maximum Wire Rope Length: 1,640 ft (500 m) with 5/16 in. (8.4 mm) wire rope
  • Maximum Wire Rope Length: 1,312 ft (400 m) with 3/8 in. (9.5 mm) wire rope
  • Drive System: Traction-based for smooth lifting and pulling
  • Controls: Easy up/down operation
  • Safety Features: Automatic brake, load control
  • Applications: Long-reach mobile lifting, pulling, scaffold or material handling
  • Maintenance: Low-maintenance design for reliable long-term use

Why Choose the Mobile GripWinch MG500-500?

  • High-capacity, long-reach lifting for extended applications
  • Smooth, controlled operation over long distances
  • Portable and rugged for versatile jobsite use
  • Built-in safety features protect operators and loads
  • Low-maintenance design ensures consistent, reliable performance
Tractel offers various warranties depending on the product, with a general warranty of 24 months on products manufactured by the seller for defects in materials and workmanship. Some specific products, like the tralift™ TT Electric chain hoist, may have a longer 3-year warranty. The warranty typically excludes issues from improper storage, assembly, maintenance, use, or unauthorized modifications and does not cover normal wear or paints.  Key Aspects of a Tractel Warranty:  Duration: The standard warranty period is 24 months (two years) from the date on the order invoice. Coverage: The warranty covers defects in materials and workmanship. Exclusions: The warranty generally does not cover: Improper storage or assembly. Insufficient maintenance or failure to follow operating instructions. Abnormal working conditions. Normal wear and tear. Willful or negligent damage. Modifications or repairs by personnel not certified by Tractel. Paints and coatings. How to Get More Information:  Check Product-Specific Details:  Always refer to the product's documentation or visit the Tractel US website for the exact warranty terms for your specific item. Contact Tractel:  For clarification on a specific warranty or to inquire about a potential claim, contact Tractel directly.
