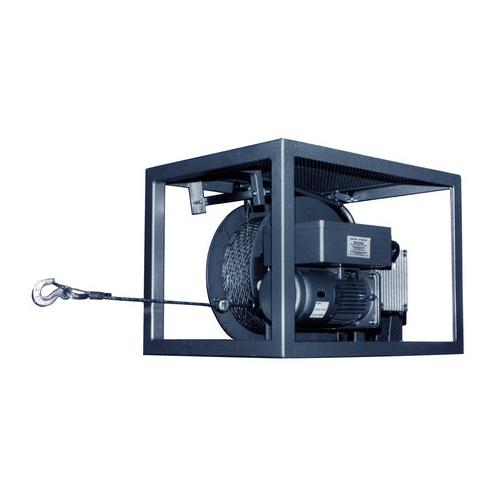

Tractel Mobile GripWinch® MG1025-500 Wire Rope Hoist — 1,000 kg (2,200 lb) Capacity, Two-Speed, Three-Phase Motor

The Mobile GripWinch MG1025-500 is designed for demanding lifting and pulling operations where versatility and precision are essential. With a 1,000 kg (2,200 lb) load capacity, this hoist combines strength with controlled performance, making it well-suited for industrial, construction, and utility applications.

Product Description

Hoist uses a two-speed, three-phase electric motor rated at 6.4/8 amps, the MG1025-500 gives operators the flexibility to choose between 17 ft/min (5 m/min) for precise handling or 33 ft/min (10 m/min) for efficient lifting. This adaptability allows for safe operation whether handling delicate loads or moving material quickly.

The unit is built to handle extended reach applications with a maximum wire rope capacity of 1,640 ft (500 m) when using 5/16 in. (8.4 mm) rope or 1,312 ft (400 m) when using 3/8 in. (9.5 mm) rope. With its traction drive system, automatic braking, and durable construction, the MG1025-500 delivers reliable service under tough conditions.

Key Specifications

• Rated Capacity: 1,000 kg (2,200 lb)
• Motor Type: Two-speed, three-phase electric motor (6.4/8 A)
• Lifting Speeds: 17 ft/min (5 m/min) and 33 ft/min (10 m/min)
• Maximum Wire Rope Capacity:
  • 1,640 ft (500 m) with 5/16 in. (8.4 mm) wire rope
  • 1,312 ft (400 m) with 3/8 in. (9.5 mm) wire rope
• Drive System: Traction-based for smooth, consistent load movement
• Safety Features: Automatic braking, secure load control
• Applications: Long-distance lifting, pulling, and material handling across industrial, construction, and utility sectors
• Design: Heavy-duty build with low-maintenance operation
