Tractel MG503-500 Mobile Gripwinch Wire Rope Hoists

Write a Review
$40,990.00
$33,304.38
(You save $7,685.62 )
SKU: MG503-500
Weight: 160.00 LBS
Width: 29.10 (in)
Height: 22.00 (in)
Depth: 18.90 (in)
Shipping: Calculated at Checkout
Adding to cart… The item has been added
Tractel MG503-500 Mobile Gripwinch Wire Rope Hoists

Tractel MG503-500 Mobile Gripwinch Wire Rope Hoists

$40,990.00
$33,304.38
(You save $7,685.62 )
Description

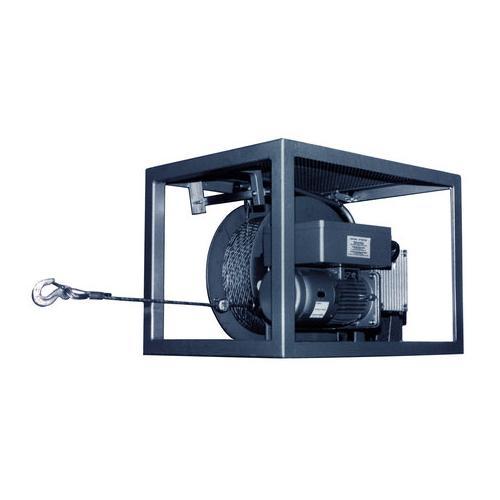

Tractel Mobile GripWinch® MG503-500 Wire Rope Hoist — 500 kg (1,100 lb) Capacity, Two-Speed, Three-Phase, 33/70 fpm (10/21 m/min)

The Mobile GripWinch MG503-500 is a high-performance hoist designed for lifting and pulling applications where speed, precision, and extended reach are required. Its dual-speed functionality and long rope capacity make it ideal for construction, industrial, and maintenance projects with varying lift requirements.

Product Description

Equipped with a three-phase motor rated at 5.5/10 amps, the MG503-500 lifts up to 500 kg (1,100 lb) at two selectable speeds: 33 ft/min (10 m/min) for controlled lifting and 70 ft/min (21 m/min) for faster operation. The hoist accommodates up to 1,640 ft (500 m) of 5/16 in. (8.4 mm) wire rope or 1,312 ft (400 m) of 3/8 in. (9.5 mm) wire rope, providing flexibility for long lifts and various jobsite setups.

Its traction-based drive ensures smooth and reliable lifting across both speeds. Compact and rugged, the MG503-500 is easy to transport and set up. Simple up/down controls, combined with automatic braking and load control, provide users with safe and efficient operation for extended tasks.

With minimal maintenance requirements, this hoist delivers reliable long-reach performance while reducing downtime.

Key Specifications

  • Rated Capacity: 500 kg (1,100 lb)
  • Motor Type: Two-speed, three-phase electric motor, 5.5/10 A
  • Lifting Speeds: 33 / 70 ft/min (10 / 21 m/min)
  • Maximum Wire Rope Length: 1,640 ft (500 m) with 5/16 in. (8.4 mm) wire rope
  • Maximum Wire Rope Length: 1,312 ft (400 m) with 3/8 in. (9.5 mm) wire rope
  • Drive System: Traction-based for smooth lifting and pulling
  • Controls: Easy up/down operation
  • Safety Features: Automatic brake, load control
  • Applications: Long-reach mobile lifting, pulling, scaffold or material handling
  • Maintenance: Low-maintenance design for reliable long-term use

Why Choose the Mobile GripWinch MG503-500?

  • Dual-speed operation for precise or fast lifts
  • Long-reach capability for extended applications
  • Smooth, consistent performance at all rope lengths
  • Portable and rugged design for versatile jobsite use
  • Built-in safety features for operator protection
  • Low-maintenance design ensures reliable performance
Warranty Information
All products manufactured by the Seller are covered against defects in materials and workmanship for a period of twenty-four (24) months from the date appearing on the order invoice. The warranty does not cover defects arising because of improper storage, damages resulting from improper assembly after delivery, insufficient maintenance, and failure to follow operating instructions, abnormal working conditions, normal wear or willful or negligent damage. It does not apply to paints and coatings. The warranty does not apply to any product which is modified, altered, repaired or maintained by personnel not certified by the Seller. The Seller's liability is expressly limited to the above-mentioned warranty. Any products or parts shipped as the result of a warranty claim will be invoiced according to the terms and conditions set forth above. That invoice will be due and payable as described in payment terms described above. A credit will be issued only after 1) Fabenco Inc determines the warranty claim is valid, 2) the defective part or product is returned to Fabenco Inc and 3) the equipment is returned within twenty-four (24) months of date sold to the original purchaser. Freight to and from the Fabenco Inc warehouse is the responsibility of the Buyer. Any shipments not prepaid will be refused.
