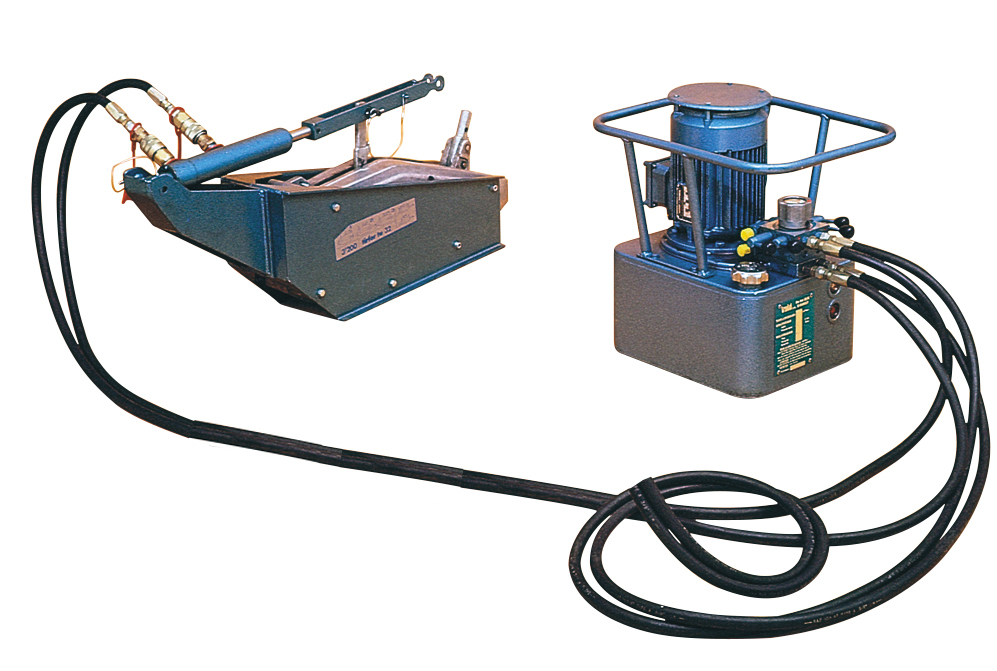

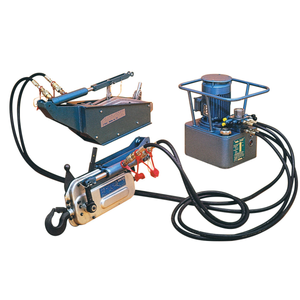

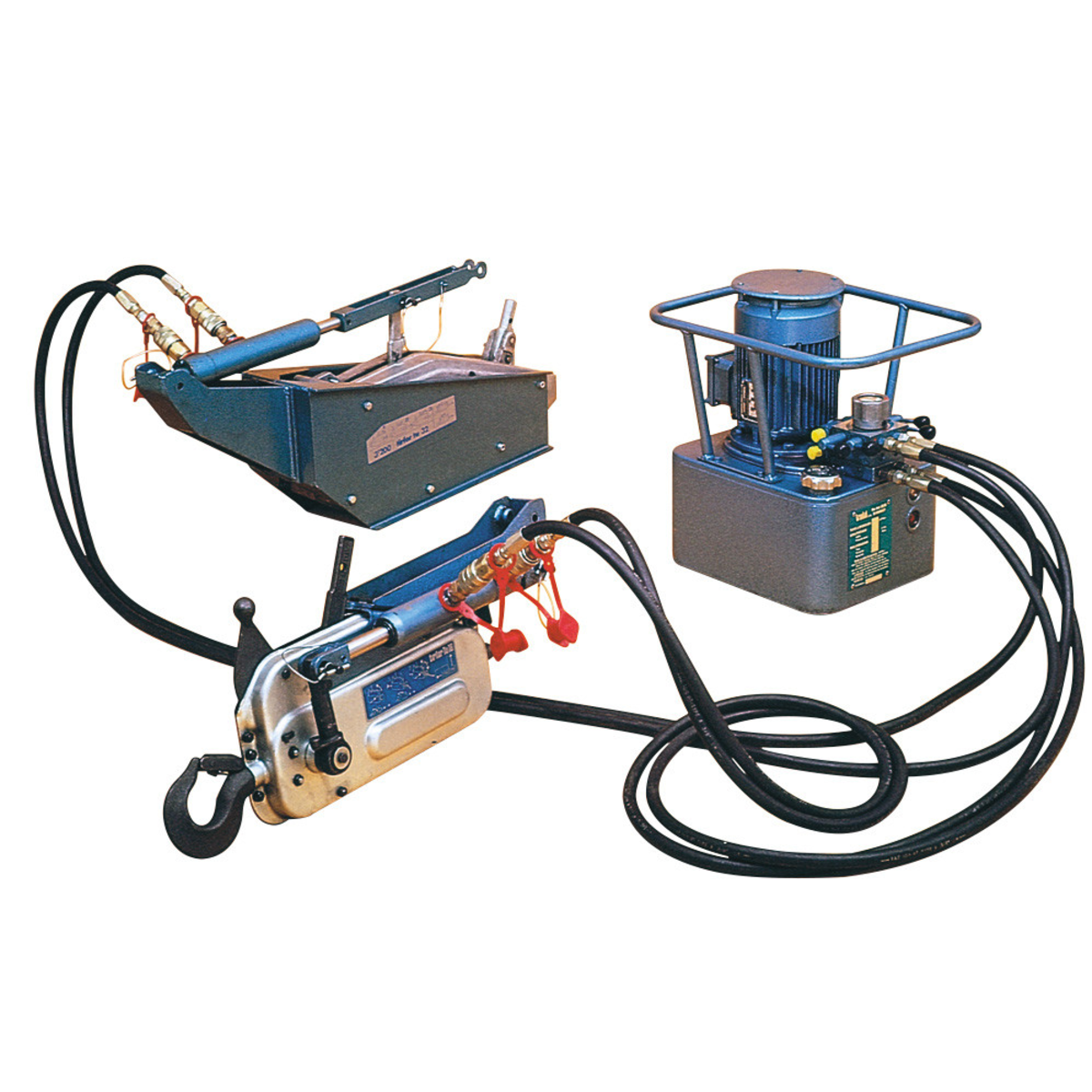

Tractel Griphoist / Tirfor TU32H Hydraulic Wire Rope Hoist – 14,080 lb Capacity

Product Description

The Griphoist / Tirfor TU32H Standard Equipment Complete Kit is a high-capacity hydraulic-powered hoist designed for the most demanding lifting, pulling, and positioning tasks. With a nominal capacity of 14,080 lb (6,400 kg), this kit provides professional operators with a reliable, efficient, and portable solution for heavy industrial, construction, utility, and rescue applications.

The TU32H kit features a pass-through wire rope system, allowing virtually unlimited working distances and providing flexibility in horizontal, vertical, or angled operations. Its dual jaw gripping mechanism automatically locks the rope at every stop, ensuring precise load control and maximum safety.

Hydraulic drive significantly reduces operator effort while delivering smooth, controlled rope travel, improving efficiency and reducing fatigue in the field. It's overload protection safeguards both the hoist and personnel, making this kit a versatile and dependable tool for large-scale lifting and pulling operations.

Key Specifications

• Model / SKU: TU32H – 032699003‑C
• Type: Hydraulic Griphoist / Tirfor – Standard Equipment Complete Kit
• Nominal Capacity: 14,080 lb (6,400 kg)
• Wire Rope Compatibility: Pass-through design (virtually unlimited rope length)
• Operation Modes: Horizontal, vertical, or angled lifting and pulling
• Load Holding: Dual jaw gripping system with automatic rope lock during pauses
• Power Source: Hydraulic motor drive
• Overload Protection: Shear pins and hydraulic relief safeguards
• Safety Factor: 4:1 (material handling applications)
• Applications: Heavy construction, industrial rigging, utilities, structural positioning, rescue operations
• Kit Includes: TU32H hydraulic hoist body, hydraulic actuator, control valves, hose connectors, mounting hardware (wire rope sold separately unless specified)
• Compliance: Meets ASME B30.21 standards
