Tractel Griphoist / Tirfor TU32H Hydraulic Wire Rope Hoist – Standard Equipment Complete Kit

Product Description

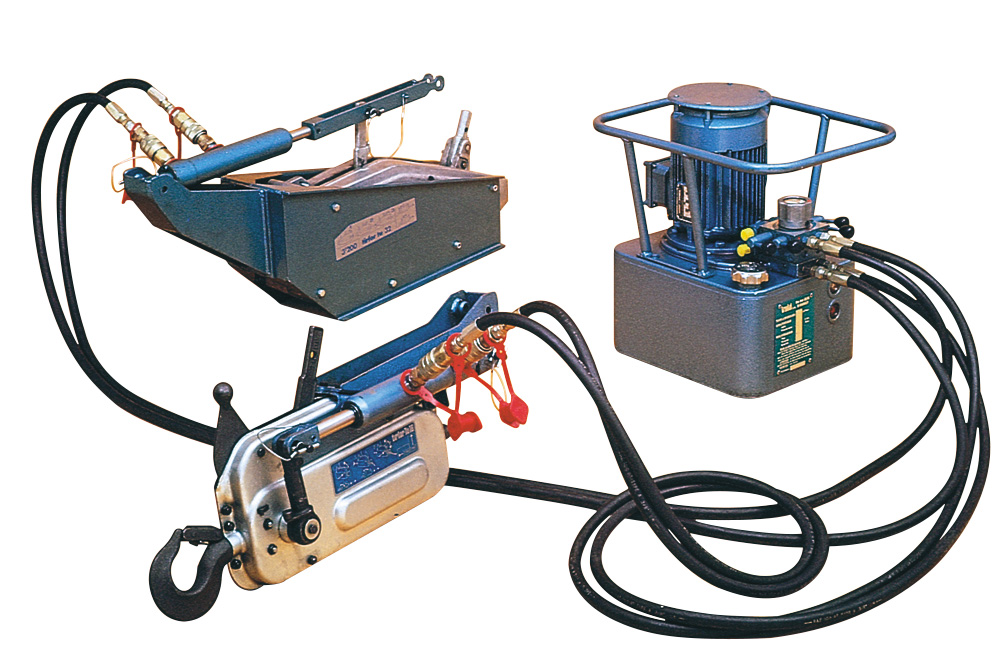

The Griphoist/Tirfor TU32H kit is a hydraulic-powered version of the TU32 lever hoist, packaged as a complete field-deployment system. Designed to provide increased speed, power, and control while retaining the portability and flexibility of manual griphoist systems, the TU32H is ideal for heavy lifting, pulling, and positioning tasks in demanding industrial, rescue, and rigging environments.

This complete kit version (Part 016499003-A) includes all standard components necessary for operation (except wire rope, if ordered separately), and is configured for a capacity of 3,520 lbs (1,600 kg) or intended for light to moderate load tasks under hydraulic assistance. The hydraulic drive mechanism allows operators to move heavier loads more quickly and with less physical effort than purely manual systems. At the same time, the use of the griphoist design (with dual jaw gripping, pass-through rope capability, and rugged construction) ensures precise load control and load-holding whenever the operation is paused.

Ideal for jobs that require speed, repeatability, and reduced operator fatigue, the TU32H kit provides professional users with a ready-to-go rigging solution.

Kit Includes (standard equipment):

1. TU32H hoist body (hydraulic)
2. Hydraulic ram/actuator
3. Control valve and hydraulic interfacing components
4. Hose connectors and routing fittings
5. Mounting hardware, coupling interfaces
6. (Note: wire rope assembly typically sold separately unless included in kit variant)

Key Specifications

• Part / SKU: 016499003-A
• Model: Griphoist / Tirfor TU32H (Hydraulic version)
• Rated Capacity (material handling): 3,520 lb (1,600 kg)
• Drive Type: Hydraulic actuation (with manual mode via override)
• Operation Modes: Horizontal, vertical, or angled pulling/lifting
• Rope Design: Pass-through wire rope (unlimited rope length capability)
• Load Holding Mechanism: Dual jaw gripping system locks the rope when inactive
• Overload Protection: Replaceable shear pins and hydraulic relief control
• Maximum Speed (approx): dependent on hydraulic system configuration
• Weight: (kit base components only) — depends on configuration.
• Safety Features: Built-in overload protection, automatic rope gripping, anti-drift control
• Standards / Compliance: Designed for material handling applications (check with manufacturer for man-riding or personnel lift validation)
