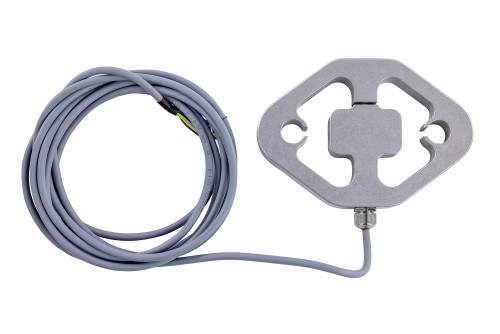

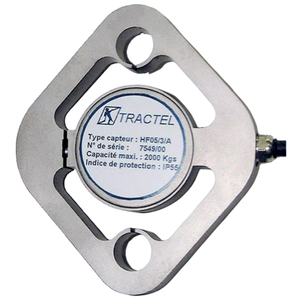

Tractel Dynasafe™ HF 05/4 Tension Load Limiting Cell – 6,400 lb Capacity (Model A, Single Trip Point, No Monitor) - 58298

Product Description

The Tractel Dynasafe™ HF 05/4 Tension Load Limiting Cell has been designed to give operators dependable overload protection for lifting and tensioning systems. This Model A version features a single-trip point microswitch that activates automatically when your preset tension limit is reached. This allows you to shut down equipment, sound an alarm, or trigger a safety interlock—all without an external monitor.

With a 6,400 lb (2,903 kg) capacity, the HF 05/4 is ideal for heavier-duty applications where accurate load monitoring is essential. The unit installs directly into the load path, enabling real-time mechanical overload detection that protects hoists, cranes, winches, overhead lifting systems, and tensioned wire-rope assemblies from dangerous overload conditions.

Engineered for industrial performance, the HF 05/4 delivers rugged durability and long-term accuracy for demanding environments. So if you're maintaining lifting equipment, ensuring OSHA-compliant safeguards, or integrating automated safety cutoffs. This load-limiting cell gives users reliable overload protection that you can count on.

Specifications

• Capacity: 6,400 lbs (2,903 kg)

• Model: A — single trip point

• Switching Device: Built-in micro switch

• Monitor: Not required (self-contained switch activation)

• Load Type: Tension

• Activation: Triggers signal or shutdown at preset load threshold

• Installation: In-line load cell for direct load-path integration

• Recommended Uses: Hoists, cranes, winches, overhead lifting systems, industrial tensioning, safety cutoff circuits
