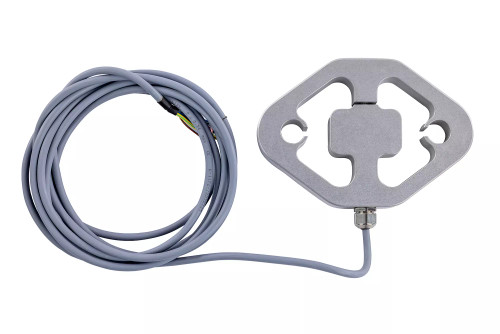

Tractel Dynasafe™ HF 05/1 Tension Load Limiting Cell – 1,000 lb Capacity (Model A, Single Trip Point, No Monitor) - 207238

Product Description

The Tractel Dynasafe™ HF 05/1 Tension Load Limiting Cell is a compact, and highly accurate overload-protection device that has been designed to help you maintain safe lifting and tensioning operations. This model features a single trip point micro switch that activates when a preset load limit is reached, giving you a dependable method to stop equipment, trigger alarms, or initiate safety interlocks—without requiring an external monitor.

With a 1,000 lb (454 kg) capacity, the HF 05/1 is ideal for lighter-duty applications where controlled tension and built-in overload protection are essential. Its high-strength load cell design ensures consistent, repeatable performance, making it well-suited for hoists, cranes, winches, overhead lifting systems, and tensioned wire-rope applications.

Because it installs directly into the load path, the Dynasafe HF 05/1 enables real-time mechanical overload interruption, helping prevent equipment damage and unsafe operating conditions. Users value this model for its accuracy, and easy integration into already existing systems.

Specifications

• Capacity: 1,000 lbs (454 kg)

• Model: A — single trip point

• Switching Device: Integrated micro switch

• Monitor: Not required (stand alone load trip design)

• Function: Stops or signals overload when preset tension limit is reached

• Load Type: Tension

• Installation: In-line load cell for direct load-path integration

• Typical Applications: Hoists, cranes, winches, overhead lifting systems, tensioning operations, safety interlock systems
