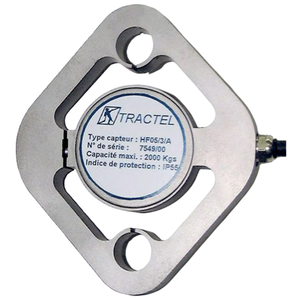

Tractel Dynasafe™ HF 05/2 Tension Load Limiting Cell – 2,500 lb Capacity (Model B, Single Trip Point, With HF 85 Monitor) - 38518

Product Description

The Tractel Dynasafe™ HF 05/2 Tension Load Limiting Cell with Model B configuration has been designed for reliable overload protection and real-time load monitoring in medium-duty lifting and tensioning operations. This unit features a single-trip point micro switch paired with the HF 85 monitor, providing immediate mechanical trip response while displaying the load for operator awareness and safe control.

With a 2,500 lb (1,134 kg) capacity, the HF 05/2 Model B is ideal for medium-duty hoists, winches, cranes, and tensioned wire-rope systems. The device installs directly in-line with the load path, activating the micro switch when the preset tension threshold is reached. The HF 85 monitor improves operational safety by giving operators a real-time readout of the applied load. This lets you make informed decisions, and prevents overload conditions.

Cell has been built for industrial durability. The HF 05/2 combines its solid construction with accurate trip activation, and integrated monitoring. This makes it a trusted solution for professionals that require both load-limiting protection and precise measurement.

Specifications

• Capacity: 2,500 lbs (1,134 kg)

• Model: B — single trip point

• Switching Device: Integrated micro switch

• Monitor: HF 85 included for real-time load display

• Load Type: Tension

• Activation: Triggers at preset load threshold

• Installation: In-line load cell for direct load-path integration

• Typical Applications: Hoists, cranes, winches, overhead lifting systems, tensioned wire ropes, monitored overload protection
