Tractel Dynarope™ HF 37/2/LPT Tensiometer – 6,000 lb (2,722 kg) Capacity - 190018

Product Description

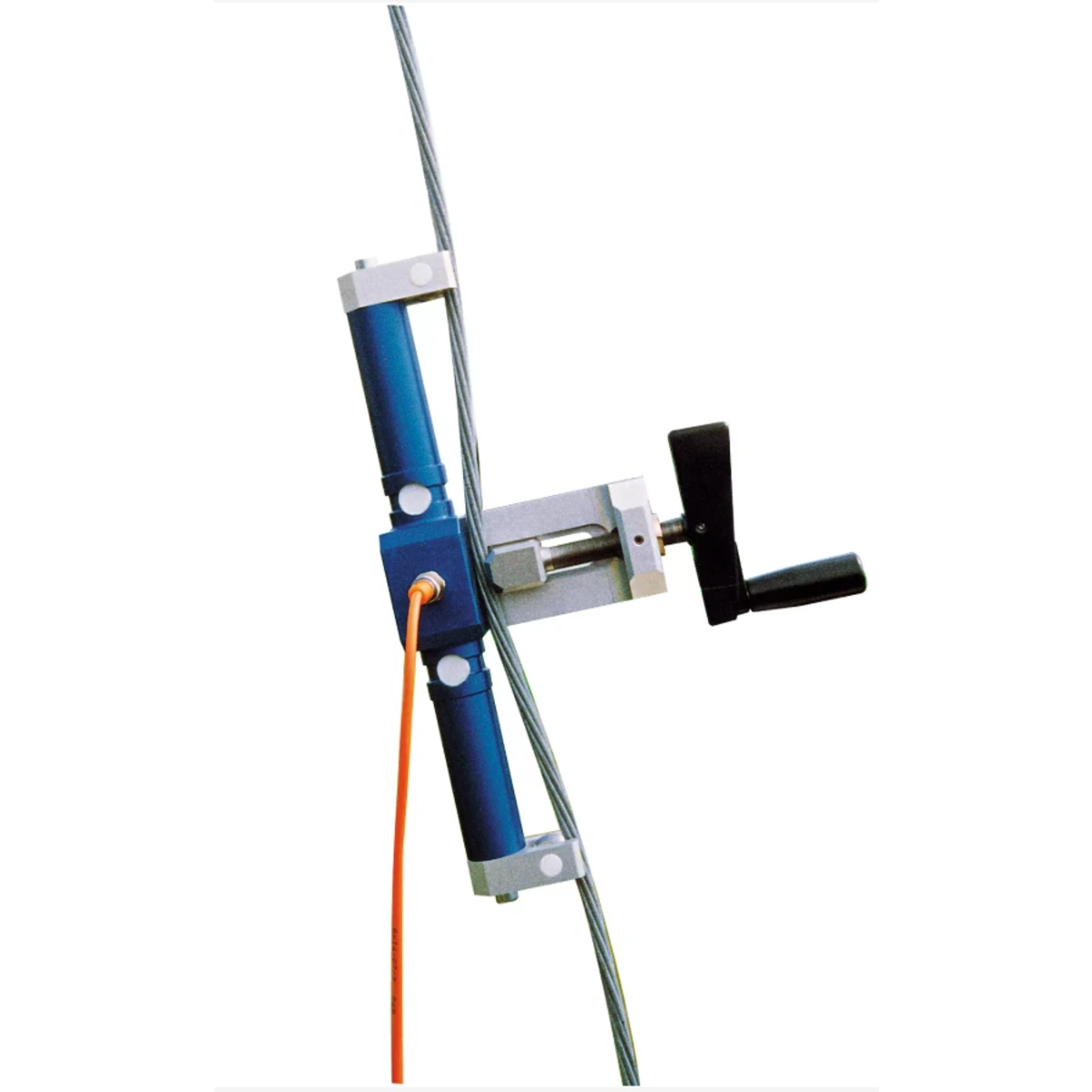

The Tractel Dynarope™ HF 37/2/LPT Tensiometer is a portable device that has been engineered to measure the tension in wire ropes safely and accurately, even when installed in place. Tensionmeter comes with a working load limit of 6,000 lbs (≈ 2,722 kg). This makes it ideal for medium-duty applications, including guy-wires, aerial supports, cable-stay systems, slings, and other tensioned rope systems requiring precise load monitoring.

The tensiometer easily clamps onto wire ropes, providing immediate real-time tension readings via a clear digital display. Its strain-gauge load-cell technology ensures accurate and reliable measurements, making it perfect for inspections, load testing, preventative maintenance, and pre-lift safety checks.

Designed for field use, the Dynarope HF 37/2/LPT is compact, durable, and rugged, capable of withstanding industrial and outdoor conditions while remaining highly portable for professional operators.

Key Benefits

• Non-destructive measurement: Measures tension without dismantling the rope.
• Portable and easy to use: Quick clamp-on installation for field measurements.
• Accurate and reliable: Strain-gauge technology provides precise tension readings.
• Versatile applications: Suitable for inspections, load testing, and pre-lift checks.
• Rugged design: IP65-rated for protection in harsh industrial and outdoor conditions.

Specifications

• Working Load Limit (WLL): 6,000 lbs (≈ 2,722 kg)

• Wire Rope Diameter Range: 1/4" – 1/2" (≈ 6 mm – 13 mm)

• Minimum Display Value: 200 lbs

• Display Increment: 10 lbs

• Accuracy: Typically better than 1% of nominal capacity

• Protection Rating: IP65 — dust and splash resistant

• Typical Applications: Wire rope tension measurement, guy-wires, aerial supports, slings, load testing, inspections, and maintenance
