Tractel Dynarope™ HF 36/2/LPT Tensiometer – 40,000 lb (18,144 kg) Capacity - 187948

Product Description

The Tractel Dynarope™ HF 36/2/LPT Tensiometer is a portable device that has been designed to measure the tension in wire ropes with precision and safety, even when the ropes are already installed. Meter has a working load limit of 40,000 lbs. Meter is ideal for large-scale industrial applications such as guy-wires, cable-stay systems, aerial supports, heavy-duty slings, and other tensioned rope installations.

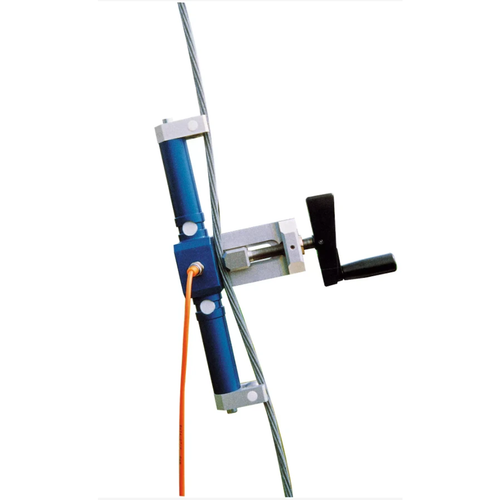

This tensiometer clamps easily onto wire ropes, providing accurate, real-time tension readings without the need to dismantle or disturb the rope system. Its strain-gauge load-cell technology delivers reliable measurements, which are displayed clearly on the digital readout, allowing for quick verification and safe load monitoring.

Rugged and durable, the Dynarope HF 36/2/LPT is designed to withstand harsh industrial environments while remaining portable for easy field use. This tensionmeter is perfect for various industrial applications where precise tension verification is important.

Key Benefits

• Non-destructive measurement: Measures tension without disassembling rope systems.
• High-capacity and portable: Handles up to 40,000 lbs with a compact, field-ready design.
• Accurate and reliable: Strain-gauge technology gives users precise, repeatable readings.
• Versatile: Suitable for heavy lifting, rigging, load testing, and inspection in demanding industrial environments.
• Durable construction: IP65-rated and built to withstand harsh conditions and rough handling.

Specifications

• Working Load Limit (WLL): 40,000 lbs (≈ 18,144 kg)

• Wire Rope Diameter Range: 3/8" – 1" (≈ 10 mm – 25 mm)

• Minimum Display Value: 2,000 lbs

• Display Increment: 50 lbs

• Accuracy: Typically better than 1% of nominal capacity

• Protection Rating: IP65 — dust and splash resistant

• Typical Applications: High-capacity tension measurement on wire ropes, guy-wires, aerial supports, heavy slings, load-bearing cables, industrial load testing, and structural inspections
