Product Overview

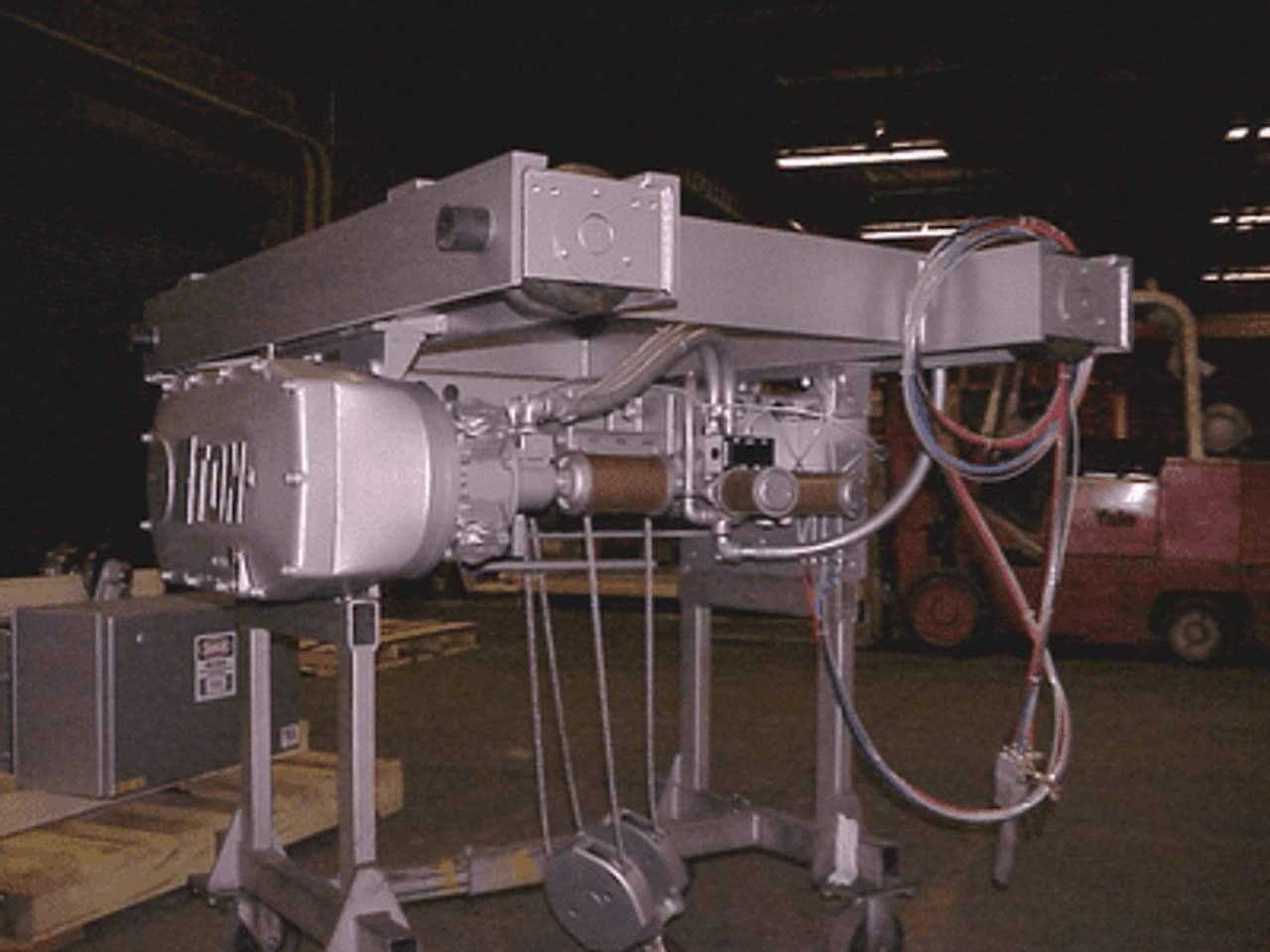

Suspension / Mount: Equipped with a top-running double girder low-profile suspension/mount, this crane provides robust support for lifting operations while maintaining a low profile. It's suitable for environments with limited headroom.
Capacity: With a capacity of 8.25 tons, this crane is designed to handle moderate to heavy loads, making it versatile for various industrial applications.
Reeving / Lift: Featuring 2 part line reeving, this crane can lift loads up to 41 feet and 7 inches, providing flexibility in lifting heights and accommodating different load sizes.
Hoist Lift Speed: The hoist operates at a maximum speed of 26 feet per minute, ensuring efficient vertical movement of loads.
Hoist Motor: Powered by a 10.4 KW motor, the hoist delivers reliable lifting power for heavy loads, ensuring smooth and controlled operation.
Hoist Control: Utilizes closed-loop vector Variable Frequency Drive (VFD) control for precise and responsive hoist operation, enabling accurate load positioning and enhanced safety.
Trolley Speed: With a maximum trolley speed of 80 feet per minute, this crane facilitates swift horizontal movement of loads within the workspace.
Trolley Motor: Equipped with two motors, each rated at 0.55 KW, the trolley motor ensures consistent and reliable movement along the runway beams.
Trolley Control: Features sensorless vector VFD control for the trolley, ensuring accurate and responsive maneuvering, enhancing operational efficiency and safety.
Power Supply: Designed for electric power operation, compatible with 230VAC, 3-phase, 60Hz power supply, with a tolerance of ±5%, ensuring compatibility with standard power sources.
CMAA Class / Atmosphere / Location Class: Classified as CMAA Class D for standard weather-resistant service, suitable for outdoor installations. This crane is designed to withstand various weather conditions.
Trolley Gauge: Offers a trolley gauge of 84 inches, providing ample spacing between the runway beams for smooth and reliable trolley movement.
Approximate Weight: Weighing approximately 1900 lbs, this crane is designed for easy installation while maintaining structural integrity and reliability.

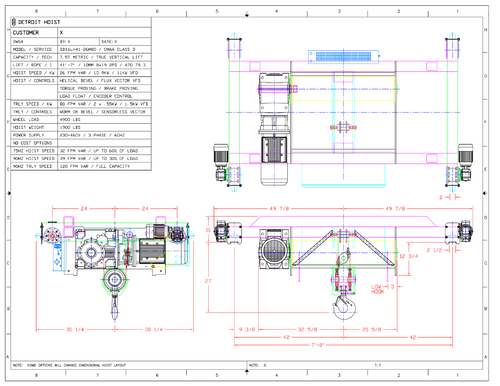

Model DB16LH41-26
Suspension / Mount Top Running Double Girder Low Profile
Capacity 8.25 Ton
Reeving | Lift 2 PD | 41'7"
Hoist Lift Speed 26.00 FPM Max
Hoist Motor 10.4 KW
Hoist Control Closedloop vector VFD control
Trolley Speed 80.00 FPM Max
Trolley Motor 2 @ .55 kw
Trolley Control Sensorless vector VFD control
Power Supply Electric | 230VAC3PH60HZ +5%
CMAA Class | Atmosphere | Location Class D | Standard | Weather Resistant
Trolley Gauge 84.0000"
Approximate Weight 1900.00 lbs
MODEL FEATURES
4pole, AC squirrel cage, inverter-rated hoist motor with brake.
True vertical lift and dual 4pole, AC squirrel cage inverter-rated trolley motors.
Rubber bumpers and drop lugs/rail sweeps.
Premium grade graphite ductile iron wheels and sheaves for durability.
UL508A c UL us listed industrial control panel with CSA Type 4, 4X enclosure.
Hoist closed loop flux vector drive with motor & brake proving and load floating at 0 Hz.
Hoist 0 hz speed control for precise positioning and stopping without motor brake fatigue.
Hoist 100% dynamic braking with resistor or regenerative converter.
Hoist overweight protection through frequency drive with 3% accuracy.
Trolley open loop frequency drive with dynamic braking.
Motor overload protection through frequency drives.
Adjustable upper and lower electronic encoder limits and secondary upper limit.
110 VAC control voltage (optional 24 VDC pushbutton control voltage).
90 Hz hoist speed up to 30% of rated load enable by request.
