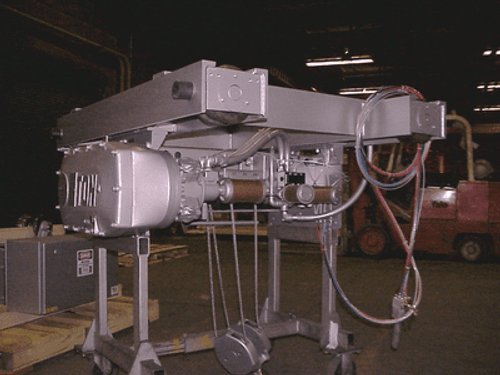

Top Running Double Girder Low Profile, Capacity: 8.25 Ton, Hoist Lift Speed: 26.00 FPM Max, Trolley Speed: 80.00 FPM Max, Trolley Gauge: 108.0000", DB16LH77-26, Detroit

Product Overview

Suspension / Mount: This crane boasts a top-running double girder low-profile suspension/mount. It's built tough to support your lifting needs while keeping a low profile, perfect for spaces with limited headroom.

Capacity: It can handle up to 8.25 tons of weight, making it a reliable choice for various lifting tasks, from moderate to hefty loads.

Reeving / Lift: With 2 part line reeving, it can lift loads up to 77 feet and 3 inches, giving you plenty of versatility for lifting to different heights.

Hoist Lift Speed: The hoist can zip along at a max speed of 26 feet per minute, ensuring swift vertical movement of loads.

Hoist Motor: Powered by a 10.4 KW motor, this crane's hoist delivers reliable lifting power for your heavier loads.

Hoist Control: It comes with closed-loop vector Variable Frequency Drive (VFD) control, providing precise and responsive hoist operation, which means accurate load positioning and enhanced safety.

Trolley Speed: With a maximum trolley speed of 80 feet per minute, this crane allows for quick horizontal movement of loads within your workspace.

Trolley Motor: The crane is equipped with two motors, each rated at 0.55 KW, to drive the trolley smoothly along the runway beams.

Trolley Control: Featuring sensorless vector VFD control, the trolley movement is accurate and responsive, ensuring efficient operation and safety.

Power Supply: Designed to run on electric power, compatible with 230VAC, 3-phase, 60Hz power supply, with a little wiggle room of ±5%.

CMAA Class / Atmosphere / Location Class: It's classified as CMAA Class D for standard weather-resistant service, making it suitable for outdoor installations, ready to withstand various weather conditions.

Trolley Gauge: Offers a trolley gauge of 108 inches, providing ample space between the runway beams for smooth and reliable trolley movement.

Approximate Weight: This crane weighs around 2100 lbs, making it manageable for installation while ensuring it's sturdy and reliable for your lifting needs.

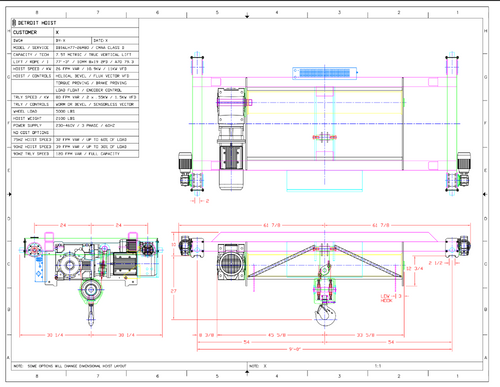

Model DB16LH77-26
Suspension / Mount Top Running Double Girder Low Profile
Capacity 8.25 Ton
Reeving | Lift 2 PD | 77'­3"
Hoist Lift Speed 26.00 FPM Max
Hoist Motor 10.4 KW
Hoist Control Closed­loop vector VFD control
Trolley Speed 80.00 FPM Max
Trolley Motor 2 @ .55 kw
Trolley Control Sensorless vector VFD control
Power Supply Electric | 230VAC­3PH­60HZ +­5%
CMAA Class | Atmosphere | Location Class D | Standard | Weather Resistant
Trolley Gauge 108.0000"
Approximate Weight 2100.00 lbs

MODEL FEATURES

4­pole, AC squirrel cage, inverter-rated hoist motor with brake.
True vertical lift and dual 4­pole, AC squirrel cage inverter-rated trolley motors.
Rubber bumpers and drop lugs/rail sweeps.
Premium grade graphite ductile iron wheels and sheaves for durability.
UL508A c UL us listed industrial control panel with CSA Type 4, 4X enclosure.
Hoist ­ closed loop flux vector drive with motor & brake proving and load floating at 0 Hz.
Hoist ­ 0 hz speed control for precise positioning and stopping without motor brake fatigue.
Hoist ­ 100% dynamic braking with resistor or regenerative converter.
Hoist ­ over­weight protection through frequency drive with 3% accuracy.
Trolley ­ open loop frequency drive with dynamic braking.
Motor overload protection through frequency drives.
Adjustable upper and lower electronic encoder limits and secondary upper limit.
110 VAC control voltage (optional 24 VDC pushbutton control voltage).
90 Hz hoist speed up to 30% of rated load enable by request.
