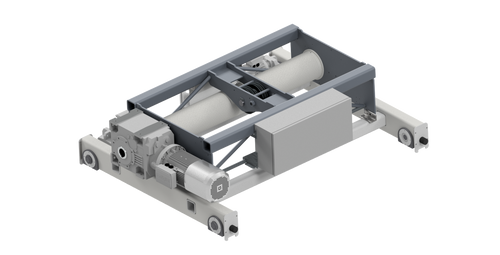

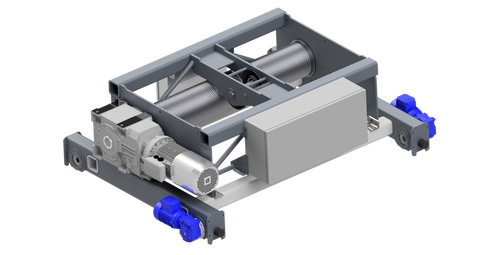

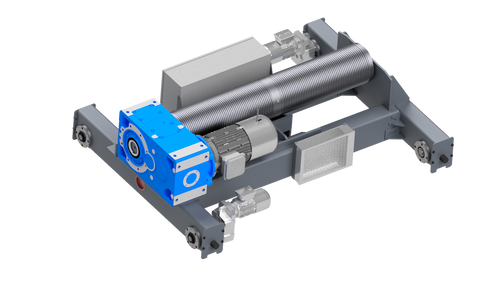

Top Running Double Girder, Capacity: 20.00 Ton, Hoist Lift Speed: 15.00 FPM Max, Trolley Speed: 80.00 FPM Max, Trolley Gauge: 96.0000", DRD40T46-15, Detroit

Product Overview

Type: It's one of those big double girder cranes, you know, the ones that can handle some serious weight.

Capacity: This bad boy can handle up to 20.00 tons of weight without breaking a sweat.

Reeving | Lift: It's got this 4-part reeving thing going on, giving it a lift height of 46 feet and 6 inches. So, if you need to lift something high, this crane's got you covered.

Hoist Lift Speed: With a hoist lift speed of 15.00 feet per minute (FPM), it's not the fastest thing out there, but it gets the job done without rushing things.

Hoist Motor: Powered by a 15.6 kW hoist motor, this crane packs a punch when it comes to lifting heavy loads.

Hoist Control: It's got this fancy closed-loop vector VFD control thingamajig that ensures smooth and precise lifting operations.

Trolley Speed: The trolley can zip around at speeds up to 80.00 FPM, making it quick and efficient when moving stuff across the shop floor.

Trolley Motor: The trolley's powered by two motors, each rated at 0.86 kW. They may not look like much, but they get the job done.

Trolley Control: With sensorless vector VFD control, the trolley moves smoothly and precisely, so you can position your loads with ease.

Power Supply: Runs on electric power, with a voltage rating of 460VAC, 3-phase, and a frequency of 60Hz. So, you won't need to worry about finding special power sources for it.

CMAA Class | Atmosphere | Location Class: It's built tough and weather-resistant, so you can use it indoors or outdoors without any worries.

Trolley Gauge: With a trolley gauge measuring 96.0000 inches, this crane's got a wide stance, ensuring stability when moving heavy loads.

Approximate Weight: Weighing in at around 3600.00 lbs, it's no lightweight, but that just means it's built sturdy and reliable for all your heavy lifting needs.

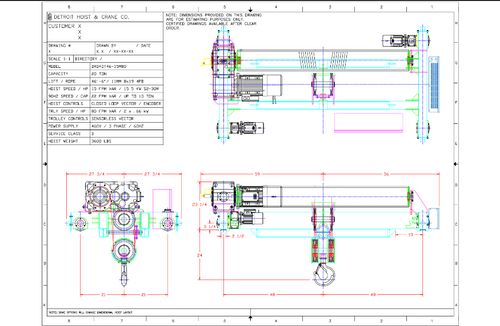

Model DRD40T46­-15
Suspension / Mount Top Running Double Girder
Capacity 20.00 Ton
Reeving | Lift 4 PD | 46'­6"
Hoist Lift Speed 15.00 FPM Max
Hoist Motor 15.6 KW
Hoist Control Closed­loop vector VFD control
Trolley Speed 80.00 FPM Max
Trolley Motor 2 @ .86 kw
Trolley Control Sensorless vector VFD control
Power Supply Electric | 460VAC­3PH­60HZ +­5%
CMAA Class | Atmosphere | Location Class D | Standard | Weather Resistant
Trolley Gauge 96.0000"
Approximate Weight 3600.00 lbs

MODEL FEATURES

4­pole, AC squirrel cage, inverter-rated hoist motor with brake.
True vertical lift and dual 4­pole, AC squirrel cage inverter-rated trolley motors.
Rubber bumpers and drop lugs/rail sweeps.
Premium grade graphite ductile iron wheels and sheaves for durability.
UL508A c UL us listed industrial control panel with CSA Type 4, 4X enclosure.
Hoist ­ closed loop flux vector drive with motor & brake proving and load floating at 0 Hz.
Hoist ­ 0 hz speed control for precise positioning and stopping without motor brake fatigue.
Hoist ­ 100% dynamic braking with resistor or regenerative converter.
Hoist ­ over­weight protection through frequency drive with 3% accuracy.
Trolley ­ open loop frequency drive with dynamic braking.
Motor overload protection through frequency drives.
Adjustable upper and lower electronic encoder limits and secondary upper limit.
110 VAC control voltage (optional 24 VDC pushbutton control voltage).
90 Hz hoist speed up to 30% of rated load enable by request.
