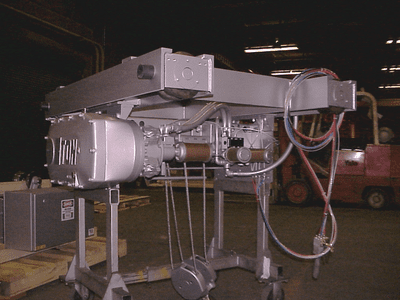

Top Running Double Girder Low Profile, Capacity: 20.00 Ton, Hoist Lift Speed: 12.00 FPM Max, Trolley Speed: 80.00 FPM Max, Trolley Gauge: 96.0000", DB40LH22-12, Detroit

Suspension / Mount: Designed with a top-running double girder low-profile suspension/mount, this configuration offers robust support for heavy lifting operations while maintaining a lower profile.

Capacity: With a lifting capacity of 20.00 tons, this crane is well-suited for handling heavy loads in various industrial applications.

Reeving / Lift: Equipped with 5 part line reeving, enabling a lift of 22'­4", providing flexibility to accommodate different lifting heights and load requirements.

Hoist Lift Speed: The crane's hoist operates at a maximum lift speed of 12.00 feet per minute (FPM), ensuring efficient and precise vertical movement of loads.

Hoist Motor: Powered by a 13.4 kW motor, the hoist delivers robust lifting performance, capable of handling heavy loads with precision and reliability.

Hoist Control: Equipped with closed-loop vector Variable Frequency Drive (VFD) control, the hoist operation is precise and smooth, enhancing safety and productivity in material handling tasks.

Trolley Speed: The crane features a maximum trolley speed of 80.00 FPM, facilitating swift and efficient horizontal movement of loads within the workspace.

Trolley Motor: Utilizing two motors, each rated at 0.86 kW, the crane's trolley system ensures consistent and reliable movement along the runway beams, contributing to smooth and precise load positioning.

Trolley Control: With sensorless vector Variable Frequency Drive (VFD) control, the crane provides accurate and responsive trolley maneuvering, allowing operators to maintain precise control over load movement, enhancing operational efficiency and safety.

Power Supply: Designed for electric power operation, the crane operates at 230VAC, 3-phase, 60Hz, with a tolerance of ±5%, ensuring compatibility with standard power supplies and reliable performance in various industrial environments.

CMAA Class / Atmosphere / Location Class: Classified as CMAA Class D for standard weather-resistant service, this crane is suitable for use in outdoor environments subject to weather conditions, ensuring durability and longevity.

Trolley Gauge: With a trolley gauge measuring 96.0000 inches, the crane offers ample spacing between the runway beams for smooth and reliable trolley movement.
