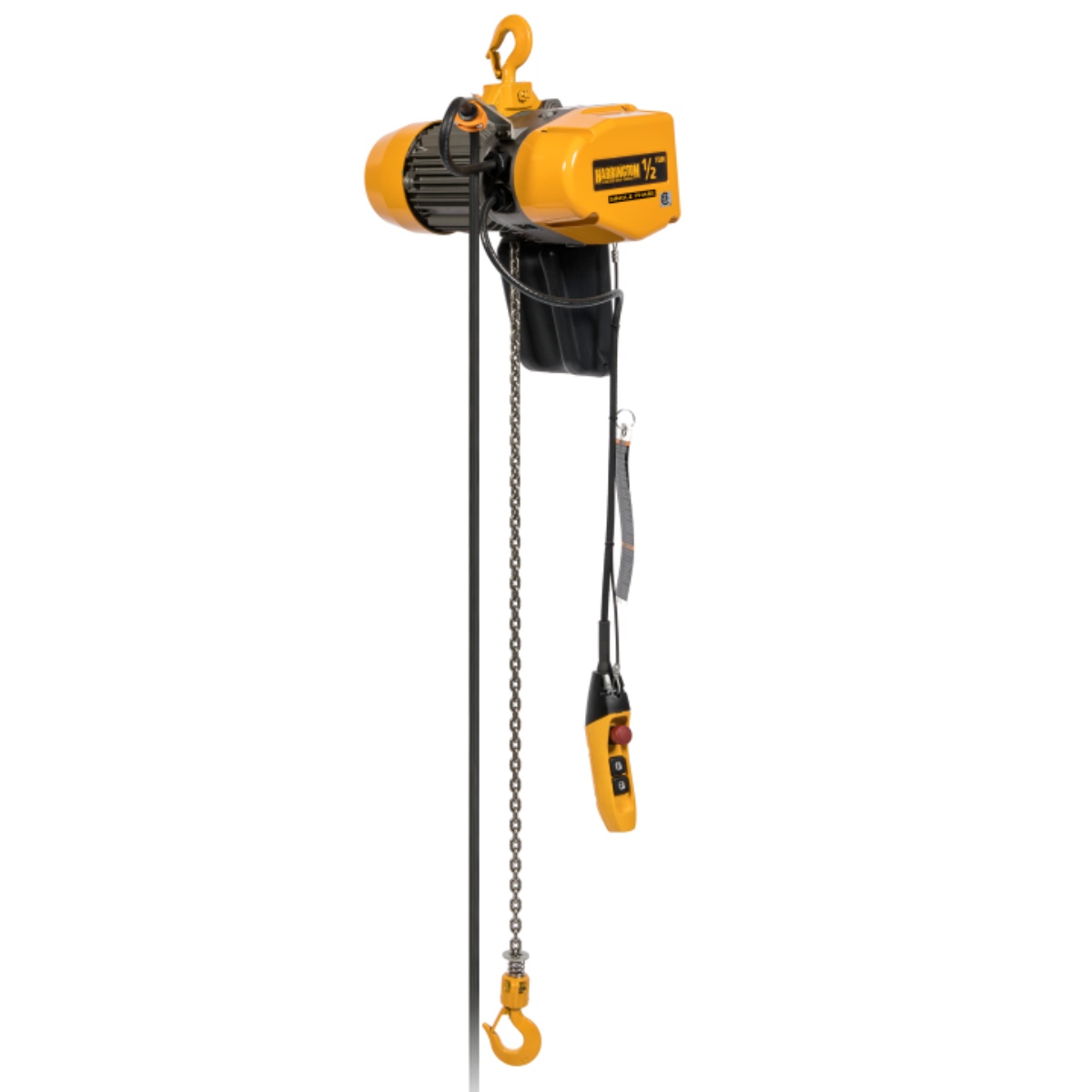

SEQ Electric Hoist Lift-Capacity 1/8 Tons EQ001SD Electric Hoist HARRINGTON

Write a Review
$2,703.75 - $2,959.23
SKU: SEQ001SD-10
Condition: New
Availability: In stock
Weight: 71.00 LBS
Shipping: Free Shipping
Part Number: SEQ001SD
Color: Yellow
Hoist Lift: 10, 15, 20
Product: Electric Chain Hoist, 250 lb, Hook Mounted-No Trolley, Yellow=Hoist Mount=Hook Mounted-No Trolley
Includes: Chain Container
Lift Speed: 56/9.3 fpm
Housing Width: 14 13/32 in
Manufacturers Warranty Length: 3 yr
Housing Depth: 9 7/64 in
Housing Length: 17 19/64 in
For Minimum Beam Flange Width: Not Applicable
For Maximum Beam Flange Width: Not Applicable
For Maximum Beam Height: Not Applicable
MFR Warranty Length: 3 yr
Body Width: 14 13/32 in
Body Depth: 9 1/8 in
For Minimum Beam Height: 15 in
Body Length: 17 5/16 in
Minimum Radius Curve: 10 in
Maximum Lifting Length: 20 ft
Controller Cord Length: 6 ft
Trolley Wheel Diameter: Not Applicable
Lifting Hook Opening Width: 1 3/32 in
Minimum Retracted Length: 17 5/16 in
Load Capacity: 250 lb
Minimum Between Hooks: 17 5/16 in
Motor HP: 0.67 hp
Phase: 1
Standards: ASME HST-4, C22.2 No.33/14-13/66, CSA, UL 508A
Voltage: 115V
Fits Brand: Harrington Hoists Inc
Lubrication: Oil Bath
Reeving: 1
Thermal Protection: Yes
Control Cord: 6 ft
Amps @ Low Volts: 10.8 A
Number of Speeds: 2
Trolley Configuration: Hook Mounted
Trolley Speed: Not Applicable
Features: No-Load High Speed, Self-Adjusting Maintenance-Free Brake, Unique Chain Guide, Variable Frequency Drive (VFD)
Lifting Hook Material: Carbon Steel
Includes Clutch: Clutch Included
Overload Protection Included: Yes
Brake Type: Pull Rotor
Chain Grade: Grade 80
Maximum Lift Speed: 56 fpm
Included Components: Chain Container, Pendant, Safety Latch Hook
Fixed Lift Speed: Not Applicable
Clutch Type: Friction
Minimum Lift Speed: 9.3 fpm
Pendant IP Rating: IP65
Chain Finish: Nickel Plated
Controls: Push Button Pendant=Mount Type=Hook Mounted-No Trolley
Starts and Stops per Hour: 120, 240
Duty Classification: H4
Maximum Pulling Capacity: Not Applicable
Number of Reeves: 1
Motor Horsepower: 5/8 hp
Headroom: 17 5/16 in
Includes Brake: Brake Included
For Outdoor Use: Yes
Hoist IP Rating: IP55
Lifting Hook Type: Swivel Hook with Safety Latch
Maximum Lifting Capacity: 250 lb
Current at Minimum Voltage: 0.458333333333333
Trolley Wheel Material: Not Applicable
Current at Maximum Voltage: 7.1 A
Body Finish: Epoxy Painted
Number of Load Chains: 1
Body Material: Aluminum
Trolley IP Rating: Not Applicable
Programmable: Programmable by Internal Controls
Adding to cart… The item has been added
SEQ Electric Hoist Lift-Capacity 1/8 Tons EQ001SD Electric Hoist HARRINGTON

SEQ Electric Hoist Lift-Capacity 1/8 Tons EQ001SD Electric Hoist HARRINGTON

$2,703.75 - $2,959.23

SEQ Electric Hoist Lift-Capacity 1/8 Tons EQ001SD Electric Hoist HARRINGTON

$2,703.75 - $2,959.23

Transform your lifting operations with the SEQ001SD-10 HARRINGTON Electric Hoist, a powerhouse designed for both medium and heavy-duty applications. Engineered for efficiency and reliability, this electric chain hoist offers a lift capacity of 1/8 tons with a remarkable 10, 15, 20 feet of vertical lift, making it ideal for a wide range of industrial tasks.

Installation and operation are straightforward, allowing you to integrate the SEQ001SD into your workflow with minimal disruption. The dual-speed variable frequency drive (VFD) control feature provides the flexibility to fine-tune lifting speeds based on your specific requirements. Whether you need a swift lift for time-sensitive tasks or a measured approach for precision handling, this hoist adapts seamlessly to your operational needs.

Crafted for durability, the SEQ001SD Electric Hoist is built to withstand the rigors of industrial environments, ensuring long-lasting performance even under demanding conditions. This robust construction not only enhances the hoist's lifespan but also gives users peace of mind when handling heavy loads.

The SEQ001SD is designed to elevate your productivity, making it indispensable for lifting machinery, components, or equipment with ease. Streamline your operations and eliminate the strain of manual lifting, transforming your workplace into a more efficient and safer environment.

With its combination of exceptional reliability, powerful performance, and user-friendly features, the SEQ001SD HARRINGTON Electric Hoist stands out as a trusted solution for all your lifting needs. Experience the benefits of advanced lifting technology today and revolutionize the way you approach heavy lifting tasks with the SEQ001SD.

Buyer must notify HHI in writing within sixty (60) days of discovery of any alleged defect, if within the applicable warranty period. All products sold by HHI are warranted to be free from defects in material and workmanship from date of shipment by HHI for the following periods: 1 year – Electric and Air Powered Hoists (excluding (N)ER2 Hoists and EQ/SEQ Hoists), Powered Trolleys, Powered Tiger Track Jibs and Gantries, Crane Components, Below the Hook Devices, Spare / Replacement Parts 2 years – Manual Hoists & Trolleys, Beam Clamps 3 years – (N)ER2 Hoists, EQ/SEQ Hoists, (T)EM/(T)SEM hoists, and RY Hoists 5 years – Manual Tiger Track Jibs and Gantries, Hoist Motor Brakes for EQ/SEQ, (T)EM/(T)SEM, and RY 10 years – (N)ER2 Brake, TNER Hoist Motor Brake The product must be used in accordance with manufacturer’s recommendations and must not have been subject to abuse, lack of maintenance, misuse, negligence, or unauthorized repairs or alterations. Should any defect in material or workmanship occur during the above time period in any product, as determined by HHI’s inspection of the product, HHI agrees, at its discretion, either to replace (not including installation) or repair the part or product free of charge. For customers in the U.S., delivery shall be made F.O.B. HHI’s place of business. For international customers, delivery shall be made FCA HHI place of business, United States of America (Incoterms 2010). No warranty claim will be honored without a valid proof of purchase. Customer must obtain a Return Goods Authorization as directed by HHI or its published repair center prior to shipping product for warranty evaluation. An explanation of the complaint must accompany the product. Product must be returned freight prepaid. Upon repair, the product will be covered for the remainder of the original warranty period. Replacement parts installed after the original warranty period will only be eligible for replacement (not including installation) for a period of one year from the installation date. If it is determined there is no defect, or that the defect resulted from causes not within the scope of HHI’s warranty, the customer will be responsible for the costs of returning the product. HHI DISCLAIMS ANY AND ALL OTHER WARRANTIES OF ANY KIND, EXPRESSED OR IMPLIED, AS TO THE PRODUCT’S MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. HHI WILL NOT BE LIABLE FOR DEATH, INJURIES TO PERSONS OR PROPERTY OR FOR INCIDENTAL, CONTINGENT, SPECIAL OR CONSEQUENTIAL DAMAGES, LOSS OR EXPENSE ARISING IN CONNECTION WITH THE USE OR MISUSE OF THE PRODUCTS, REGARDLESS OF WHETHER THE DAMAGE, LOSS OR EXPENSE RESULTS FROM ANY ACT OR FAILURE TO ACT BY HHI, WHETHER NEGLIGENT OR WILLFUL, OR FROM ANY OTHER CAUSE
