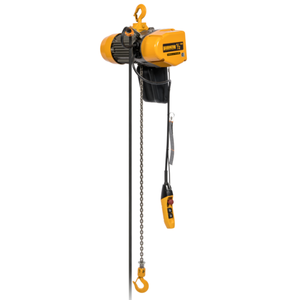

Harrington SEQ Series Single-Phase Hoist Dual Speed VFD - 1 Ton - 10 ft Lift

Write a Review
$3,375.42 - $3,666.23
SKU: SEQ010SD-10
Condition: New
Availability: Subject to Availability
Weight: 97.00 LBS
Shipping: Calculated at Checkout
Part Number: SEQ010SD
Color: Yellow
Hoist Lift: 10 ft
product: Electric Chain Hoist, 2,000 lb, Hook Mounted-No Trolley, Yellow Hoist Mount Hook Mounted-No Trolley
Includes: Chain Container
Lift Speed: 17/3.9 fpm
Housing Width: 15 29/32 in
Manufacturers Warranty Length: 3 yr
Housing Depth: 9 39/64 in
Housing Length: 20 45/64 in
For Minimum Beam Flange Width: Not Applicable
For Maximum Beam Flange Width: Not Applicable
For Maximum Beam Height: Not Applicable
MFR Warranty Length: 3 yr
Body Width: 15 29/32 in
Body Depth: 9 5/8 in
For Minimum Beam Height: 15 in
Body Length: 20 23/32 in
Minimum Radius Curve: 10 in
Controller Cord Length: 6 ft
Trolley Wheel Diameter: Not Applicable
Lifting Hook Opening Width: 1 3/16 in
Minimum Retracted Length: 20 11/16 in
Load Capacity: 1,000 - 2,499 lbs
Minimum Between Hooks: 17 5/16 in
Motor HP: 1.25 hp
Phase: 1
Standards: ASME HST-4, C22.2 No.33/14-13/66, CSA, UL 508A
Fits Brand: Harrington Hoists Inc
Lubrication: Oil Bath
Reeving: 1
Thermal Protection: Yes
Control Cord: 6 ft
Amps @ Low Volts: 19 A
Number of Speeds: 2
Trolley Configuration: Hook Mounted
Trolley Speed: Not Applicable
Features: No-Load High Speed, Self-Adjusting Maintenance-Free Brake, Unique Chain Guide, Variable Frequency Drive (VFD)
Lifting Hook Material: Carbon Steel
Includes Clutch: Clutch Included
Overload Protection Included: Yes
Brake Type: Pull Rotor
Chain Grade: Grade 80
Maximum Lift Speed: 17 fpm
Included Components: Chain Container, Pendant, Safety Latch Hook
Fixed Lift Speed: Not Applicable
Clutch Type: Friction
Minimum Lift Speed: 3.9 fpm
Pendant IP Rating: IP65
Chain Finish: Nickel Plated
Controls: Push Button Pendant, Mount Type: Hook Mounted-No Trolley
Starts and Stops per Hour: 120, 240
Duty Classification: H4
Maximum Pulling Capacity: Not Applicable
Number of Reeves: 1
Motor Horsepower: 1 1/4 hp
Headroom: 17 5/16 in
Includes Brake: Brake Included
For Outdoor Use: Yes
Hoist IP Rating: IP55
Lifting Hook Type: Swivel Hook with Safety Latch
Maximum Lifting Capacity: 2,000 lb
Current at Minimum Voltage: 19.5 A
Trolley Wheel Material: Not Applicable
Current at Maximum Voltage: 0
Body Finish: Epoxy Painted
Number of Load Chains: 1
Body Material: Aluminum
Trolley IP Rating: Not Applicable
Programmable: Programmable by Internal Controls
Suspension / Mounting: Hook
Control: Dual Speed
Capacity: 1,000 - 2,499 lbs
Lift: 10 ft
Voltage: 115/1/60
Adding to cart… The item has been added
Harrington SEQ Series Single-Phase Hoist Dual Speed VFD - 1 Ton - 10 ft Lift

Harrington SEQ Series Single-Phase Hoist Dual Speed VFD - 1 Ton - 10 ft Lift

$3,375.42 - $3,666.23

Harrington SEQ Series Single-Phase Hoist Dual Speed VFD - 1 Ton - 10 ft Lift

$3,375.42 - $3,666.23

Elevate your industrial lifting capabilities with the SEQ Electric Hoist EQ010SD, designed to meet the demands of medium to heavy-duty applications. With a robust lift capacity of 1 ton, this electric hoist is an indispensable tool for professionals in construction, manufacturing, and warehousing. The SEQ010SD is engineered with dual-speed Variable Frequency Drive (VFD) control, allowing for precise adjustments to lifting speeds. This capability not only enhances efficiency but also ensures safety, minimizing strain for both the operator and the hoist itself.

Constructed to endure the harsh conditions typical of industrial environments, the SEQ010SD is built with high-quality materials that guarantee long-lasting performance and reliability. Whether raising heavy materials on a construction site, maneuvering equipment in a factory, or managing inventory in a warehouse, this electric hoist performs consistently under pressure. Its robust design ensures that it can handle repetitive heavy lifting tasks with ease.

Installation is user-friendly, allowing for quick setup so that operations can commence without delay. The intuitive interface ensures that even those with limited experience can operate the hoist effectively, putting advanced lifting technology at your fingertips.

Investing in the SEQ010SD Electric Hoist not only streamlines lifting operations but also boosts overall productivity. HARRINGTON‚ commitment to superior quality is evident in every aspect of this product, making it a trustworthy addition to your industrial lifting solutions. Experience the difference that advanced engineering makes for your lifting tasks‚ choose the SEQ Electric Hoist EQ010SD for power, efficiency, and unmatched reliability.

All products sold by Harrington Hoists, Inc. (HHI) are warranted to be free from defects in material and workmanship from the date of shipment, with coverage periods varying by product type - 1 year for electric and air powered hoists (excluding (N)ER2 and EQ/SEQ hoists), powered trolleys, powered Tiger Track jibs and gantries, crane components, below-the-hook devices, and spare/replacement parts; 2 years for manual hoists and trolleys and beam clamps; 3 years for (N)ER2 hoists, EQ/SEQ hoists, (T)EM/(T)SEM hoists, and RY hoists; 5 years for manual Tiger Track jibs and gantries and hoist motor brakes for EQ/SEQ, (T)EM/(T)SEM, and RY; and 10 years for the (N)ER2 brake and TNER hoist motor brake - provided the buyer notifies HHI in writing within sixty (60) days of discovering any alleged defect and the product has been used according to manufacturer recommendations without abuse, lack of maintenance, misuse, negligence, or unauthorized repairs or alterations. If HHI's inspection confirms a defect in material or workmanship within the applicable warranty period, HHI will, at its discretion, repair or replace the part or product free of charge (not including installation), with delivery made F.O.B. HHI's place of business for U.S. customers or FCA HHI's U.S. location for international customers under Incoterms 2010; no warranty claim will be honored without valid proof of purchase, the customer must obtain a Return Goods Authorization before shipping the product freight-prepaid along with an explanation of the complaint, repaired products remain covered for the rest of the original warranty period, replacement parts installed after the original warranty period carry only a one-year replacement warranty (not including installation) from installation, and if no defect is found or the defect falls outside the warranty's scope, the customer is responsible for return shipping costs. HHI disclaims all other express or implied warranties, including merchantability or fitness for a particular purpose, and will not be liable for death, personal injury, property damage, or incidental, contingent, special, or consequential damages, losses, or expenses arising from the use or misuse of its products, regardless of whether such damage results from any act or failure to act by HHI, whether negligent, willful, or otherwise.
