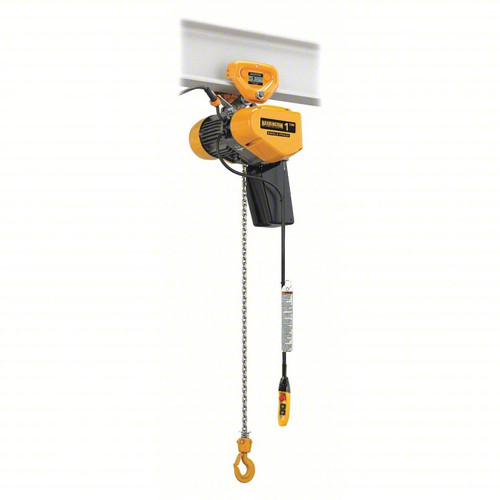

SEQG Electric Chain Hoist with Geared Trolley Lift-Capacity 1 Tons EQG010SD Electric Chain Hoist with Geared Trolley HARRINGTON

Write a Review
$3,782.17 - $4,162.45
SKU: SEQG010SD-10
Condition: New
Availability: In stock
Weight: 123.00 LBS
Shipping: Free Shipping
Part Number: SEQG010SD
Color: Yellow
Hoist Lift: 10, 15, 20
Product: Electric Chain Hoist, 2,000 lb, Geared Trolley, Yellow Hoist Mount Geared Trolley
Includes: Chain Container
Lift Speed: 17/3.9 fpm
Housing Width: 15 29/32 in
Manufacturers Warranty Length: 3 yr
Housing Depth: 9 39/64 in
Housing Length: 19 19/64 in
For Minimum Beam Flange Width: 2 1/4 in
For Maximum Beam Flange Width: 5 in
For Maximum Beam Height: Not Applicable
MFR Warranty Length: 3 yr
Body Width: 15 29/32 in
Body Depth: 9 5/8 in
For Minimum Beam Height: 3 9/16 in
Body Length: 19 5/16 in
Minimum Radius Curve: 51 1/4 in
Controller Cord Length: 6 ft
Trolley Wheel Diameter: 4 1/4 in
Lifting Hook Opening Width: 1 3/16 in
Minimum Retracted Length: 19 5/16 in
Load Capacity: 2,000 lb
Minimum Between Hooks: 19 5/16 in
Motor HP: 1.3 hp
Phase: 1
Standards: ASME HST-4, C22.2 No.33/14-13/66, CSA, UL 508A
Voltage: 115V
Fits Brand: Harrington Hoists Inc
Lubrication: Oil Bath
Reeving: 1
Thermal Protection: Yes
Control Cord: 6 ft
Amps @ Low Volts: 19 A
Number of Speeds: 2
Trolley Configuration: Geared Trolley
Trolley Speed: Not Applicable
Features: No-Load High Speed, Self-Adjusting Maintenance-Free Brake, Unique Chain Guide, Variable Frequency Drive (VFD)
Lifting Hook Material: Carbon Steel
Includes Clutch: Clutch Included
Overload Protection Included: Yes
Brake Type: Pull Rotor
Chain Grade: Grade 80
Maximum Lift Speed: 17 fpm
Included Components: Chain Container, Pendant, Safety Latch Hook
Fixed Lift Speed: Not Applicable
Clutch Type: Friction
Minimum Lift Speed: 3.9 fpm
Pendant IP Rating: IP65
Chain Finish: Nickel Plated
Controls: Push Button Pendant=Mount Type=Geared Trolley
Starts and Stops per Hour: 120, 240
Duty Classification: H4
Maximum Pulling Capacity: Not Applicable
Number of Reeves: 1
Motor Horsepower: 1 1/4 hp
Headroom: 19 5/16 in
Includes Brake: Brake Included
For Outdoor Use: Yes
Hoist IP Rating: IP55
Lifting Hook Type: Swivel Hook with Safety Latch
Maximum Lifting Capacity: 2,000 lb
Current at Minimum Voltage: 19.5 A
Trolley Wheel Material: Steel
Current at Maximum Voltage: 0
Body Finish: Epoxy Painted
Number of Load Chains: 1
Body Material: Aluminum
Trolley IP Rating: Not Applicable
Programmable: Programmable by Internal Controls
Adding to cart… The item has been added
SEQG Electric Chain Hoist with Geared Trolley Lift-Capacity 1 Tons EQG010SD Electric Chain Hoist with Geared Trolley HARRINGTON

SEQG Electric Chain Hoist with Geared Trolley Lift-Capacity 1 Tons EQG010SD Electric Chain Hoist with Geared Trolley HARRINGTON

$3,782.17 - $4,162.45

SEQG Electric Chain Hoist with Geared Trolley Lift-Capacity 1 Tons EQG010SD Electric Chain Hoist with Geared Trolley HARRINGTON

$3,782.17 - $4,162.45

Transform your heavy lifting tasks with the SEQG010SD HARRINGTON Electric Chain Hoist featuring a Geared Trolley. Designed for industrial applications, this robust hoist is capable of safely maneuvering loads weighing up to 1 ton. Engineered for efficiency, the dual-speed operation and variable frequency drive control enable precise control during both lifting and lowering. This means that even the heaviest loads can be handled smoothly, enhancing overall productivity in any work environment.

The integration of the GT geared trolley not only improves mobility but also ensures a seamless transport experience along the track. This feature is crucial for tasks that require frequent load adjustments, as it makes repositioning straightforward and safe. Safety remains paramount in the design; with adjustable upper and lower limit switches and overload protection, the SEQG010SD stands out as a reliable option for those prioritizing safe operations.

Constructed to endure the rigors of various industrial settings, this electric chain hoist is built for longevity and reliability. Its durable design means it can withstand heavy use in manufacturing, construction, and logistics environments without compromising performance.

Additionally, the thoughtful incorporation of advanced technology allows operators to perform their duties with ease and confidence, presenting a strong advantage over manual hoisting methods. Elevate your lifting capabilities and enhance workplace efficiency with the SEQG010SD HARRINGTON Electric Chain Hoist with Geared Trolley. This exceptional piece of equipment is poised to elevate your operations to new heights while ensuring safety and reliability every step of the way.

Buyer must notify HHI in writing within sixty (60) days of discovery of any alleged defect, if within the applicable warranty period. All products sold by HHI are warranted to be free from defects in material and workmanship from date of shipment by HHI for the following periods: 1 year – Electric and Air Powered Hoists (excluding (N)ER2 Hoists and EQ/SEQ Hoists), Powered Trolleys, Powered Tiger Track Jibs and Gantries, Crane Components, Below the Hook Devices, Spare / Replacement Parts 2 years – Manual Hoists & Trolleys, Beam Clamps 3 years – (N)ER2 Hoists, EQ/SEQ Hoists, (T)EM/(T)SEM hoists, and RY Hoists 5 years – Manual Tiger Track Jibs and Gantries, Hoist Motor Brakes for EQ/SEQ, (T)EM/(T)SEM, and RY 10 years – (N)ER2 Brake, TNER Hoist Motor Brake The product must be used in accordance with manufacturer’s recommendations and must not have been subject to abuse, lack of maintenance, misuse, negligence, or unauthorized repairs or alterations. Should any defect in material or workmanship occur during the above time period in any product, as determined by HHI’s inspection of the product, HHI agrees, at its discretion, either to replace (not including installation) or repair the part or product free of charge. For customers in the U.S., delivery shall be made F.O.B. HHI’s place of business. For international customers, delivery shall be made FCA HHI place of business, United States of America (Incoterms 2010). No warranty claim will be honored without a valid proof of purchase. Customer must obtain a Return Goods Authorization as directed by HHI or its published repair center prior to shipping product for warranty evaluation. An explanation of the complaint must accompany the product. Product must be returned freight prepaid. Upon repair, the product will be covered for the remainder of the original warranty period. Replacement parts installed after the original warranty period will only be eligible for replacement (not including installation) for a period of one year from the installation date. If it is determined there is no defect, or that the defect resulted from causes not within the scope of HHI’s warranty, the customer will be responsible for the costs of returning the product. HHI DISCLAIMS ANY AND ALL OTHER WARRANTIES OF ANY KIND, EXPRESSED OR IMPLIED, AS TO THE PRODUCT’S MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. HHI WILL NOT BE LIABLE FOR DEATH, INJURIES TO PERSONS OR PROPERTY OR FOR INCIDENTAL, CONTINGENT, SPECIAL OR CONSEQUENTIAL DAMAGES, LOSS OR EXPENSE ARISING IN CONNECTION WITH THE USE OR MISUSE OF THE PRODUCTS, REGARDLESS OF WHETHER THE DAMAGE, LOSS OR EXPENSE RESULTS FROM ANY ACT OR FAILURE TO ACT BY HHI, WHETHER NEGLIGENT OR WILLFUL, OR FROM ANY OTHER CAUSE.
