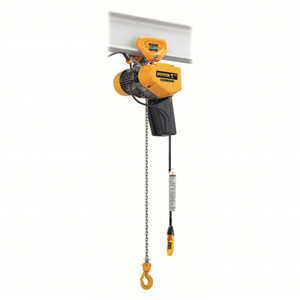

SEQG Electric Chain Hoist with Geared Trolley Lift-Capacity 1/4 Ton EQG003SD Electric Chain Hoist with Geared Trolley HARRINGTON

Write a Review
$3,258.49 - $3,603.44
SKU: SEQG003SD-10
Condition: New
Availability: In stock
Weight: 99.00 LBS
Shipping: Free Shipping
Part Number: SEQG003SD
Color: Yellow
Hoist Lift: 10, 15, 20
Product: Electric Chain Hoist, 500 lb., Geared Trolley, Yellow Hoist Mount Geared Trolley
Includes: Chain Container
Lift Speed: 33/5.5 fpm
Housing Width: 14 13/32 in
Manufacturers Warranty Length: 3 yr
Housing Depth: 9 7/64 in
Housing Length: 16 45/64 in
For Minimum Beam Flange Width: 2 1/4 in
For Maximum Beam Flange Width: 5 in
For Maximum Beam Height: Not Applicable
MFR Warranty Length: 3 yr
Body Width: 14 13/32 in
Body Depth: 9 1/8 in
For Minimum Beam Height: 3 in
Body Length: 16 23/32 in
Minimum Radius Curve: 51 1/4 in
Controller Cord Length: 6 ft
Trolley Wheel Diameter: 4 1/4 in
Lifting Hook Opening Width: 1 3/32 in
Minimum Retracted Length: 16 11/16 in
Load Capacity: 500 lb.
Minimum Between Hooks: 16 7/16 in
Motor HP: 0.67 hp
Phase: 1
Standards: ASME HST-4, C22.2 No.33/14-13/66, CSA, UL 508A
Voltage: 115V
Fits Brand: Harrington Hoists Inc
Lubrication: Oil Bath
Clutch: Friction
Reeving: 1
Thermal Protection: Yes
Control Cord: 6 ft
Amps @ Low Volts: 12.3 A
Number of Speeds: 2
Trolley Configuration: Geared Trolley
Trolley Speed: Not Applicable
Features: No-Load High Speed, Self-Adjusting Maintenance-Free Brake, Unique Chain Guide, Variable Frequency Drive (VFD)
Lifting Hook Material: Carbon Steel
Includes Clutch: Clutch Included
Overload Protection Included: Yes
Brake Type: Pull Rotor
Chain Grade: Grade 80
Maximum Lift Speed: 33 fpm
Included Components: Chain Container, Pendant, Safety Latch Hook
Fixed Lift Speed: Not Applicable
Clutch Type: Friction
Minimum Lift Speed: 5.5 fpm
Pendant IP Rating: IP65
Chain Finish: Nickel Plated
Controls: Push Button Pendant=Mount Type=Geared Trolley
Starts and Stops per Hour: 120, 240
Duty Classification: H4
Maximum Pulling Capacity: Not Applicable
Number of Reeves: 1
Motor Horsepower: 5/8 hp
Headroom: 16 13/32 in
Includes Brake: Brake Included
For Outdoor Use: Yes
Hoist IP Rating: IP55
Lifting Hook Type: Swivel Hook with Safety Latch
Maximum Lifting Capacity: 500 lb
Current at Minimum Voltage: 12.7 A
Trolley Wheel Material: Steel
Current at Maximum Voltage: 7.2 A
Body Finish: Epoxy Painted
Number of Load Chains: 1
Body Material: Aluminum
Trolley IP Rating: Not Applicable
Programmable: Programmable by Internal Controls
Adding to cart… The item has been added
SEQG Electric Chain Hoist with Geared Trolley Lift-Capacity 1/4 Ton EQG003SD Electric Chain Hoist with Geared Trolley HARRINGTON

SEQG Electric Chain Hoist with Geared Trolley Lift-Capacity 1/4 Ton EQG003SD Electric Chain Hoist with Geared Trolley HARRINGTON

$3,258.49 - $3,603.44

SEQG Electric Chain Hoist with Geared Trolley Lift-Capacity 1/4 Ton EQG003SD Electric Chain Hoist with Geared Trolley HARRINGTON

$3,258.49 - $3,603.44

The SEQG003SD HARRINGTON SEQG Electric Chain Hoist with Geared Trolley offers unparalleled lifting capabilities for your industrial applications. With a robust lift capacity of 1/4 ton, this electric hoist is engineered to tackle even the most challenging lifting tasks with ease and precision. Designed for efficiency, the hoist features dual-speed VFD control, allowing operators to switch between slow, meticulous lifts and faster operations, catering to various lifting scenarios seamlessly.

Rugged and durable, the SEQG003SD is built to withstand the rigors of demanding industrial environments. Its high-quality construction ensures that it can handle heavy loads while maintaining reliable performance, making it a long-lasting investment for your operation. The included geared trolley enhances its functionality, providing smooth and precise navigation along beams. This not only increases operational efficiency but also minimizes the risk of accidents, ensuring a safer working environment.

Ideal for use in manufacturing, construction, and beyond, the SEQG Electric Chain Hoist is a transformative tool for enhancing productivity. Its powerful performance streamlines lifting processes, allowing workers to complete tasks more quickly and efficiently. Whether you are lifting heavy machinery, materials, or equipment, this hoist combines strength with ease of use, empowering operators to accomplish their goals with confidence.

Embrace the future of lifting with the SEQG003SD HARRINGTON Electric Chain Hoist. Its reliable performance and intelligent design will elevate your operational capabilities, allowing your team to work smarter and achieve greater results. Experience the benefits of advanced lifting technology and take your productivity to unprecedented levels with this exceptional electric chain hoist and geared trolley combination.

Buyer must notify HHI in writing within sixty (60) days of discovery of any alleged defect, if within the applicable warranty period. All products sold by HHI are warranted to be free from defects in material and workmanship from date of shipment by HHI for the following periods: 1 year – Electric and Air Powered Hoists (excluding (N)ER2 Hoists and EQ/SEQ Hoists), Powered Trolleys, Powered Tiger Track Jibs and Gantries, Crane Components, Below the Hook Devices, Spare / Replacement Parts 2 years – Manual Hoists & Trolleys, Beam Clamps 3 years – (N)ER2 Hoists, EQ/SEQ Hoists, (T)EM/(T)SEM hoists, and RY Hoists 5 years – Manual Tiger Track Jibs and Gantries, Hoist Motor Brakes for EQ/SEQ, (T)EM/(T)SEM, and RY 10 years – (N)ER2 Brake, TNER Hoist Motor Brake The product must be used in accordance with manufacturer’s recommendations and must not have been subject to abuse, lack of maintenance, misuse, negligence, or unauthorized repairs or alterations. Should any defect in material or workmanship occur during the above time period in any product, as determined by HHI’s inspection of the product, HHI agrees, at its discretion, either to replace (not including installation) or repair the part or product free of charge. For customers in the U.S., delivery shall be made F.O.B. HHI’s place of business. For international customers, delivery shall be made FCA HHI place of business, United States of America (Incoterms 2010). No warranty claim will be honored without a valid proof of purchase. Customer must obtain a Return Goods Authorization as directed by HHI or its published repair center prior to shipping product for warranty evaluation. An explanation of the complaint must accompany the product. Product must be returned freight prepaid. Upon repair, the product will be covered for the remainder of the original warranty period. Replacement parts installed after the original warranty period will only be eligible for replacement (not including installation) for a period of one year from the installation date. If it is determined there is no defect, or that the defect resulted from causes not within the scope of HHI’s warranty, the customer will be responsible for the costs of returning the product. HHI DISCLAIMS ANY AND ALL OTHER WARRANTIES OF ANY KIND, EXPRESSED OR IMPLIED, AS TO THE PRODUCT’S MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. HHI WILL NOT BE LIABLE FOR DEATH, INJURIES TO PERSONS OR PROPERTY OR FOR INCIDENTAL, CONTINGENT, SPECIAL OR CONSEQUENTIAL DAMAGES, LOSS OR EXPENSE ARISING IN CONNECTION WITH THE USE OR MISUSE OF THE PRODUCTS, REGARDLESS OF WHETHER THE DAMAGE, LOSS OR EXPENSE RESULTS FROM ANY ACT OR FAILURE TO ACT BY HHI, WHETHER NEGLIGENT OR WILLFUL, OR FROM ANY OTHER CAUSE.
