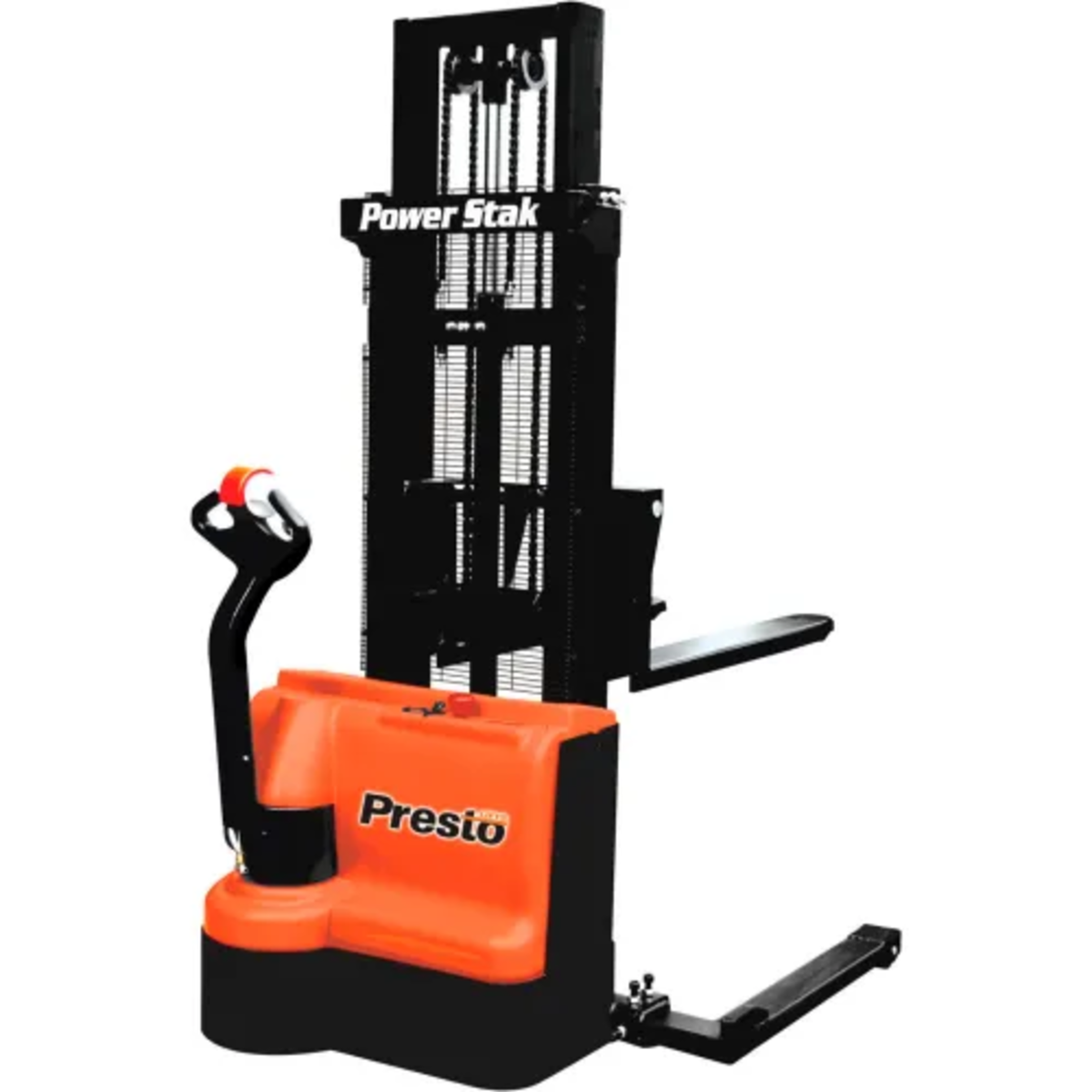

When you need to reach the tallest racking in your facility, the Presto Lifts PPS2200-150AS Power Stacker gives you a 150 inch maximum lift height with fully powered lift and drive, so your team is not manually pushing loads to upper storage or fighting a hand operated mast. This model tops out the PPS2200 series and is built for warehouses and distribution centers where vertical storage space is at a premium.

A 2.0 KW lift motor raises loads at 14-3/4 feet per minute loaded and 29-1/2 feet per minute unloaded, while a 0.7 KW drive motor moves the unit at up to 3.4 mph loaded and 3.6 mph unloaded. Because capacity naturally decreases as lift height increases, this stacker is rated for 2200 lbs up to 84 inches, 1800 lbs up to 101 inches, 1500 lbs up to 125 inches, and 1200 lbs at the full 150 inch height, so you can plan your heaviest loads for the lower shelves and lighter loads for the top. The adjustable straddle legs run 38 to 50 inches on the inside and the forks adjust from 12-1/2 to 27 inches, letting the unit handle a wide variety of pallets and skids, including closed bottom styles.

Two 12V, 120Ah maintenance free batteries power the unit through a full shift, and a 15 amp, 120V integral charger keeps recharging simple with no separate charging equipment. A battery discharge gauge keeps run time visible at all times. The ergonomic handle controls speed and lift with either hand and includes a belly button auto reverse safety switch that stops and reverses the unit on contact. Turtle speed further slows travel for careful positioning in tight aisles, and a tight 57 inch turning radius helps the stacker maneuver in confined spaces despite its extended reach.

Keep in mind that due to its extended mast height, this unit will not pass through a standard 80 inch doorway, and delivery requires a loading dock. With a lowered fork height of just 2-1/2 inches for easy pallet pickup, the PPS2200-150AS is the right choice when your storage racking outgrows a standard stacker and you need dependable powered lift all the way to the top.

Product Info:
•  Load Capacity: 2200 lbs at 24 inch load center, derating to 1800 lbs at 101 inches, 1500 lbs at 125 inches, and 1200 lbs at 150 inches
•  Lift Height: 150 inches
•  Lowered Fork Height: 2-1/2 inches
•  Overall Length: 72 inches
•  Overall Width: 46 to 58 inches
•  Straddle Leg Width, I.D. and O.D.: 38 to 50 inches I.D., 46 to 58 inches O.D.
•  Fork Width, O.D.: 12-1/2 to 27 inches, adjustable
•  Fork Size: 42 inches long by 6 inches wide
•  Turning Radius: 57 inches
•  Travel Speed: 3.4 mph loaded, 3.6 mph unloaded
•  Lift Speed: 14-3/4 ft per minute loaded, 29-1/2 ft per minute unloaded
•  Lift Motor: 2.0 KW
•  Drive Motor: 0.7 KW
•  Batteries: (2) 12V, 120Ah maintenance free, with battery discharge gauge
•  Charger: Integral 15 amp, 120V charger
•  Safety Features: Turtle speed control and belly button auto reversing switch
•  Delivery Note: Requires loading dock for delivery, will not fit through a standard 80 inch doorway
