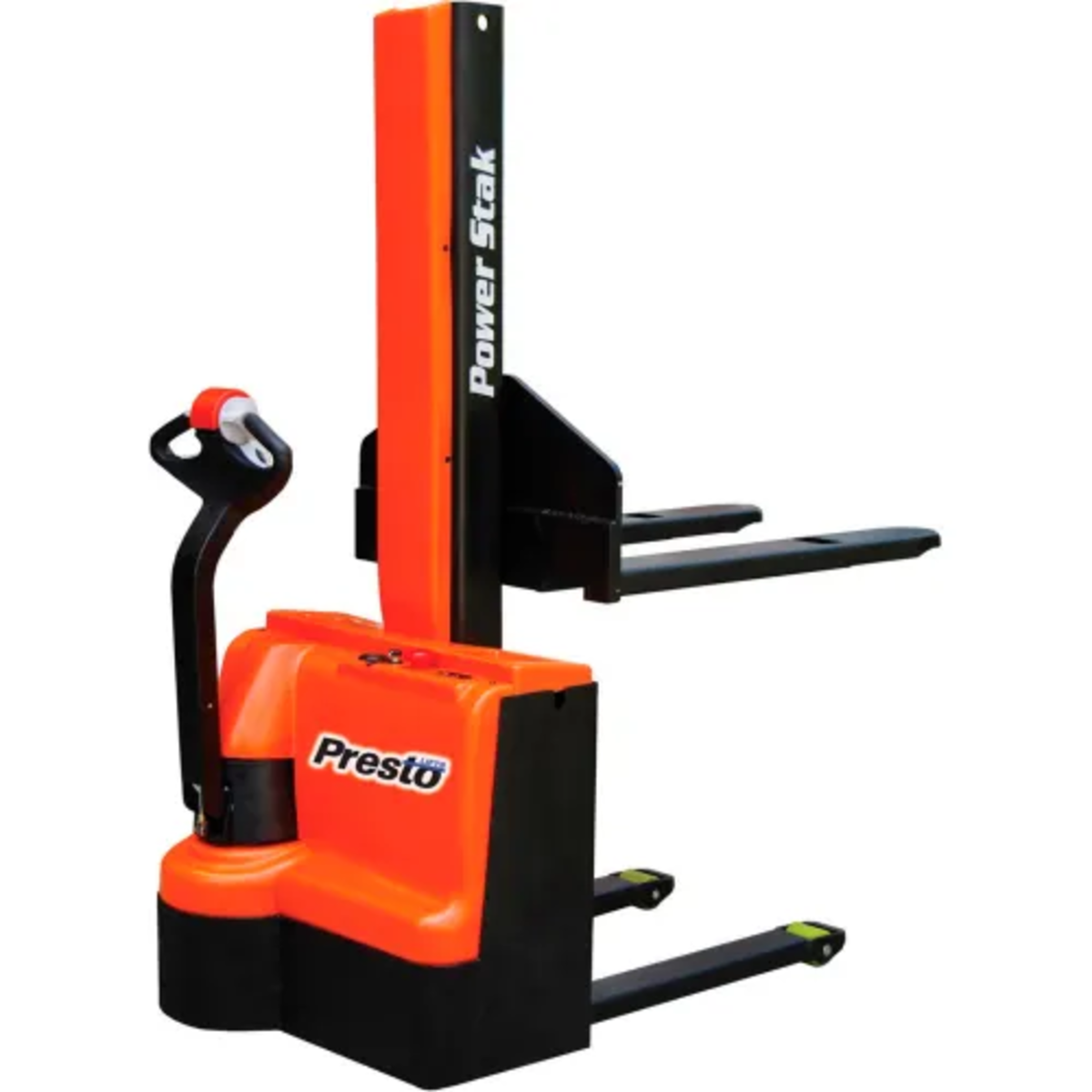

Presto Lifts PPS Series Power Stacker Narrow Fork Over 2200lb 21 Forks 62 Lift
When your pallets and skids have open bottoms and you do not need the extra footprint of a straddle base, the Presto Lifts PPS2200-62NFO-21 Power Stacker gives you a fully powered fork over stacker that is narrower, lighter, and easier to store than a straddle model, while still lifting up to 2200 lbs to a 62 inch height.
The fork over design places the forks directly beneath the mast rather than out in front on straddle legs, which shrinks the overall footprint to just 32 inches wide and 66 inches long, a real advantage in narrow storage rooms, light assembly cells, or retail backrooms where floor space is limited. With 21 inch overall fork width and a 24 inch load center, this model is sized for standard pallets and skids with open bottoms or center runners.
Both lift and travel are fully powered, driven by a 1 KW AC drive motor with an AC controller and CAN Bus system for smooth, precise control at any speed. Polyurethane drive and load wheels keep the ride quiet and protect finished floors from marking. Turtle speed automatically reduces travel speed for careful maneuvering in congested areas, and the belly bump auto reversing switch reverses the unit immediately if it contacts an obstruction, adding a layer of protection for both the operator and nearby equipment.
The ergonomic handle puts pin code access and a high visibility battery status indicator within easy reach, so only trained staff can operate the machine and everyone can see remaining charge at a glance. An integral 115V charger means you recharge from any standard outlet without extra hardware. With a low fork height of just 3-1/2 inches for easy pickup and a shipping weight of 1080 lbs, this narrow fork over stacker is built for operations that need powered lifting in a compact, easy to maneuver package.
Product Info:
• Load Capacity: 2200 lbs at 24 inch load center
• Lift Height: 62 inches
• Lowered Fork Height: 3-1/2 inches
• Overall Dimensions (H x W x L): 78 x 32 x 66 inches
• Overall Fork Width: 21 inches
• Base Width, I.D.: 8-1/2 inches
• Shipping Weight: 1080 lbs
• Configuration: Fork over style for open bottom pallets and skids
• Mast Style: Narrow mast for improved operator visibility
• Drive System: 1 KW AC drive motor with AC controller and CAN Bus system
• Wheels: Polyurethane drive wheel and polyurethane load wheels
• Safety Features: Turtle speed control and belly bump auto reversing switch
• Operator Handle: Ergonomic handle with pin code access and battery status indicator
• Charger: Integral 115V charger
