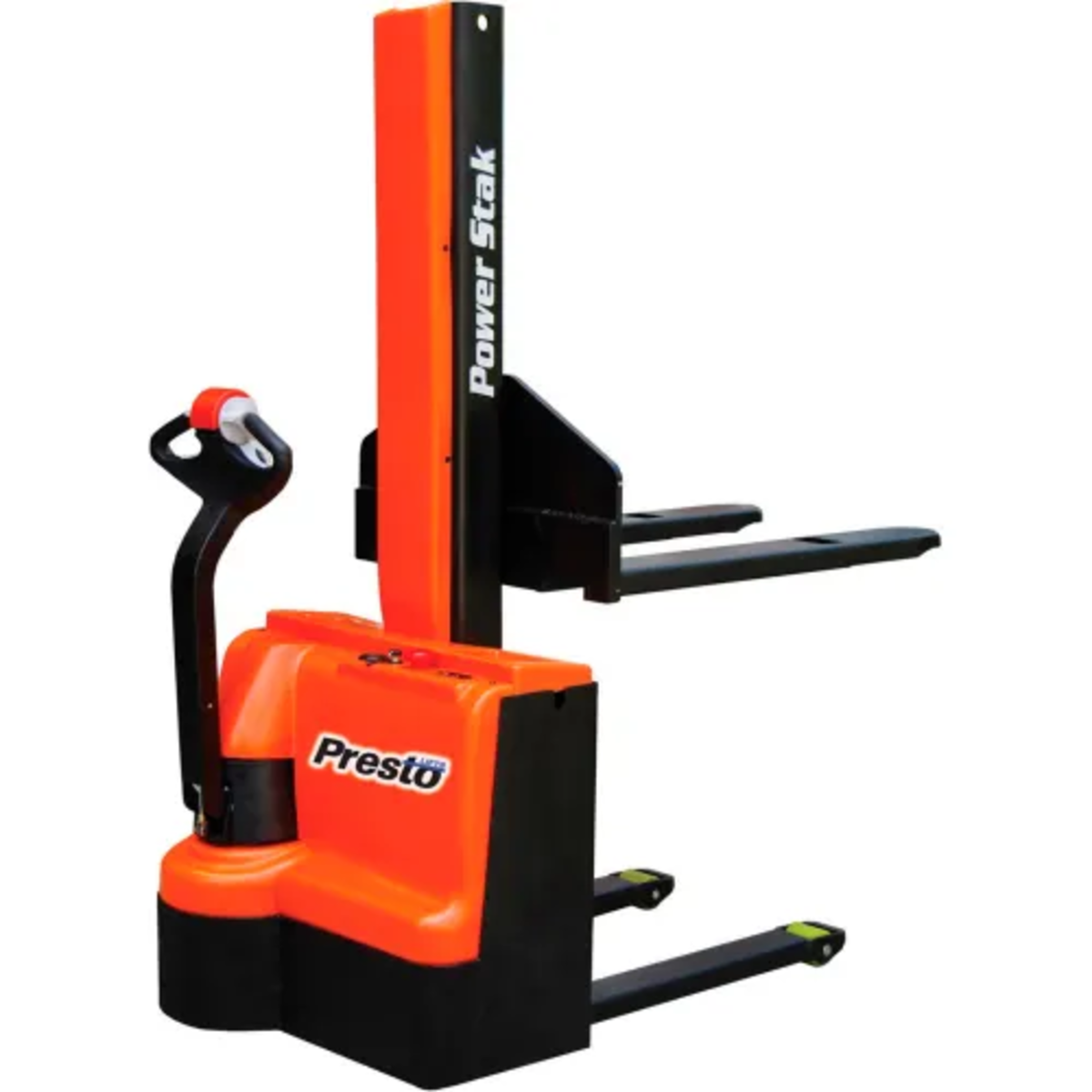

PPS2200-62NFO-27 – A fully powered, narrow-aisle stacker designed for smooth, quiet, and efficient pallet handling. The 27-inch fork-over design provides greater load stability and maneuverability in compact spaces.

Product Description

The PPS2200-62NFO-27 from the PPS 2200 Series is the ultimate narrow-aisle solution for efficient, low-maintenance, and safe material handling. Designed to deliver precision and performance, this fully powered electric stacker combines compact engineering with operator comfort, making it ideal for warehouses, manufacturing facilities, and retail stockrooms where space is limited.

Built for productivity, this model features a 27-inch fork-over design that offers superior stability when handling standard open-bottom pallets. The fork-over layout ensures smoother pallet engagement, better visibility, and a smaller turning radius—allowing operators to navigate tight aisles and confined areas with ease. With a rated capacity of approximately 2,200 lbs (1,000 kg) and a 62-inch lifting height, it delivers the power and reach needed for most light-to-medium stacking tasks without compromising balance or control.

The PPS2200-62NFO-27 is powered by a robust 24 V DC system with dual batteries and an onboard charger, providing long-lasting performance and convenient recharging between shifts. Its fully electric lift and drive eliminate manual strain, while quiet operation makes it ideal for indoor use in noise-sensitive environments.

Operator safety and comfort are at the core of its design. The intuitive control handle integrates lift/lower switches, traction controls, and a safety-reverse belly switch to prevent accidental entrapment. Additional features such as a key lockout switch, emergency stop button, battery level indicator, and hour meter help ensure dependable and secure operation.

Durable construction, low-maintenance components, and smooth polyurethane wheels reduce wear and floor marking while enhancing maneuverability. Whether moving palletized goods in a small warehouse or restocking shelves in a retail backroom, the PPS2200-62NFO-27 combines smart engineering with operator-friendly functionality—helping you move more efficiently and safely every day.

Specifications

• Model / SKU: PPS2200-62NFO-27
• Capacity: 2,200 lbs (1,000 kg)
• Load Center: 24 inches
• Lift Height: 62 inches (raised fork height)
• Lowered Fork Height: Approximately 2 ¾ inches
• Fork Design: 27-inch fork-over (for open-bottom pallets)
• Fork Length: 42 inches
• Drive & Lift System: Fully electric (DC motorized traction and lift)
• Power Source: 24 V DC system with onboard charger (2 × 12 V batteries)
• Overall Width: Narrow-aisle configuration for tight warehouse spaces
• Turning Radius: Approximately 54 inches for compact maneuvering
• Wheel Type: Polyurethane drive and load wheels for quiet, smooth travel
• Controls: Key switch, lift/lower buttons, traction control, hour meter, and battery gauge
• Safety Features: Auto-reverse belly switch, emergency stop, key lockout, low-voltage cut-off
• Noise Level: Low noise for indoor and warehouse use
• Approximate Weight: 1,000–1,300 lbs (depending on configuration)
• Finish: Durable powder-coated frame for corrosion and impact resistance
• Recommended Applications: Narrow aisles, small warehouses, loading docks, production lines, and stockrooms
