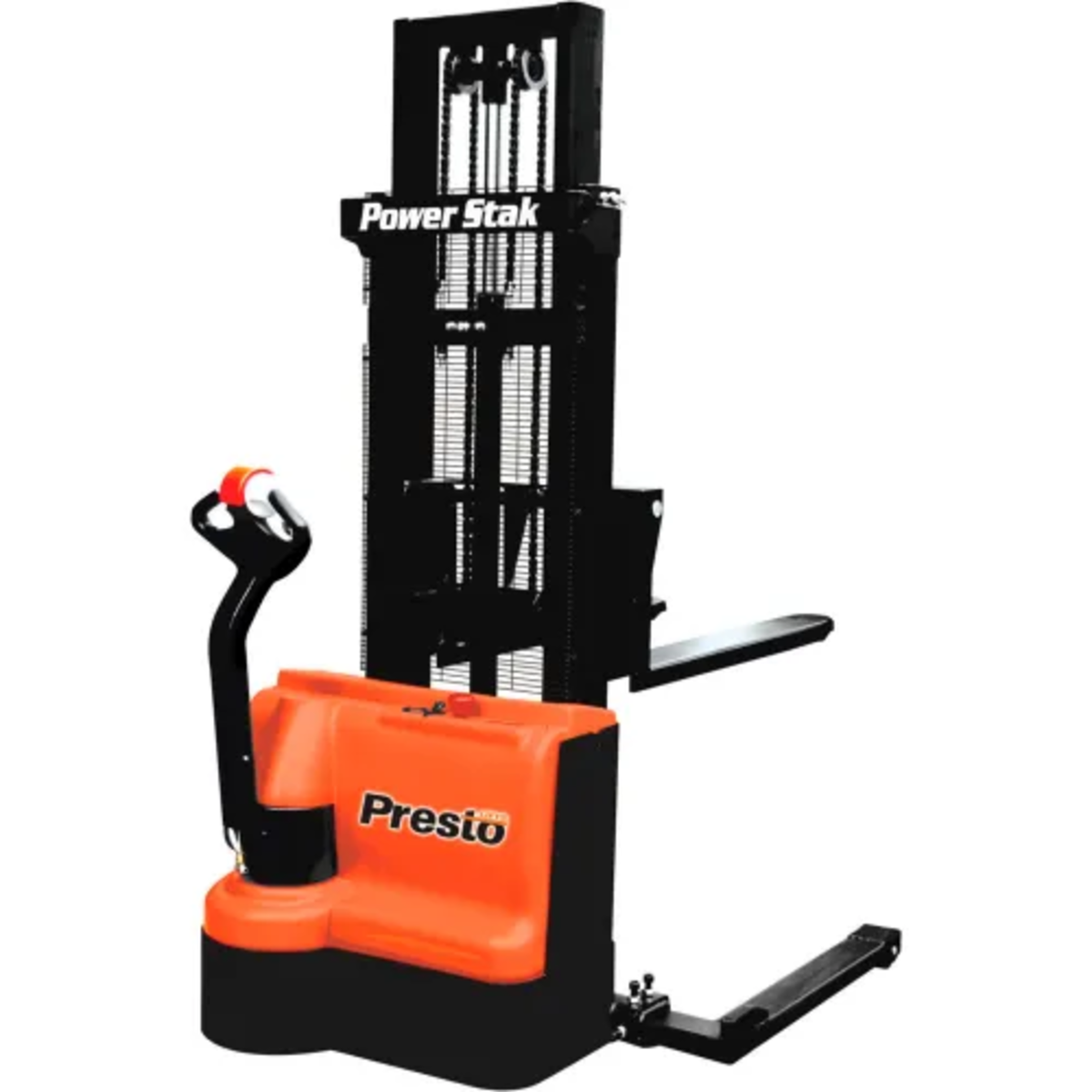

PPS2200-125AS – A heavy-duty, fully powered straddle stacker with a wide mast and extended 125-inch lift height. Built for stable, high-reach pallet handling in tight warehouse or production environments.

Product Description

The PPS2200-125AS from the PPS 2200 Series is a robust fully powered straddle stacker engineered for high-reach applications where stability, performance, and safety are critical. Featuring a 125-inch lifting height and a 2,200 lb (1,000 kg) load capacity, this model provides the power and reach necessary for stacking heavy pallets and positioning loads efficiently in multi-level storage environments.

The adjustable straddle base allows for handling of closed-bottom pallets, skids, and irregular loads, offering exceptional flexibility across diverse material handling operations. Its wide-view mast enhances operator visibility while maintaining structural integrity during elevated lifts. The ergonomic tiller handle offers smooth and precise control of all travel, lift, and lower functions, ensuring effortless operation even in tight spaces.

Powered by a 24 V DC electric drive and lift system, the PPS2200-125AS combines strength with efficiency. The maintenance-free batteries and onboard charger enable convenient plug-in charging, reducing downtime and maintenance costs. Quiet and emission-free, this stacker is ideal for indoor warehouse use, manufacturing plants, or distribution centers where noise and air quality standards are a concern.

Safety remains a top priority. This model features an emergency stop button, belly reverse safety switch, and key lockout to prevent unauthorized operation. A battery discharge indicator and low-voltage protection system ensure consistent and reliable performance. Its polyurethane drive and load wheels minimize floor wear and noise, while the heavy-duty steel frame guarantees long-term durability in demanding industrial environments.

Whether you’re moving palletized materials to high racks, loading shelves, or positioning goods for assembly, the PPS2200-125AS provides the strength, reach, and precision needed for professional material handling. It’s the dependable choice for facilities seeking an efficient, high-lift stacker that delivers superior maneuverability and long-lasting value.

Specifications

• Model / SKU: PPS2200-125AS
• Capacity: 2,200 lbs (1,000 kg)
• Load Center: 24 inches
• Lift Height: 125 inches (raised fork height)
• Lowered Fork Height: Approximately 2 ¾ inches
• Fork Design: Adjustable straddle base for closed-bottom pallets and skids
• Fork Length: 42 inches
• Mast Type: Two-stage wide-view mast for enhanced visibility and balance
• Drive & Lift System: Fully electric (DC-powered traction and lift motors)
• Power Source: 24 V DC battery system with onboard automatic charger
• Batteries: Dual 12 V maintenance-free batteries
• Overall Width: Designed for narrow aisles with wide straddle leg stability
• Turning Radius: Approximately 55 inches for tight-area operation
• Wheel Type: Polyurethane drive and load wheels for quiet, smooth travel
• Control Handle: Ergonomic multi-function tiller with speed and lift/lower controls
• Safety Features: Emergency stop, belly reverse switch, key lockout, low-voltage cutoff, battery indicator
• Construction: Heavy-duty steel frame with powder-coated finish for corrosion resistance
• Noise Level: Low-noise operation for indoor and warehouse applications
