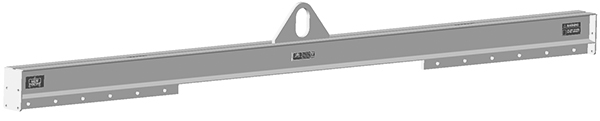

The Machining & Welding 20 FT-25 FT Low Hr Adj Length is built for lifts where headroom is tight and load length varies. It adjusts across a 20 to 25 foot range and carries a 2,000 pound working load limit.

Riggers commonly use this style of beam for spreading sling angles on long or awkward loads while keeping the total headroom used by the rigging as small as possible.

Adjustment holes are spaced along the beam so you can lock in the exact length needed for the load, with a locking pin holding the setting under load.

Keeping the sling angle close to vertical protects both the load and the rigging, and an adjustable length beam makes that easier across varying load sizes.

From production floors to rail yards to municipal utility crews, this style of equipment gets used wherever a load needs to move safely between two points. Standardizing on purpose-built lifting equipment also makes training new operators easier, since the rigging setup stays consistent from lift to lift instead of changing based on whatever hardware happens to be nearby.

Before putting any lifting equipment into service, verify it matches your hoist or crane setup and confirm the rated capacity covers your heaviest expected load with margin to spare. Routine inspection of welds, pins, and connection hardware helps catch wear before it becomes a safety issue. Keep a simple inspection log if your facility does not already have one, since tracking wear over time makes it easier to plan replacement before a part actually fails in use.

Durability matters as much as initial capacity when choosing rigging equipment, since hardware that wears unevenly or corrodes quickly ends up costing more over its service life. Choosing components built to recognized manufacturing standards is one of the simplest ways to avoid that added cost down the road.

See the specifications below for the exact numbers you will want to check before ordering.

Add the Machining & Welding 20 FT-25 FT Low Hr Adj Length to your rigging inventory and stop turning away lifts that do not fit a fixed-length beam.

Product Info:
•  Working Load Limit: 2,000 lbs
•  Adjustable Length Range: 20 ft to 25 ft
•  Profile: Low headroom design
•  Frame Material: Structural steel
•  Shipping Weight: 1365 lbs
