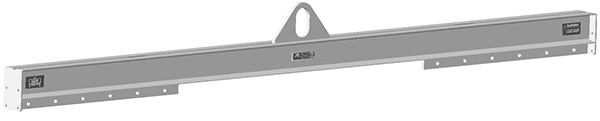

The Machining & Welding 20 FT-25 FT Low Hr Adj Length is built for lifts where headroom is tight and load length varies. It adjusts across a 20 to 25 foot range and carries a 60,000 pound working load limit.

Riggers commonly use this style of beam for spreading sling angles on long or awkward loads while keeping the total headroom used by the rigging as small as possible.

The beam is fabricated from structural steel with a telescoping or pinned adjustment mechanism, so length changes are made with a pin rather than tools or cutting.

A low headroom, adjustable length beam gives you the flexibility of several fixed-length beams in a single piece of equipment.

Equipment like this shows up across a wide range of industries, from steel fabrication and machine shops to warehousing, construction, and vehicle service centers. Anywhere crews need to move a load overhead in a controlled, repeatable way, a purpose-built lift beam or crane keeps the job safer and faster than improvised rigging. Once a facility standardizes on the right lifting equipment for its typical loads, operators spend less time rigging and more time actually getting work done.

Before putting any lifting equipment into service, verify it matches your hoist or crane setup and confirm the rated capacity covers your heaviest expected load with margin to spare. Routine inspection of welds, pins, and connection hardware helps catch wear before it becomes a safety issue. Keep a simple inspection log if your facility does not already have one, since tracking wear over time makes it easier to plan replacement before a part actually fails in use.

Durability matters as much as initial capacity when choosing rigging equipment, since hardware that wears unevenly or corrodes quickly ends up costing more over its service life. Choosing components built to recognized manufacturing standards is one of the simplest ways to avoid that added cost down the road.

The full spec sheet is below, covering capacity, dimensions, and construction details at a glance.

The Machining & Welding 20 FT-25 FT Low Hr Adj Length keeps your options open on both load length and overhead clearance, in a single piece of equipment.

Product Info:
•  Working Load Limit: 60,000 lbs
•  Adjustable Length Range: 20 ft to 25 ft
•  Profile: Low headroom design
•  Frame Material: Structural steel
•  Shipping Weight: 4535 lbs
