When your application calls for solid state switching rather than mechanical relays, the InMotion K Series HV-K200 System delivers one motion, one step control built specifically for specialized equipment that benefits from MOSFET based outputs. This system is a strong fit for PLC integrated control setups where a synchronous digital output is required.

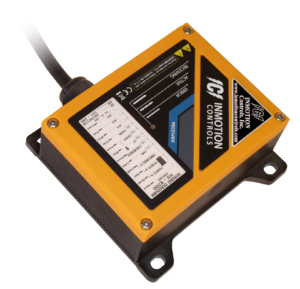

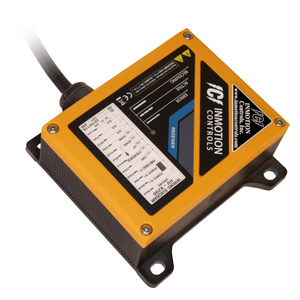

The receiving unit uses solid state relays rated up to 7.5 amps DC, giving you a fast switching, low maintenance output that works well alongside programmable logic controllers. A synchronous output makes this system especially suited to PLC control applications where timing and signal consistency matter. The receiving unit is compact, operates on 12 to 24 volts DC, and pairs with a Standard K Series transmitter that communicates on the 433 megahertz band with 4 FSK modulation, giving you a working range of approximately 300 feet, or 100 meters.

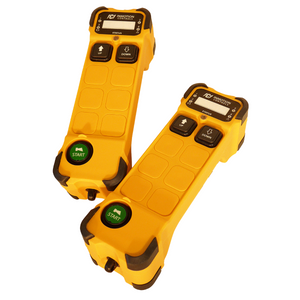

Both the transmitter and receiving unit carry an IP65 protection rating and are built from PA6 material reinforced with 30 percent glass fiber, so the system holds up to dust, moisture, and daily industrial use. The transmitter runs on two standard 1.5 volt AA batteries, keeping replacement parts simple and widely available.

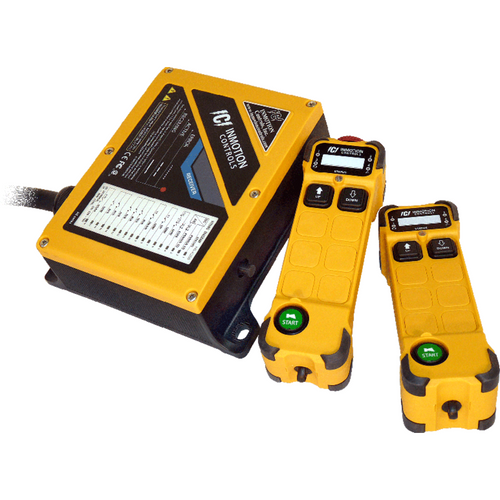

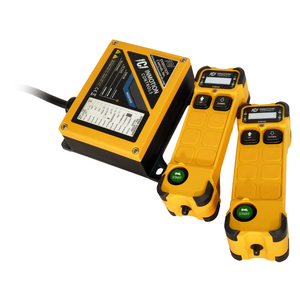

Every HV-K200 System includes one receiving unit, two transmitters with legend sets, batteries, mounting hardware, and installation instructions, giving you a complete package ready for installation. If your equipment needs a compact, low voltage, solid state controlled single motion system, particularly one that will interface with a PLC, the HV-K200 is built for that exact application.

Product Info:
•  Motion configuration: 1 motion, 1 step control
•  Output type: solid state relays, MOSFET, up to 7.5 amps DC
•  Frequency: 433 megahertz
•  Modulation: 4 FSK
•  Operating range: 300 feet, approximately 100 meters
•  Transmitter power: two 1.5 volt AA batteries
•  Transmitter dimensions: approximately 193 by 57 by 51 millimeters
•  Receiving unit power: 12 to 24 volts DC
•  Receiving unit dimensions: approximately 142 by 141 by 58.5 millimeters
•  Protection rating: IP65
•  Housing material: PA6, 30 percent glass filled
•  Included: receiving unit, two transmitters with legend sets, batteries, mounting hardware, installation instructions
