For dual function equipment that needs solid state MOSFET switching rather than mechanical relays, the InMotion K Series HV-K400 System provides two motion, one step control built for specialized applications, particularly those that integrate with a programmable logic controller. This system pairs proven K Series reliability with an output style suited to modern automated systems.

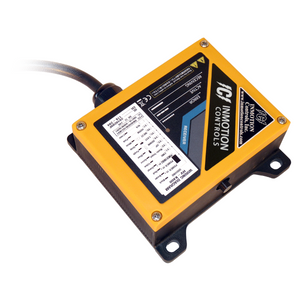

The receiving unit is built with solid state relays rated up to 7.5 amps DC, giving you fast, low maintenance switching for two coordinated motions. A synchronous output supports PLC control applications where consistent signal timing is important, and the compact receiving unit operates on 12 to 24 volts DC, making it easy to integrate into control panels with limited space. The transmitter communicates over the 433 megahertz band using 4 FSK modulation, providing a working range of approximately 300 feet, or 100 meters.

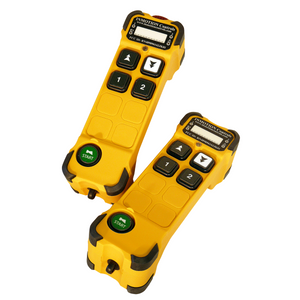

Both the transmitter and receiving unit carry an IP65 protection rating and are constructed from PA6 material reinforced with 30 percent glass fiber, giving the system the durability to handle regular industrial use. The transmitter runs on two standard 1.5 volt AA batteries, so replacements are easy to find and simple to install.

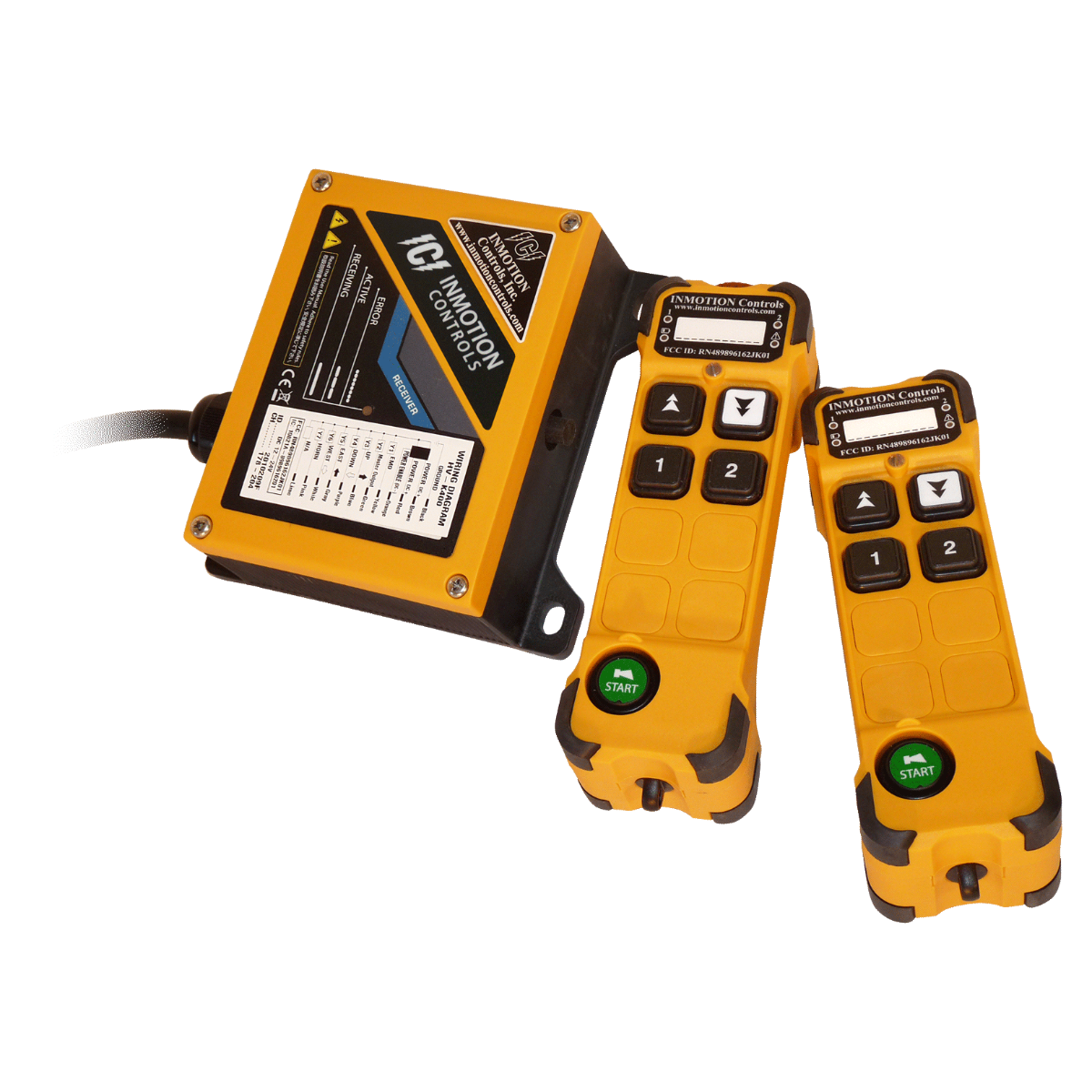

Every HV-K400 System includes one receiving unit, two transmitters with legend sets, batteries, mounting hardware, and installation instructions, providing a complete, ready to install package. If your dual function equipment or monorail hoist and trolley application calls for compact, low voltage, PLC friendly control, the HV-K400 is built for that exact need.

Product Info:
•  Motion configuration: 2 motion, 1 step control
•  Output type: solid state relays, MOSFET, up to 7.5 amps DC
•  Frequency: 433 megahertz
•  Modulation: 4 FSK
•  Operating range: 300 feet, approximately 100 meters
•  Transmitter power: two 1.5 volt AA batteries
•  Transmitter dimensions: approximately 193 by 57 by 51 millimeters
•  Receiving unit power: 12 to 24 volts DC
•  Receiving unit dimensions: approximately 142 by 141 by 58.5 millimeters
•  Protection rating: IP65
•  Housing material: PA6, 30 percent glass filled
•  Included: receiving unit, two transmitters with legend sets, batteries, mounting hardware, installation instructions
